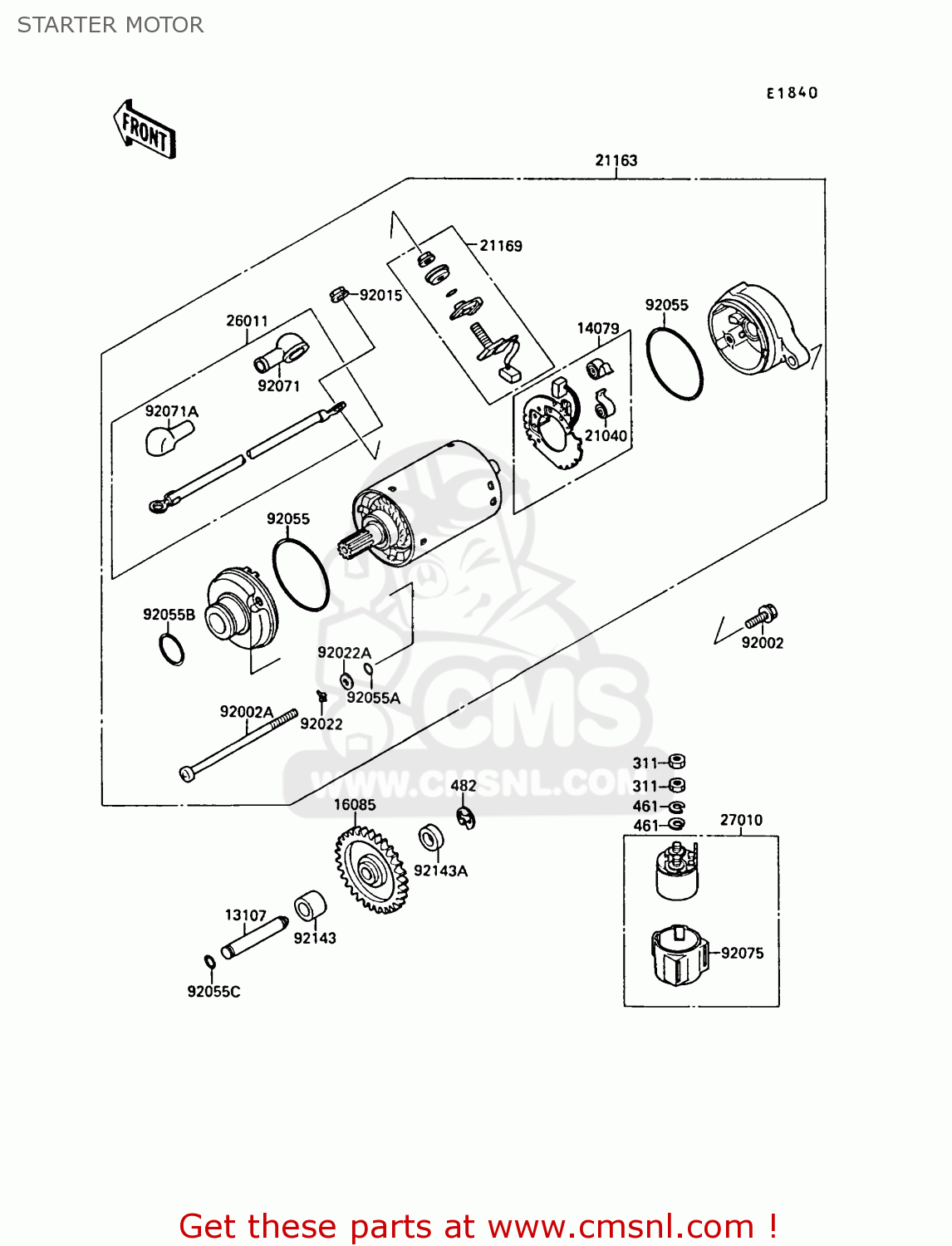

STARTER MOTOR

ref

part #

description

quantity

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

482

482K9000
ref: 482

CIRCLIP-TYPE-E,9MM

€ 2.50

13107

131071187
ref: 13107

SHAFT,IDLE GEAR

€ 12.00

14079

140791056
ref: 14079

HOLDER-ASSY,CARBON BR

€ 31.50

16085

160851104
ref: 16085

GEAR,IDLE

€ 90.50

21040

210401051
ref: 21040

SPRING-BRUSH

€ 1.50

21163

211631094
ref: 21163

STARTER-ELECTRIC

€ 457.00

21169

211691058
ref: 21169

TERMINAL,STARTER

€ 44.00

26011

260111378
ref: 26011

WIRE-LEAD,STARTER MOT

€ 35.00

27010

270101209
ref: 27010

SWITCH,MAGNETIC

€ 110.50

92002

920011947
ref: 92002

BOLT,6X20

€ 3.00

92002A

920021841
ref: 92002A

BOLT

€ 8.00

92015

920151623
ref: 92015

NUT

€ 3.00

92022

920221833
ref: 92022

WASHER

€ 1.50

92022A

920221834
ref: 92022A

WASHER

€ 2.00

92055

920551260
ref: 92055

RING-O,62MM

€ 7.50

92055A

920551261
ref: 92055A

RING-O,4.5MM

€ 2.00

92055B

920551262
ref: 92055B

RING-O,24.4X3.1

€ 8.50

92055C

920551355
ref: 92055C

RING-O,9.5X1.5

€ 2.50

92071

920711120
ref: 92071

GROMMET,STARTER TERMI

€ 8.50

92071A

920711121
ref: 92071A

GROMMET,TERMINAL

€ 8.00

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

92143

921431030
ref: 92143

COLLAR,12.1X20X14.5

€ 4.50

92143A

921431031
ref: 92143A

COLLAR,12.1X20X6.5

€ 4.50

all assemblies
