REAR HUB

ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

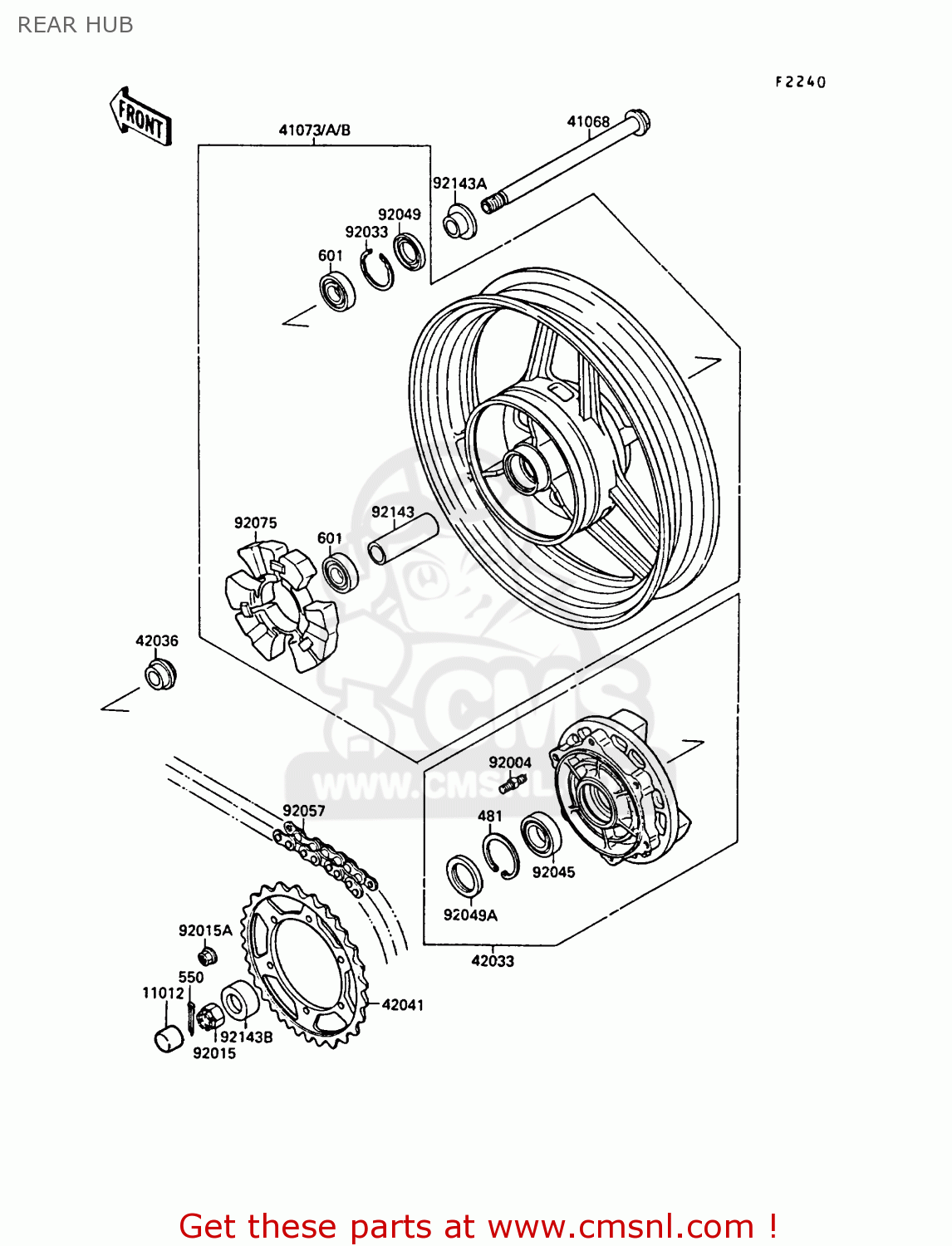

Rear hub diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

REAR HUB ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
REAR HUB ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
REAR HUB ZX750F3 GPX750R 1989 EUROPE FR UK AR NR
prices are in EUR
ref
part #
description
quantity
481
481J5500
ref: 481
CIRCLIP
€ 6.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
601B6204UU
€ 28.00
41068
410681234
ref: 41068
AXLE,RR
410681234
€ 65.50
41073A
410731345T6
ref: 41073A
AREUNRUK
WHEEL-ASSY,RR,WHITE N
€ 678.50
41073B
410731345X4
ref: 41073B
WHEEL-ASSY,RR,F.RED
410731345X4
€ 646.00
42033
420331122
ref: 42033
COUPLING-ASSY,RR HUB
€ 205.00
42036
420361197
ref: 42036
SLEEVE,L=29
420361197
€ 15.50
42041
420411278
ref: 42041
SPROCKET-HUB
€ 64.50
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
42045018
ref: 92015
NUT,18MM
42045018
€ 7.50
92015A
920151502
ref: 92015A
NUT,FLANGED,10MM
920151502
€ 7.00
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92045
920451196
ref: 92045
BEARING-BALL,#7006
920451196
€ 58.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92049A
920491263
ref: 92049A
SEAL-OIL,PJN40556
920491263
€ 12.50
92057
920571221
ref: 92057
CHAIN,DRIVE,EK530MVOX
920571221
€ 142.50
92075
920751908
ref: 92075
DAMPER,REAR HUB SHOCK
920751908
€ 55.00
92143
921431034
ref: 92143
COLLAR,20.2X29X116
€ 28.50
92143A
921431042
ref: 92143A
COLLAR,L=23
921431042
€ 19.50
92143B
921431094
ref: 92143B
COLLAR,REAR AXLE,L=14
921431094
€ 20.00
