CYLINDER/PISTON(S)

ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

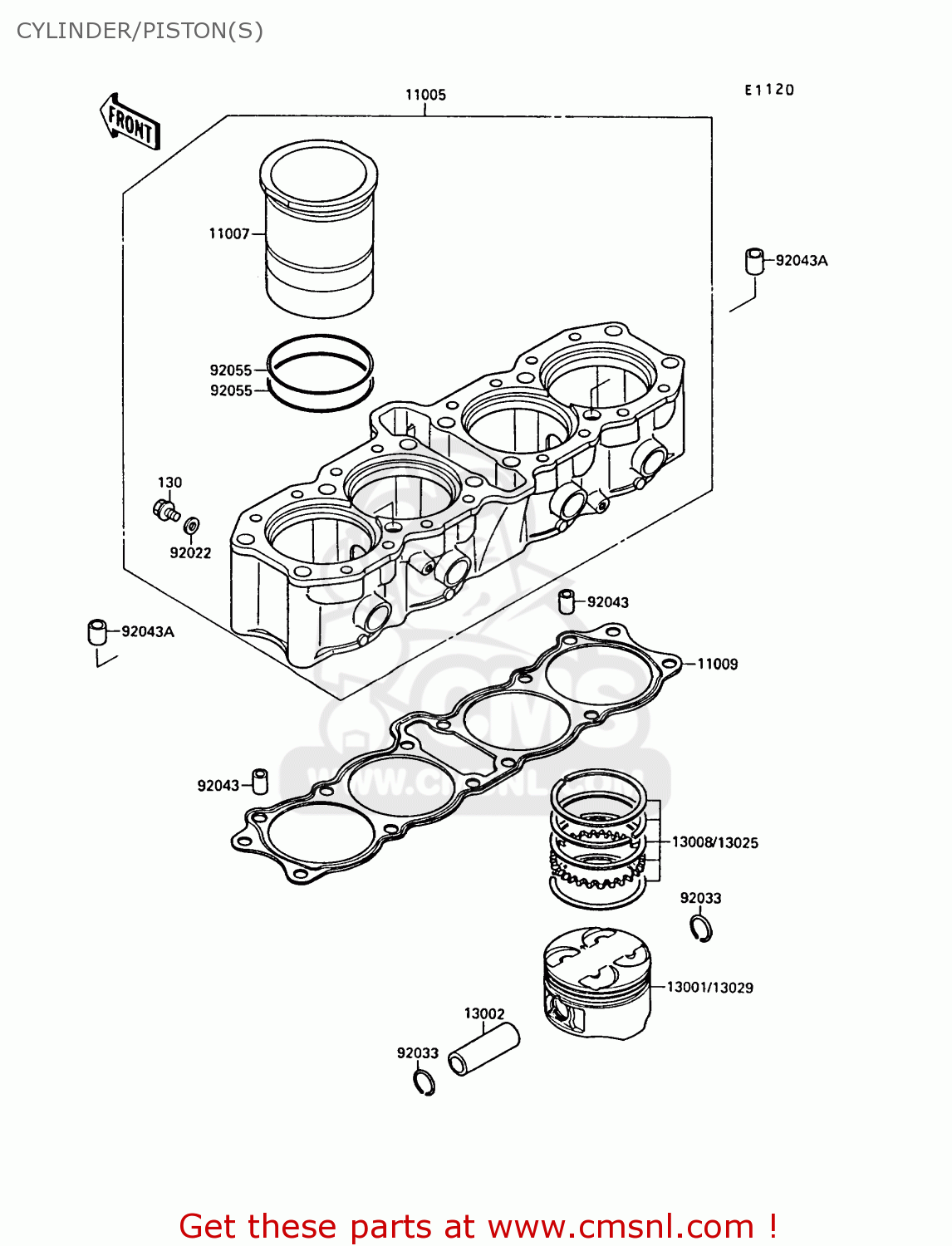

Cylinder/piston(s) diagram ZX750F3 GPX750R 1989 EUROPE FR UK AR NR

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

11005

110051502
ref: 11005

CYLINDER-ENGINE

€ 963.50

11007

110071090
ref: 11007

LINER-CYLINDER

€ 88.50

11009

110091678
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 14.00

13001

130011240
ref: 13001

PISTON-ENGINE,STD

€ 58.00

13002

130021065
ref: 13002

PIN-PISTON

€ 13.50

13008

130081083
ref: 13008

RING-SET-PISTON,STD

€ 52.00

13025

130251079
ref: 13025

RING-SET-PISTON L,O/S

€ 48.50

13029

130291157
ref: 13029

PISTON-ENGINE L,O/S,0

€ 68.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331054
ref: 92033

CIRCLIP,PISTON PIN

€ 2.00

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92043A

920434009
ref: 92043A

PIN,10.1X12X14

€ 4.00

92055

920551357
ref: 92055

RING-O,74.6X2.4

€ 4.00

CYLINDER/PISTON(S)

all assemblies
