VALVE

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

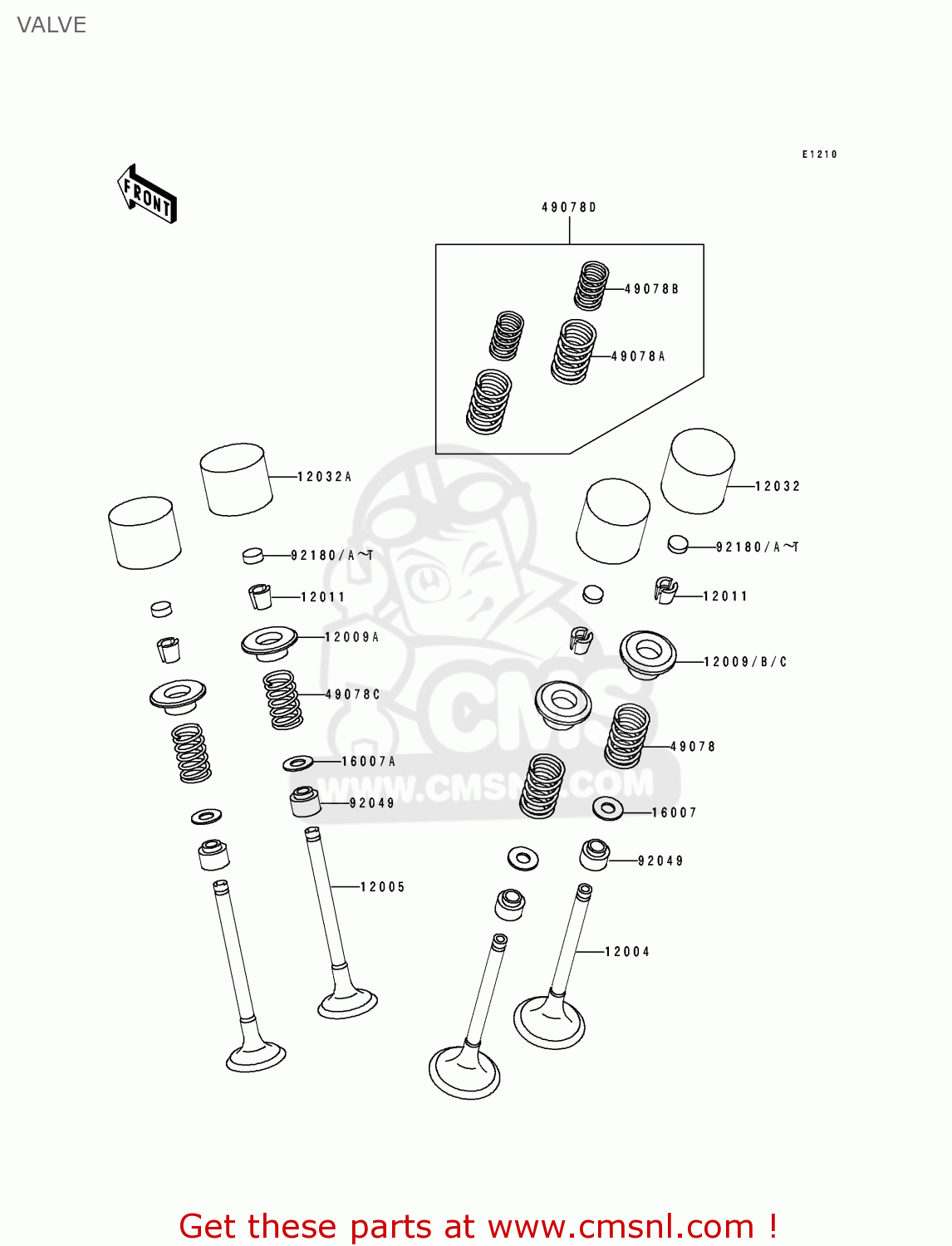

Valve diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

VALVE ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
VALVE ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
VALVE ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
12004
120041102
ref: 12004
VALVE-INTAKE
120041102
€ 28.50
12005
120051162
ref: 12005
VALVE-EXHAUST
120051162
€ 36.00
12009
120091072
ref: 12009
RETAINER-VALVE SPRING
120091072
€ 5.50
12009A
120091073
ref: 12009A
RETAINER-VALVE SPRING
120091073
€ 7.00
12009C
120091074
ref: 12009C
RETAINER-VALVE SPRING
120091074
€ 8.00
12011
120111053
ref: 12011
COLLET
120111053
€ 3.50
12032
120321052
ref: 12032
TAPPET,INTAKE
120321052
€ 24.50
12032A
120321054
ref: 12032A
TAPPET,EXHAUST
120321054
€ 23.50
16007
160071159
ref: 16007
SEAT-SPRING,INTAKE
160071159
€ 3.00
16007A
160071160
ref: 16007A
SEAT-SPRING,EXHAUST
160071160
€ 3.00
49078
490781098
ref: 49078
SPRING-ENGINE VALVE,I
490781098
€ 8.00
49078A
490781109
ref: 49078A
SPRING-ENGINE VALVE,I
490781109
€ 8.50
49078B
490781110
ref: 49078B
SPRING-ENGINE VALVE,E
€ 8.50
49078C
490781111
ref: 49078C
SPRING-ENGINE VALVE,E
490781111
€ 8.00
49078D

ref: 49078D
92049
920491349
ref: 92049
SEAL-OIL
920491349
€ 8.50
92180
921801014
ref: 92180
SHIM,T=2.50
921801014
€ 12.50
92180A
921801016
ref: 92180A
SHIM,T=2.55
921801016
€ 12.50
92180B
921801018
ref: 92180B
SHIM,T=2.60
921801018
€ 12.50
92180C
921801020
ref: 92180C
SHIM,T=2.65
921801020
€ 12.50
92180D
921801022
ref: 92180D
SHIM,T=2.70
921801022
€ 12.50
92180E
921801024
ref: 92180E
SHIM,T=2.75
921801024
€ 12.50
92180F
921801026
ref: 92180F
SHIM,T=2.80
921801026
€ 12.50
92180G
921801028
ref: 92180G
SHIM,T=2.85
921801028
€ 12.50
92180H
921801030
ref: 92180H
SHIM,T=2.90
921801030
€ 12.50
92180I
921801032
ref: 92180I
SHIM,T=2.95
921801032
€ 12.50
92180J
921801034
ref: 92180J
SHIM,T=3.00
921801034
€ 12.50
92180K
921801036
ref: 92180K
SHIM,T=3.05
921801036
€ 12.50
92180L
921801038
ref: 92180L
SHIM,T=3.10
921801038
€ 12.50
92180M
921801040
ref: 92180M
SHIM,T=3.15
921801040
€ 12.50
92180N
921801042
ref: 92180N
SHIM,T=3.20
921801042
€ 12.50
92180O
921801044
ref: 92180O
SHIM,T=3.25
921801044
€ 12.50
92180P
921801046
ref: 92180P
SHIM,T=3.30
921801046
€ 12.50
92180Q
921801048
ref: 92180Q
SHIM,T=3.35
921801048
€ 12.50
92180R
921801050
ref: 92180R
SHIM,T=3.40
921801050
€ 12.50
92180S
921801052
ref: 92180S
SHIM,T=3.45
921801052
€ 12.50
92180T
921801054
ref: 92180T
SHIM,T=3.50
921801054
€ 12.50
