Genuine ZX Kawasaki Parts delivered quickly!


SEAT(ZX600-D2/D2A)

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

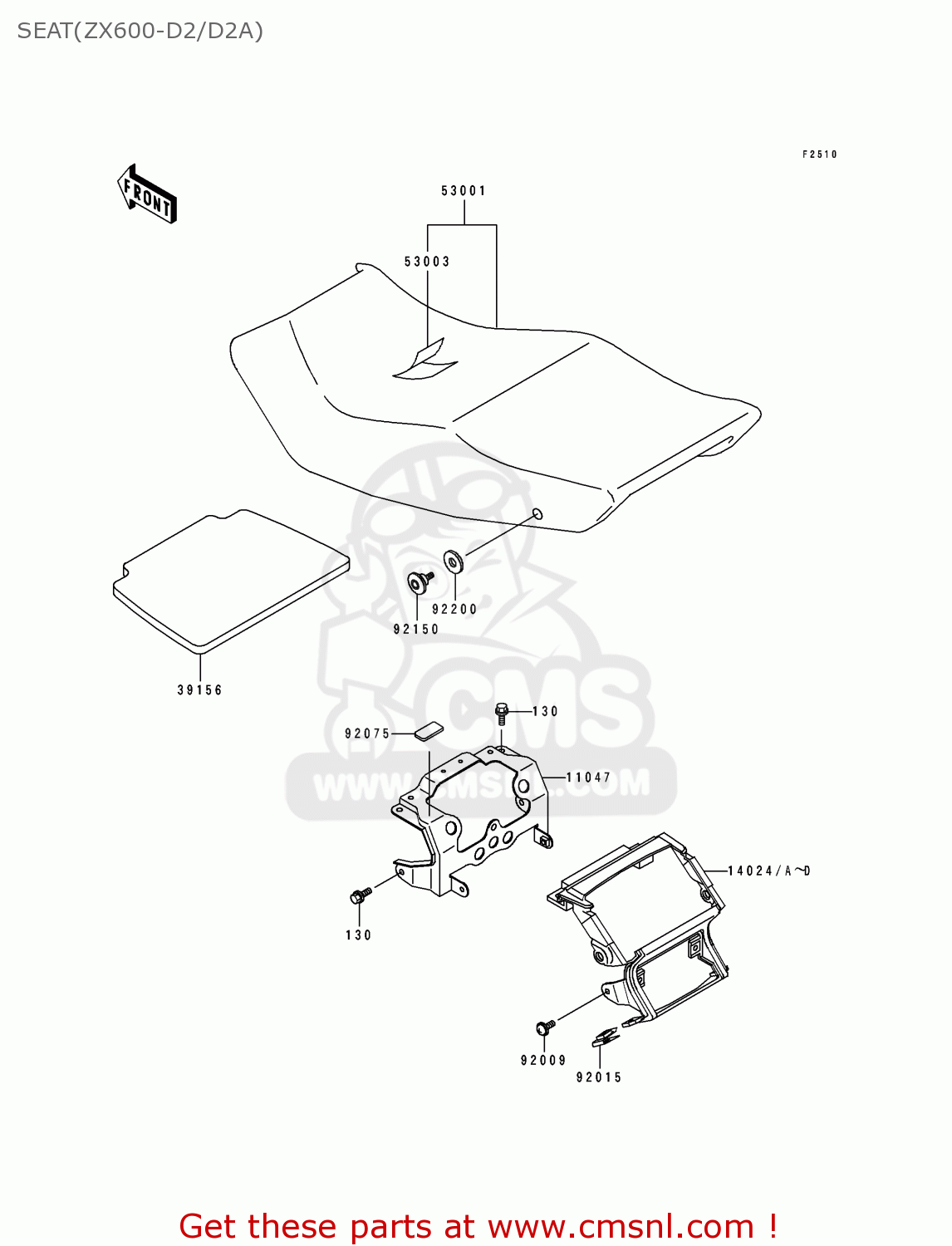

Seat(zx600-d2/d2a) diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

SEAT(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
SEAT(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
SEAT(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
11047
110461950
ref: 11047
BRACKET,TAIL
110461950
€ 33.50
14024
140241897GW
ref: 14024
COVER,TAIL,M.S.BLUE
140241897GW
€ 111.50
14024A
140241897HC
ref: 14024A
COVER,TAIL,ROSE OPERA
140241897HC
€ 68.50
14024C
140241897HT
ref: 14024C
AREUFGGRNRSDSPSTUK
COVER,TAIL,M.O.SILVER
€ 111.50
39156
391561214
ref: 39156
PAD,SEAT
€ 13.50
53001
530011601MA
ref: 53001
SEAT-ASSY,DUAL,BLACK
€ 314.00
53003
530031237MA
ref: 53003
LEATHER,SEAT,BLACK
530031237MA
€ 72.50
92009
920091288
ref: 92009
SCREW,6X14
920091288
€ 2.00
92015
920151798
ref: 92015
NUT
920151798
€ 4.50
92075
920751883
ref: 92075
DAMPER
€ 2.50
92150
921501154
ref: 92150
BOLT,SOCKET,6MM
921501154
€ 5.00
92200
922001013
ref: 92200
WASHER,10.3X20X1
922001013
€ 3.00
