COWLING(ZX600-D2/D2A)

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

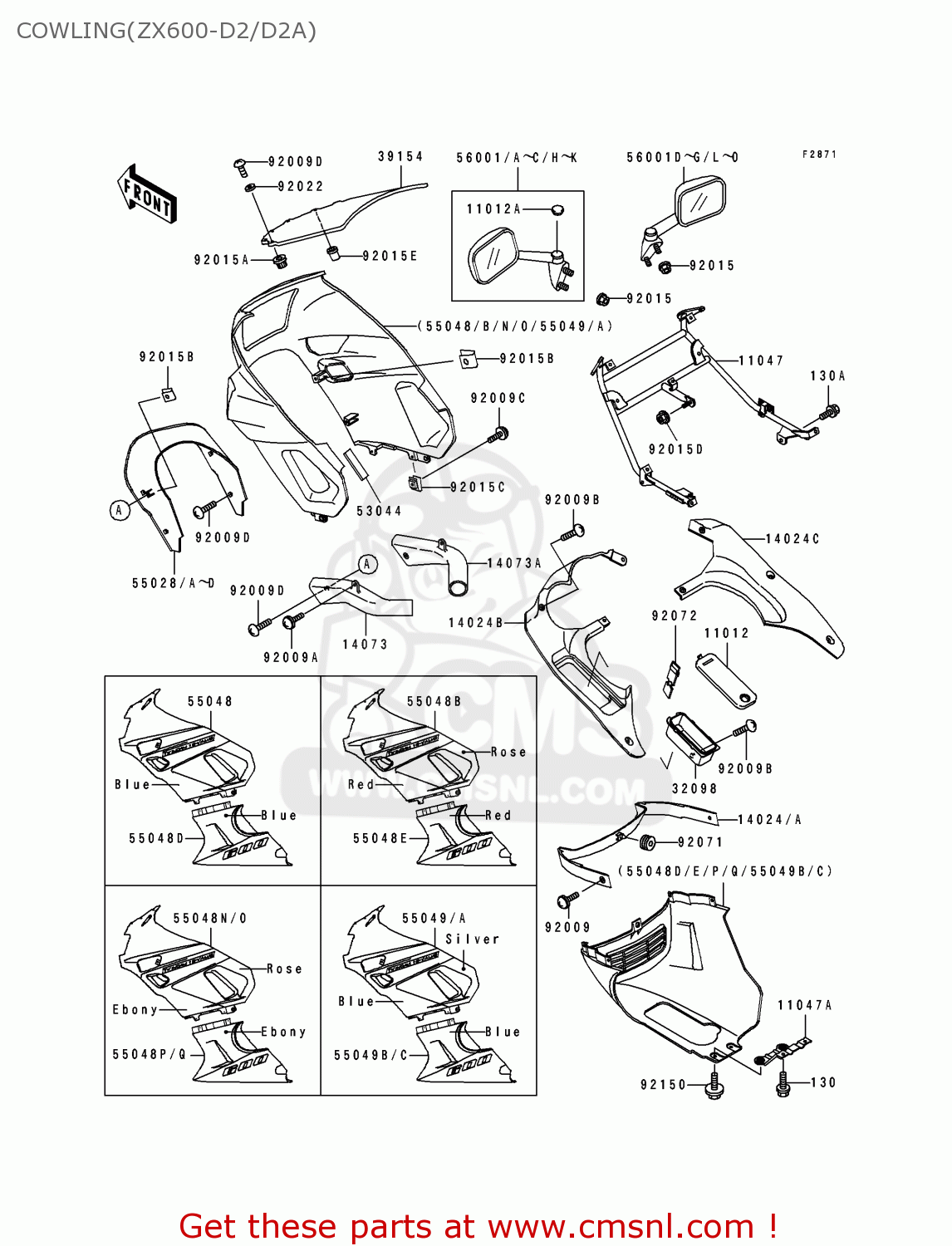

Cowling(zx600-d2/d2a) diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

COWLING(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
COWLING(ZX600-D2/D2A) ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121735
ref: 11012
CAP,INNER COWLING,LH
110121735
€ 18.50
11012A
1101217516Z
ref: 11012A
CAP,MIRROR,BLACK
1101217516Z
€ 2.50
11047
110461962
ref: 11047
BRACKET,COWLING
110461962
€ 223.50
11047A
110471091
ref: 11047A
BRACKET,LWR COWLING
110471091
€ 17.00
14024
140241877GD
ref: 14024
COVER,COWLING,CNT,G.G
140241877GD
€ 79.00
14024B
140241901
ref: 14024B
COVER,INNER COWLING,L
140241901
€ 67.00
14024C
140241902
ref: 14024C
COVER,INNER COWLING,R
140241902
€ 64.00
14073
140731426
ref: 14073
DUCT,AIR INTAKE,LH
140731426
€ 25.50
14073A
140731427
ref: 14073A
DUCT,AIR INTAKE,RH
140731427
€ 12.50
32098
320981093
ref: 32098
CASE-TOOL
320981093
€ 24.00
39154
391541109
ref: 39154
WINDSHIELD
€ 167.00
53044
530441218
ref: 53044
TRIM,L=80
530441218
€ 3.00
55028
550281244FC
ref: 55028
COWLING,FR,C.A.BLUE
€ 106.00
55028A
550281244GW
ref: 55028A
AREUFGGRNRSDSPSTUK
COWLING,FR,M.S.BLUE
550281244GW
€ 91.50
55028C
550281244H8
ref: 55028C
COWLING,FR,EBONY
550281244H8
€ 113.00
55028D
550281244L1
ref: 55028D
COWLING,FR,C.C.RED
550281244L1
€ 106.00
55048
550485428GX
ref: 55048
COWLING.,UPP,BLUE/BLU
€ 765.50
55048B
550485430HF
ref: 55048B
COWLING.,UPP,RED/ROSE
€ 765.50
55048D
550485432GX
ref: 55048D
COWLING.,LWR,BLUE/BLU
€ 375.50
55048E
550485433HF
ref: 55048E
COWLING.,LWR,RED/ROSE
€ 375.50
55048O
550485489JT
ref: 55048O
COWLING.,UPP,EBONY/RO
550485489JT
€ 765.50
55048Q
550485490JT
ref: 55048Q
COWLING.,LWR,EBONY/RO
€ 375.50
55049
550495004HV
ref: 55049
AREUFGGRNRSDSPSTUK
COWLING.,UPP,BLUE/SIL
€ 765.50
55049B
550495005HV
ref: 55049B
AREUFGGRNRSDSPSTUK
COWLING.,LWR,BLUE/SIL
€ 375.50
56001
560011392FC
ref: 56001
ARFGGRNRSDST
MIRROR-ASSY,LH,C.A.BL
560011392FC
€ 113.00
56001A
560011392GW
ref: 56001A
ARFGGRNRSDST
MIRROR-ASSY,LH,M.S.BL
€ 131.00
56001B
560011392H8
ref: 56001B
ARFGGRNRSDST
MIRROR-ASSY,LH,EBONY
€ 119.00
56001C
560011392L1
ref: 56001C
ARFGGRNRSDST
MIRROR-ASSY,LH,C.C.RE
560011392L1
€ 123.00
56001D
560011393FC
ref: 56001D
ARFGGRNRSDST
MIRROR-ASSY,RH,C.A.BL
560011393FC
€ 113.00
56001E
560011393GW
ref: 56001E
ARFGGRNRSDST
MIRROR-ASSY,RH,M.S.BL
€ 119.00
56001F
560011393H8
ref: 56001F
ARFGGRNRSDST
MIRROR-ASSY,RH,EBONY
560011393H8
€ 113.00
56001G
560011393L1
ref: 56001G
ARFGGRNRSDST
MIRROR-ASSY,RH,C.C.RE
€ 119.00
56001H
560011394FC
ref: 56001H
EUFRITSPUK
MIRROR-ASSY,LH,C.A.BL
560011394FC
€ 113.00
56001I
560011394GW
ref: 56001I
EUSPUK
MIRROR-ASSY,LH,M.S.BL
560011394GW
€ 113.00
56001J
560011394H8
ref: 56001J
EUFRITSPUK
MIRROR-ASSY,LH,EBONY
560011394H8
€ 115.50
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0812
ref: 130A
BOLT-FLANGED
130J0812
€ 0.50
56001K
560011394L1
ref: 56001K
EUFRITSPUK
MIRROR-ASSY,LH,C.C.RE
560011394L1
€ 113.00
56001L
560011395FC
ref: 56001L
EUFRITSPUK
MIRROR-ASSY,RH,C.A.BL
560011395FC
€ 113.00
56001M
560011395GW
ref: 56001M
EUSPUK
MIRROR-ASSY,RH,M.S.BL
560011395GW
€ 113.00
56001N
560011395H8
ref: 56001N
EUFRITSPUK
MIRROR-ASSY,RH,EBONY
560011395H8
€ 115.50
56001O
560011395L1
ref: 56001O
EUFRITSPUK
MIRROR-ASSY,RH,C.C.RE
560011395L1
€ 119.00
92009
920091287
ref: 92009
SCREW,6X14
920091287
€ 1.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92009B
920091611
ref: 92009B
SCREW,6X14
920091611
€ 2.50
92009C
920091621
ref: 92009C
SCREW
920091621
€ 1.50
92009D
920091654
ref: 92009D
SCREW
920091654
€ 0.50
92015
920151233
ref: 92015
NUT,FLANGED,6MM
920151233
€ 3.50
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
920151343
€ 3.00
92015B
920151573
ref: 92015B
NUT,5MM
920151573
€ 4.50
92015C
920151602
ref: 92015C
NUT,6MM
920151602
€ 4.50
92015D
920151696
ref: 92015D
NUT,FLANGED,LOCK,8MM
920151696
€ 3.00
92015E
920151757A
ref: 92015E
NUT,5MM
920151757A
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92071
92071056
ref: 92071
GROMMET
92071056
€ 2.50
92072
920721235
ref: 92072
BAND,L=300
920721235
€ 12.00
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
