CRANKCASE BOLT PATTERN

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

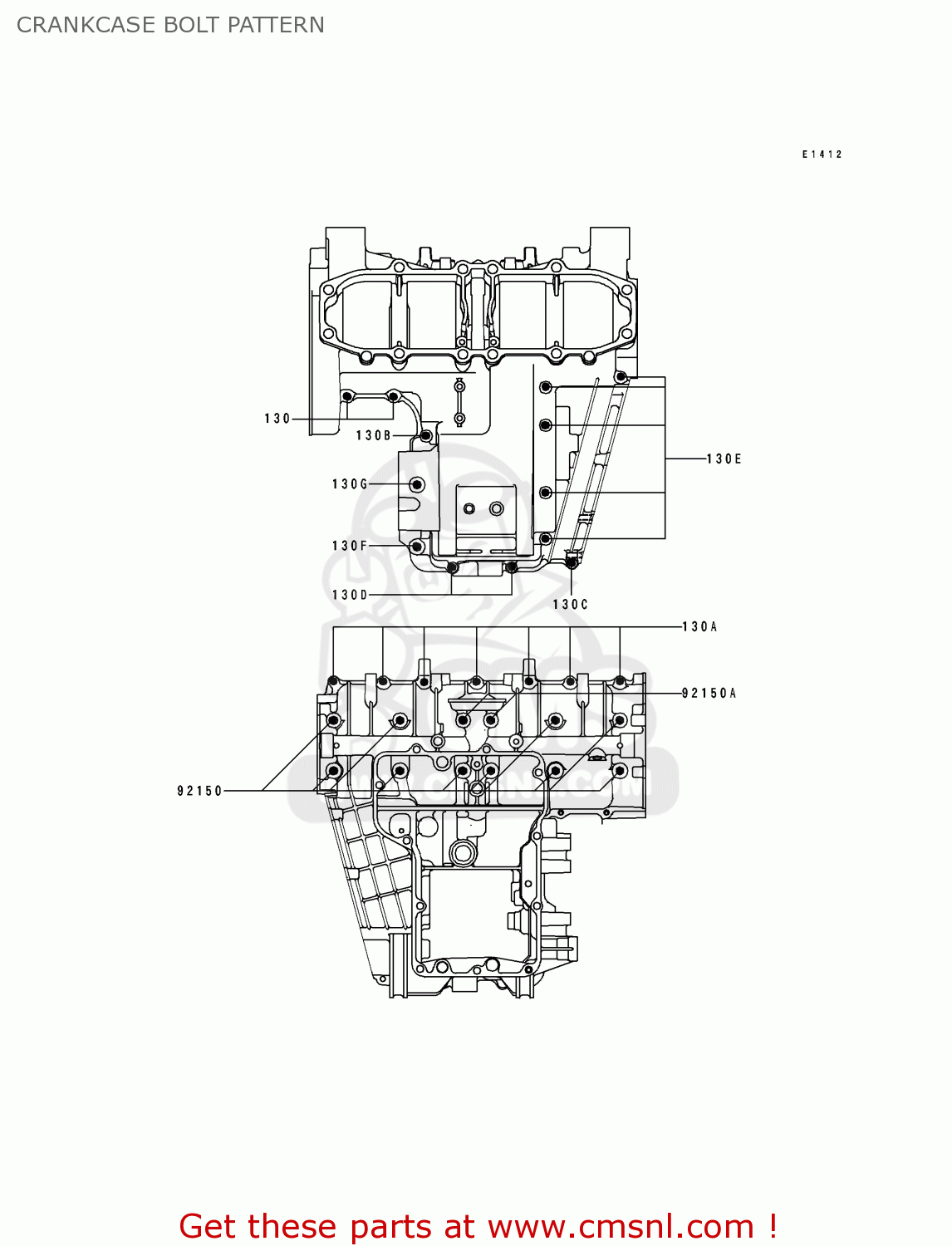

Crankcase bolt pattern diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130G0630
ref: 130

BOLT, FLANGED, 6X30

€ 0.50

130A

130G0635
ref: 130A

BOLT, FLANGED, 6X35

€ 0.50

130B

130G0645
ref: 130B

BOLT,FLANGED,6X45

€ 0.50

130C

130G0660
ref: 130C

BOLT-FLANGED,6X60

€ 3.00

130D

130G0675
ref: 130D

BOLT-FLANGED,6X75

€ 1.50

130E

130G0690
ref: 130E

BOLT,FLANGED,6X90

€ 1.00

130F

130P0870
ref: 130F

BOLT-FLANGED,8X70

€ 1.50

130G

130P0895
ref: 130G

BOLT-FLANGED,8X95

€ 7.00

92150

921501163
ref: 92150

BOLT,8X90

€ 6.00

92150A

921501424
ref: 92150A

BOLT

€ 7.00
