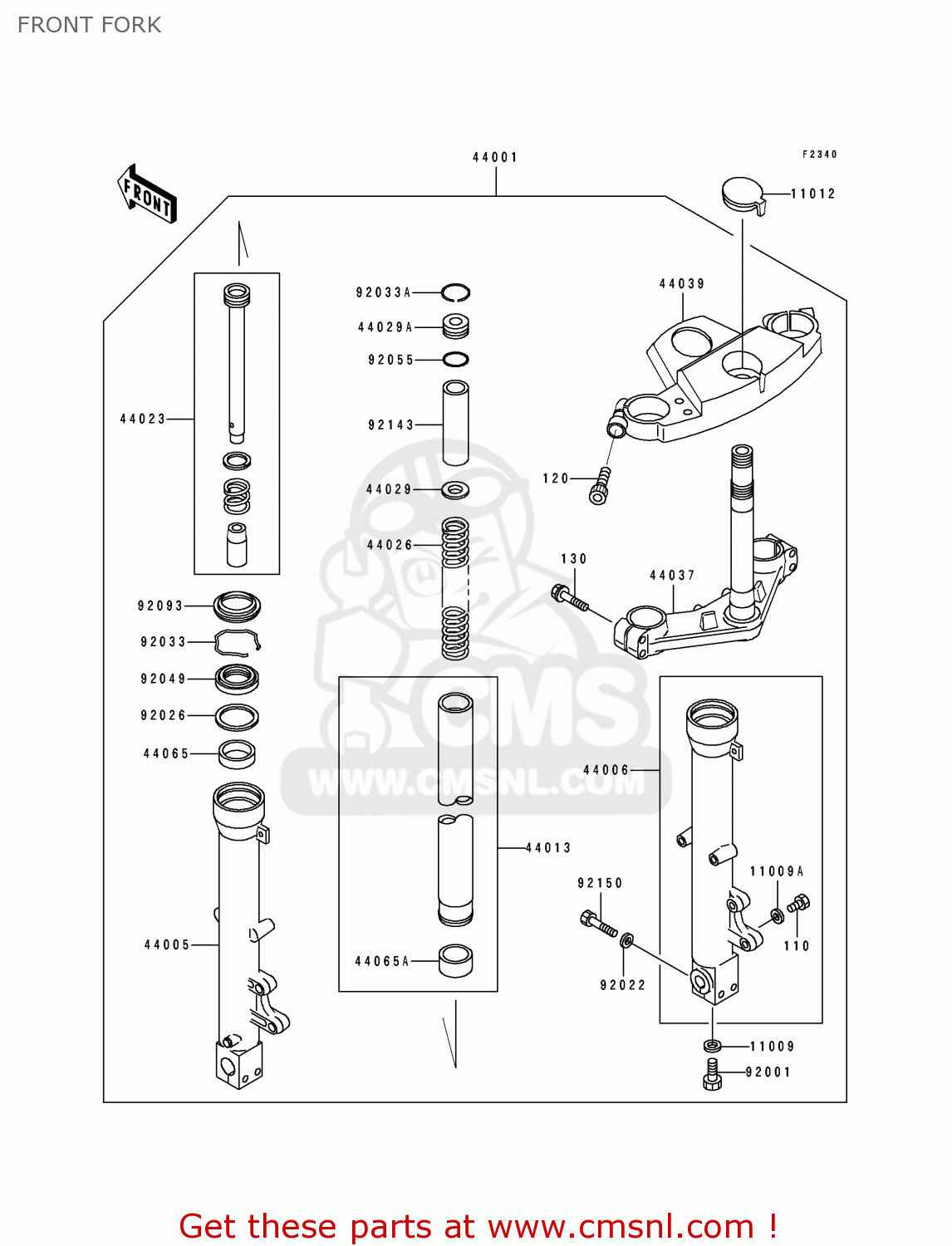

FRONT FORK

ref

part #

description

quantity

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

120

120P0840
ref: 120

BOLT-SOCKET,8X40

€ 2.00

130

130J0840
ref: 130

BOLT-FLANGED,8X40

€ 3.00

11009

44045051
ref: 11009

GASKET,FORK CYLINDER (NAS)

€ 4.00

11009A

44045052
ref: 11009A

GASKET,DRAIN PLUG (NAS)

€ 6.00

11012

110121733GD
ref: 11012

CAP,FORK,G.GRAY

€ 6.00

44001

44001175710
ref: 44001

FORK-FRONT,BLACK

€ 1,572.50

44005

44005130310
ref: 44005

PIPE-LEFT FORK OUTER,

€ 156.00

44006

44006129910
ref: 44006

PIPE-RIGHT FORK OUTER

€ 113.50

44013

440131323
ref: 44013

PIPE-FORK INNER

€ 146.00

44023

440231072
ref: 44023

CYLINDER-COMP-FORK

€ 107.00

44026

440261468
ref: 44026

SPRING-FRONT FORK

€ 38.00

44029

440291131
ref: 44029

SEAT-FORK SPRING

€ 7.00

44029A

440291143
ref: 44029A

SEAT-FORK SPRING

€ 21.00

44037

440371264
ref: 44037

HOLDER-FORK UNDER

€ 189.50

44039

440391197GD
ref: 44039

HOLDER-FORK UPPER,G.G

€ 174.00

44065

440651079
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651087
ref: 44065A

BUSHING-FRONT FORK,IN

€ 19.00

92001

920011464
ref: 92001

BOLT

€ 4.00

92022

920221969
ref: 92022

WASHER

€ 3.00

92026

920261276
ref: 92026

SPACER,FORK OUTER

€ 6.50

92033

920331222
ref: 92033

RING-SNAP,FORK OUTER

€ 4.00

92033A

920331273
ref: 92033A

RING-SNAP

€ 2.00

92049

920491363
ref: 92049

SEAL-OIL,FORK

€ 17.50

92055

920551420
ref: 92055

RING-O,FORK TOP

€ 3.50

92093

920931268
ref: 92093

SEAL,FORK

€ 16.50

92143

921431434
ref: 92143

COLLAR,FORK

€ 8.00

92150

921501183
ref: 92150

BOLT,SOCKET,8MM

€ 2.50
