Genuine ZX Kawasaki Parts delivered quickly!


MUFFLER

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

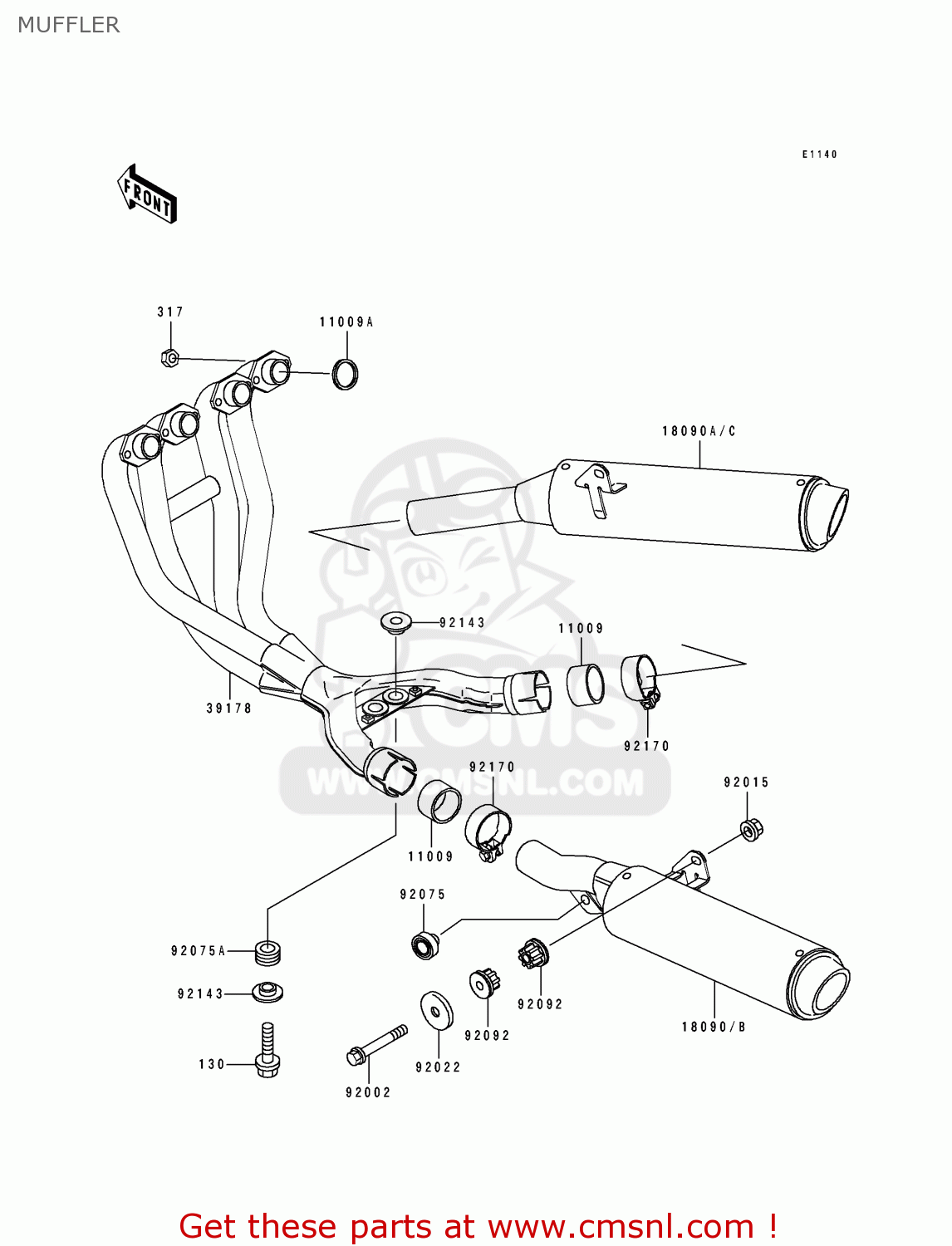

Muffler diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

MUFFLER ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
MUFFLER ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
MUFFLER ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J1035
ref: 130
BOLT-FLANGED,10X35
130J1035
€ 3.50
317
317J0800
ref: 317
NUT-HEX-SMALL,8MM,BLA
317J0800
€ 2.50
11009
110091680
ref: 11009
GASKET,EXHAUST PIPE (NAS)
110091680
€ 23.50
11009A
110091856
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
110091856
€ 5.50
18090
180901057
ref: 18090
ST
BODY-COMP-MUFFLER,LH
€ 274.00
18090A
180901058
ref: 18090A
ST
BODY-COMP-MUFFLER,RH
€ 274.00
18090B
180901083
ref: 18090B
AREUFGFRGRITNRSDSPUK
BODY-COMP-MUFFLER,LH
180901083
€ 260.50
18090C
180901084
ref: 18090C
AREUFGFRGRITNRSDSPUK
BODY-COMP-MUFFLER,RH
€ 274.00
39178
391781158
ref: 39178
MANIFOLD-COMP-EXHAUST
€ 912.50
92002
920021127
ref: 92002
BOLT,10X55
920021127
€ 6.00
92015
920151387
ref: 92015
NUT,FLANGED,10MM
920151387
€ 2.50
92022
92022289
ref: 92022
WASHER,PLAIN
92022289
€ 11.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
920751621
ref: 92075A
DAMPER,MUFFLER
920751621
€ 3.50
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92143
921431395
ref: 92143
COLLAR
921431395
€ 4.50
92170
921701154
ref: 92170
CLAMP
921701154
€ 20.50
