CHANGE DRUM/SHIFT FORK

ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

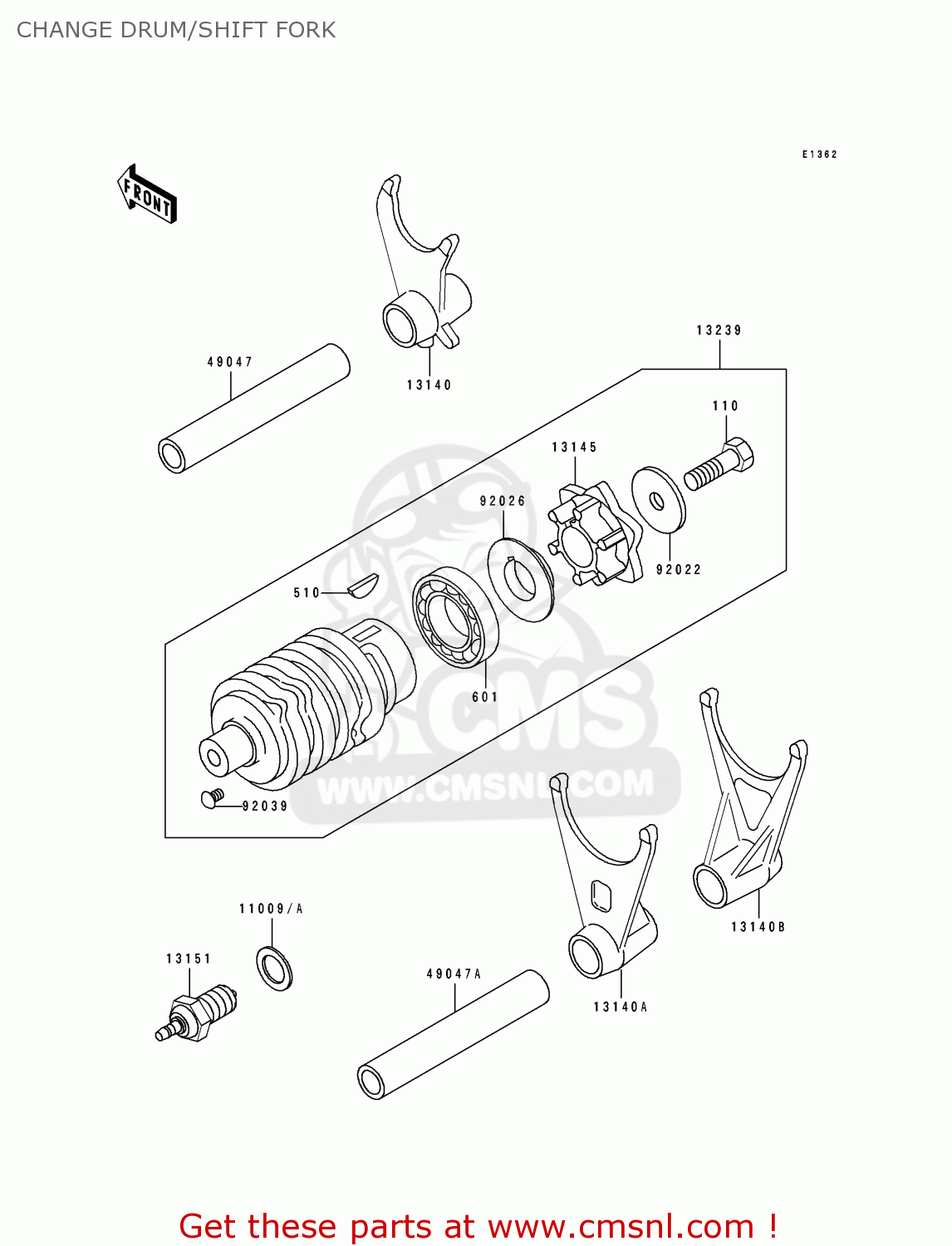

Change drum/shift fork diagram ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

CHANGE DRUM/SHIFT FORK ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
CHANGE DRUM/SHIFT FORK ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
CHANGE DRUM/SHIFT FORK ZX600D2 ZZR600 1991 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
110
110P0620
ref: 110
BOLT,HEX HEAD,6X20
€ 2.50
510
510A3200
ref: 510
KEY-WOODRUFF
510A3200
€ 1.50
601
601A6005
ref: 601
BEARING-BALL
601A6005
€ 14.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
92065058
ref: 11009A
GASKET, 10,5X16X1 (NAS)
92065058
€ 2.50
13140
131401153
ref: 13140
FORK-SHIFT,INPUT
131401153
€ 63.00
13140A
131401154
ref: 13140A
FORK-SHIFT,OUTPUT
131401154
€ 73.00
13140B
131401191
ref: 13140B
FORK-SHIFT,OUTPUT
131401191
€ 77.50
13145
131451059
ref: 13145
CAM-CHANGE DRUM
€ 32.50
13151
131511007
ref: 13151
SWITCH,NEUTRAL
131511007
€ 9.00
13239
132391167
ref: 13239
DRUM-ASSY-CHANGE
€ 148.00
49047
490471070
ref: 49047
ROD-SHIFT
490471070
€ 18.00
49047A
490471076
ref: 49047A
ROD-SHIFT
490471076
€ 17.50
92022
920221690
ref: 92022
WASHER
920221690
€ 2.50
92026
920261380
ref: 92026
SPACER,CHANGE DRUM
€ 10.00
92039
92099001
ref: 92039
SCREW RIVET
92099001
€ 2.50
