STARTER MOTOR
ZX600A2 1986 EUROPE UK FR GR IT NR SD

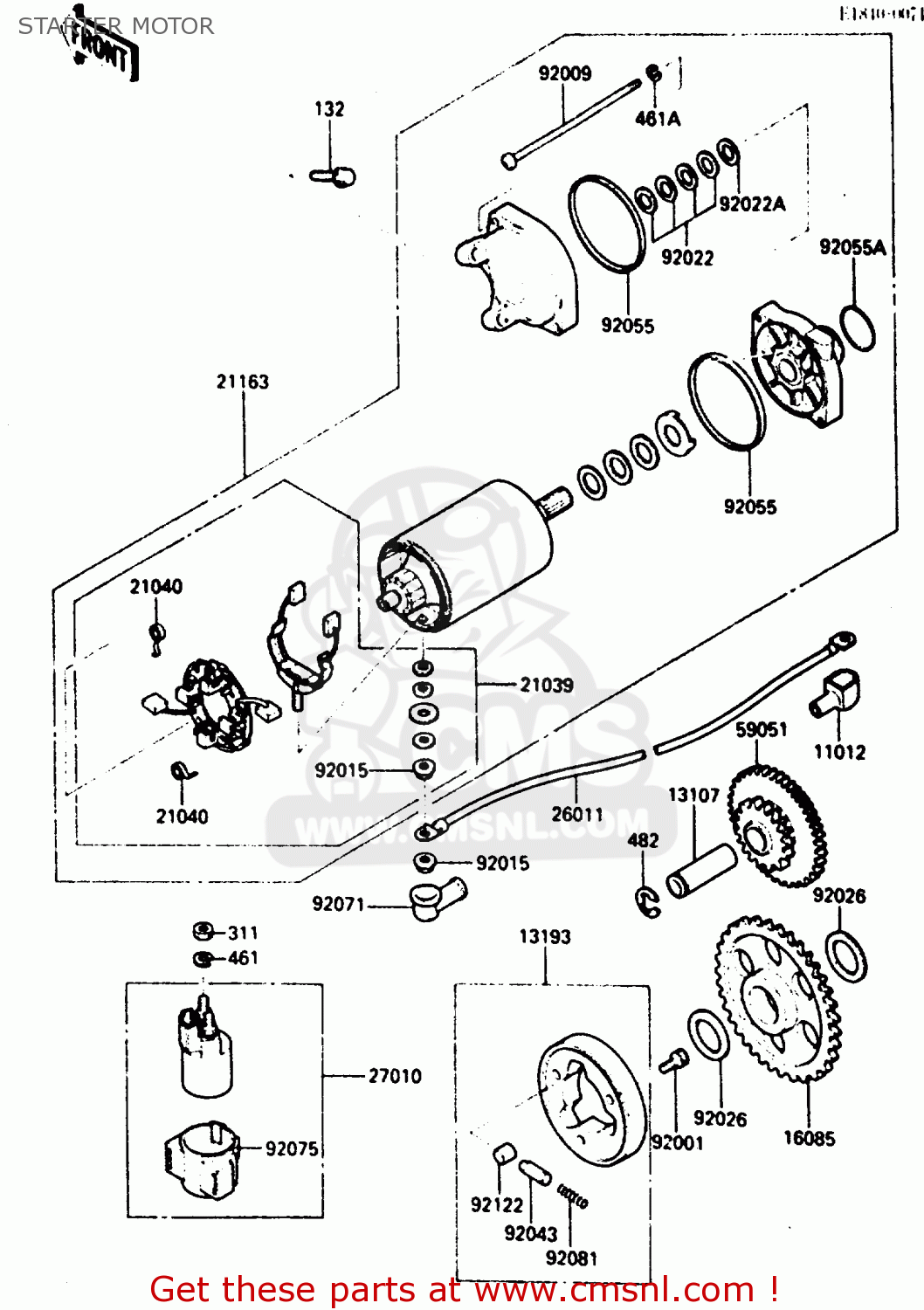

Starter motor diagram ZX600A2 1986 EUROPE UK FR GR IT NR SD
STARTER MOTOR ZX600A2 1986 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13107
131071144
ref: 13107
SHAFT,IDLE GEAR
€ 10.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
€ 97.50
21039
210391053
ref: 21039
BRUSH,CARBON
€ 89.50
20140
210401003
ref: 20140
SPRING-BRUSH
€ 6.00
21163
211631072
ref: 21163
STARTER-ELECTRIC
€ 199.00
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101209
ref: 27010
SWITCH,MAGNETIC
€ 110.50
59051
590511138
ref: 59051
GEAR-SPUR,IDLE
€ 99.50
92001
920011424
ref: 92001
BOLT,SOCKET,8X10
€ 3.00
92009
920091397
ref: 92009
SCREW
€ 4.50
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551276
ref: 92055A
RING-O
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
132
132W0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0500
ref: 461A
WASHER-SPRING,5MM,BLA
€ 0.50
482
482J0300
ref: 482
CIRCLIP-TYPE-E
€ 2.00
