HEAD LAMP

ZX600A2 1986 EUROPE UK FR GR IT NR SD

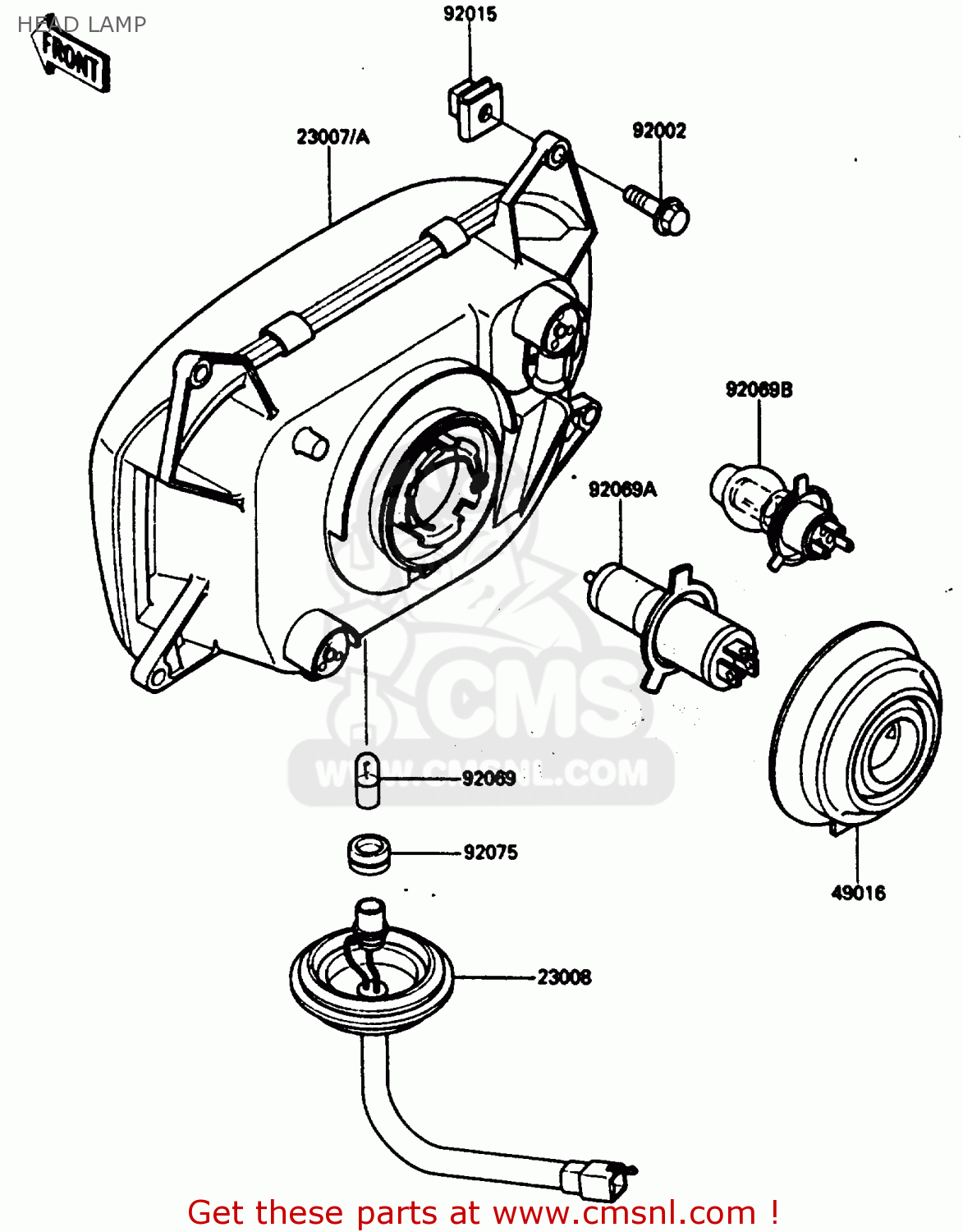

Head lamp diagram ZX600A2 1986 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

23007

230071133
ref: 23007
EU, FR, GR, IT, NR,

LENS-COMP,HEAD LAMP

€ 124.00

23007A

230071134
ref: 23007A
UK

LENS-COMP,HEAD LAMP

€ 341.00

23008

230081268
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 15.50

49016

490161108
ref: 49016

COVER-SEAL,HEAD LAMP

€ 11.00

92002

920021135
ref: 92002

BOLT,6X25

€ 2.50

92015

920151094
ref: 92015

NUT,MUFFLER

€ 5.50

92069

92069071
ref: 92069

BULB,12V 4W

€ 4.50

92069A

920691002
ref: 92069A
EU, GR, IT, NR, SD,

BULB,12V-60155W

€ 15.00

92069B

920691004
ref: 92069B
FR

BULB,12V 60/55W,H4,YE

€ 15.00

92075

23066008
ref: 92075

DAMPER,PARKING LAMP

€ 3.00

HEAD LAMP

all assemblies
