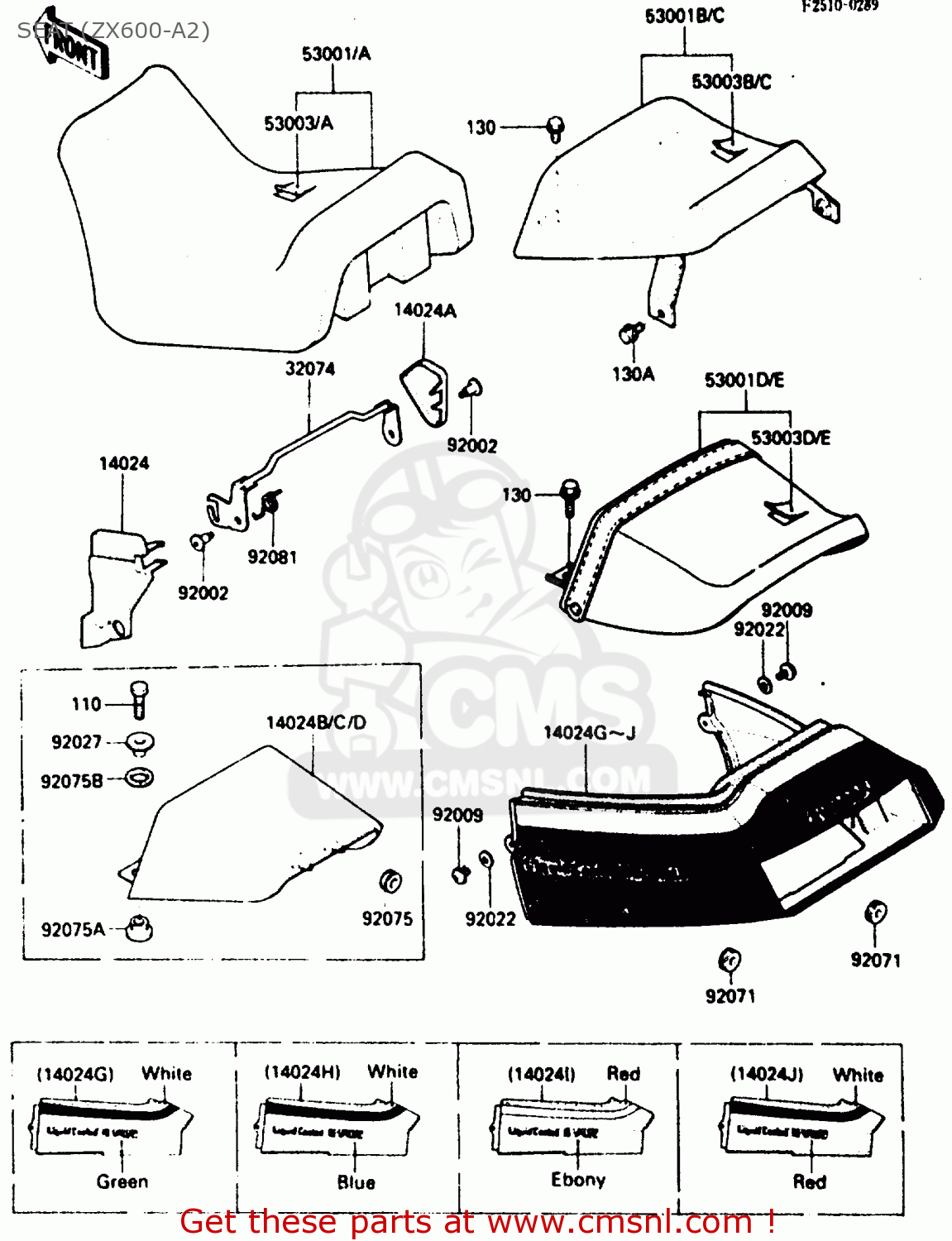

SEAT (ZX600-A2)

ref

part #

description

quantity

14024

140241051
ref: 14024

COVER,SEAT LOCK,LH

€ 8.50

14024A

140241052
ref: 14024A

COVER,SEAT LOCK,RH

€ 5.00

14024B

140241081B1
ref: 14024B
(OPTION)

COVER,SEAT,F.RED

€ 164.00

14024C

140241081F1
ref: 14024C
FR (OPTION)

COVER,FRONT SEAT,P.WH

€ 116.50

14024D

140241081R1
ref: 14024D
EU, GR, IT, NR, SD,

COVER,FRONT SEAT,P.A.

€ 126.00

14024G

140255223M9
ref: 14024G
FR

COVER,SEAT,L.GREEN/P.

€ 257.00

14024H

140255232S3
ref: 14024H
EU, GR, IT, NR, SD,

COVER,SEAT,L.P.BLUE/P

€ 263.50

14024I

140255237J3
ref: 14024I

COVER,SEAT,EBONY/F.RE

€ 258.50

14024J

140255243P9
ref: 14024J
EU, IT, NR, SD, SP,

COVER,SEAT,F.RED/P.A.

€ 220.50

32074

320741113
ref: 32074

BRACKET-LOCK,SEAT

€ 27.00

53001

530011415N3
ref: 53001

SEAT-ASSY,FR,BLACK

€ 164.00

53001A

53001
ref: 53001A
SEAT-ASSY, FR, RED

1415-N4

€ 0.00

53001B

530011416N3
ref: 53001B
FR, GR, IT, NR, SD,

SEAT-ASSY,RR,BLACK

€ 127.00

53001C

530011416N4
ref: 53001C
FR, GR, IT, NR, SD,

SEAT-ASSY,RR,RED

€ 127.00

53001D

530011423N3
ref: 53001D
EU, SP

SEAT-ASSY,RR,W/BAND,B

€ 182.00

53001E

530011423N4
ref: 53001E
EU, SP

SEAT-ASSY,RR,W/BAND,R

€ 182.00

53003

530031130N3
ref: 53003

LEATHER,FRONT SEAT,BL

€ 91.50

53003A

530031130N4
ref: 53003A

LEATHER,FRONT SEAT,RE

€ 79.00

53003B

530031131N3
ref: 53003B
FR, GR, IT, NR, SD,

LEATHER,REAR SEAT,BLA

€ 69.50

53003C

530031131N4
ref: 53003C
FR, GR, IT, NR, SD,

LEATHER,REAR SEAT,RED

€ 69.50

53003D

530031137N3
ref: 53003D
EU, SP

LEATHER,REAR SEAT,BLA

€ 74.50

53003E

530031137N4
ref: 53003E
EU, SP

LEATHER,REAR SEAT,RED

€ 53.50

92002

920021616
ref: 92002

BOLT

€ 8.00

92009

920091288
ref: 92009

SCREW,6X14

€ 2.00

92022

920221654
ref: 92022

WASHER,6.5X16X1.0

€ 2.50

92027

92027251
ref: 92027
(OPTION)

COLLAR,L=13.1

€ 1.00

92071

92071058
ref: 92071

GROMMET-SIDE COVER

€ 2.00

92075

920751629
ref: 92075
(OPTION)

DAMPER,SEAT COVER KIT

€ 3.00

92075A

92075174
ref: 92075A
(OPTION)

DAMPER,MALE

€ 3.00

92075B

92075175
ref: 92075B
(OPTION)

DAMPER,FEMALE

€ 2.50

92081

920811843
ref: 92081

SPRING,SEAT LOCK

€ 3.50

110

110G0620
ref: 110
(OPTION)

BOLT-HEX HEAD,6X20

€ 1.00

130

130B0612
ref: 130

BOLT-FLANGED,6X12

€ 0.50

130A

130B0814
ref: 130A
FR, GR, IT, NR, SD,

BOLT-FLANGED,8X14

€ 0.50

all assemblies
