IGNITION SWITCH
ZX600A2 1986 EUROPE UK FR GR IT NR SD

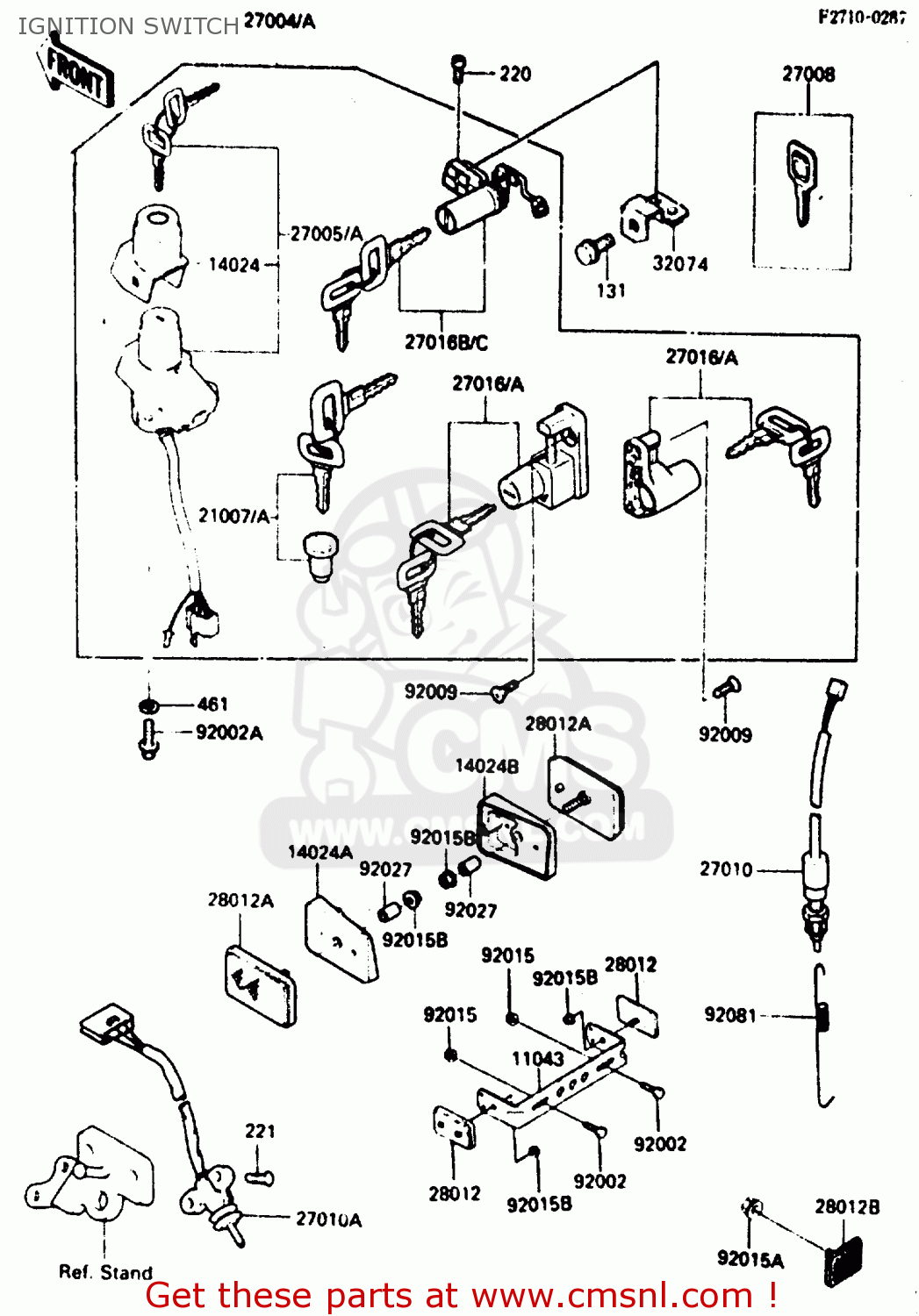

Ignition switch diagram ZX600A2 1986 EUROPE UK FR GR IT NR SD
IGNITION SWITCH ZX600A2 1986 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11043
110431619
ref: 11043
EU (OPTION)
BRACKET,REFLECTOR,RR
€ 9.00
14024
140241332
ref: 14024
EU, FR, GR, IT, SP,
COVER,IGNITION SWITCH
€ 9.00
14024A
140251886
ref: 14024A
EU (OPTION)
COVER,REFLECTOR,FR
€ 9.50
14024B
140251887
ref: 14024B
EU (OPTION)
COVER,REFLECTOR,FR
€ 9.50
21007
210075012
ref: 21007
EU, FR, GR, IT, SP,
ROTOR,LOCK,TANK CAP
€ 65.50
21007A
210075013
ref: 21007A
NR, SD, WG
ROTOR,LOCK,TANK CAP
€ 65.50
27004
270045263
ref: 27004
EU, FR, GR, IT, SP,
SWITCH-ASSY
€ 275.50
27004A
270045264
ref: 27004A
NR, SD, WG
SWITCH-ASSY
€ 285.50
27005
270055048
ref: 27005
EU, FR, GR, IT, SP,
SWITCH-ASSY-IGNITION
€ 144.00
27005A
270055049
ref: 27005A
NR, SD, WG
SWITCH-ASSY-IGNITION
€ 159.00
27006
270081103
ref: 27006
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101093
ref: 27010
SWITCH,BRAKE LAMP
€ 20.00
27010A
270101190
ref: 27010A
SWITCH,SIDE STAND
€ 40.50
27016
270165091
ref: 27016
EU, FR, GR, IT, SP,
LOCK-ASSY,HELMET
€ 24.00
27016A
270165092
ref: 27016A
NR, SD, WG
LOCK-ASSY,HELMET
€ 24.00
27016B
270165093
ref: 27016B
EU, FR, GR, IT, SP,
LOCK-ASSY,SEAT
€ 79.50
27016C
270165094
ref: 27016C
NR, SD, WG
LOCK-ASSY,SEAT
€ 79.50
28012
280121003
ref: 28012
EU (OPTION)
REFLECTOR,REFLEX
€ 15.00
28012A
280121052
ref: 28012A
EU (OPTION)
REFLECTOR-REFLEX,FR
€ 17.50
28012B
280121054
ref: 28012B
REFLECTOR-REFLEX,RR
€ 15.00
32074
320741121
ref: 32074
BRACKET-LOCK,SEAT
€ 8.00
92002
920021132
ref: 92002
EU (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
BOLT
€ 1.50
92009
920091305
ref: 92009
SCREW,5X16
€ 2.50
92015
920151193
ref: 92015
EU (OPTION)
NUT,FLANGED,6MM
€ 0.50
92015A
920151259
ref: 92015A
NUT,FLANGED,5MM
€ 2.50
92015B
920151259
ref: 92015B
EU (OPTION)
NUT,FLANGED,5MM
€ 2.50
92027
920271789
ref: 92027
EU (OPTION)
COLLAR,5X8X14.5
€ 3.00
92081
920811704
ref: 92081
SPRING,BRAKE LAMP SWI
€ 5.00
131
131B0612
ref: 131
BOLT,FLANGED,6X12
€ 0.50
220
220B0512
ref: 220
SCREW-PAN-CROS
€ 0.50
221
221C0520
ref: 221
SCREW-CSK-CROS
€ 2.50
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
