CARBURETOR PARTS
ZX600A2 1986 EUROPE UK FR GR IT NR SD

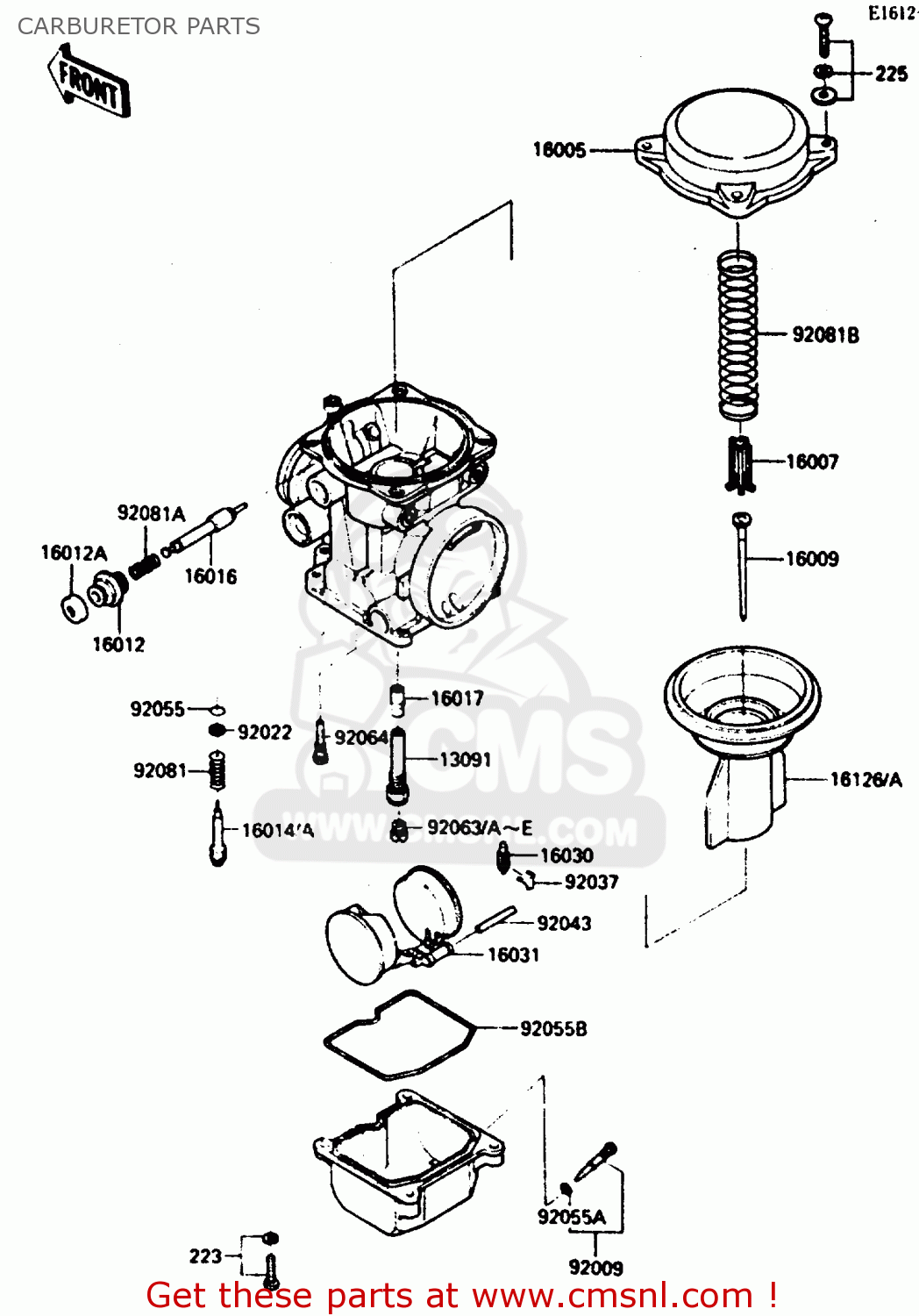

Carburetor parts diagram ZX600A2 1986 EUROPE UK FR GR IT NR SD
CARBURETOR PARTS ZX600A2 1986 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
13091
130911391
ref: 13091
HOLDER,NEEDLE JET
€ 16.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091270
ref: 16009
NEEDLE-JET,N27L
€ 26.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
€ 10.00
16014
160141029
ref: 16014
EU, FR, GR, IT, NR,
SCREW-PILOT AIR
€ 13.50
16014A
160141054
ref: 16014A
ST
SCREW-PILOT AIR
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
€ 30.50
16017
160171285
ref: 16017
JET-NEEDLE
€ 33.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311056
ref: 16031
FLOAT
€ 39.00
16126
161261160
ref: 16126
EU, FR, GR, IT, NR,
VALVE,VACUUM
€ 159.50
16126A
161261161
ref: 16126A
ST
VALVE,VACUUM
€ 113.50
92009
920091095
ref: 92009
SCREW,DRAIN
€ 10.00
92022
920221003
ref: 92022
WASHER,PLAIN
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631007
ref: 92063
(RACING USE ONLY)
MAIN JET, #110
€ 9.50
92063A
920631008
ref: 92063A
(RACING USE ONLY)
JET-MAIN,#100
€ 9.00
92063B
920631009
ref: 92063B
JET-MAIN,#105
€ 10.00
92063C
920631115
ref: 92063C
(RACING USE ONLY
JET-MAIN,#102
€ 10.00
92063D
920631116
ref: 92063D
JET-MAIN,#108
€ 9.50
92063E
920631117
ref: 92063E
JET-MAIN,#112
€ 9.50
92064
920641119
ref: 92064
JET-PILOT,#38
€ 12.00
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
€ 8.00
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
€ 6.00
92081B
920811912
ref: 92081B
SPRING,VACUUM VALVE
€ 17.00
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
