SUSPENSION

ZX500B3 GPX500R 1990 AUSTRIA

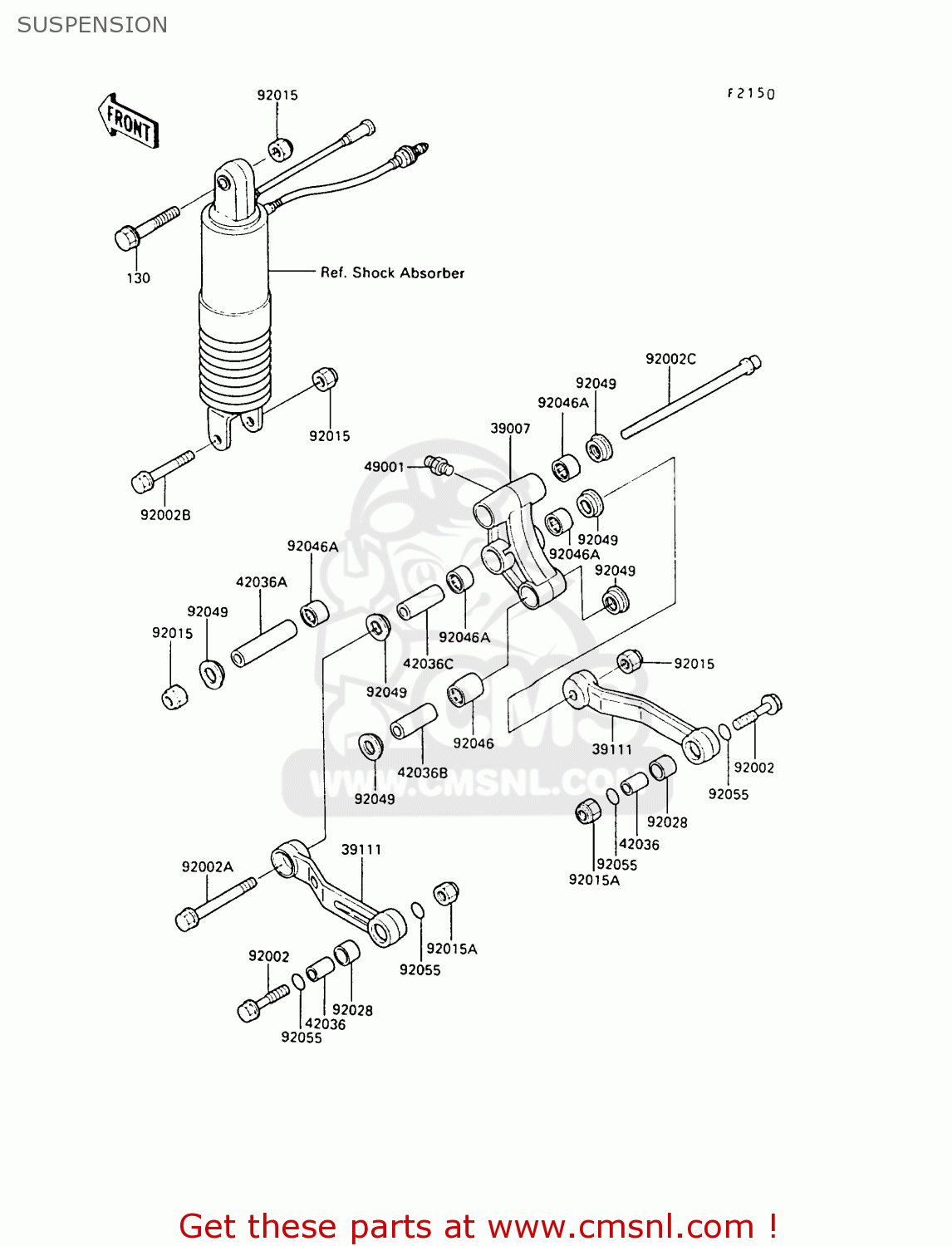

Suspension diagram ZX500B3 GPX500R 1990 AUSTRIA

SUSPENSION ZX500B3 GPX500R 1990 AUSTRIA
SUSPENSION ZX500B3 GPX500R 1990 AUSTRIA
SUSPENSION ZX500B3 GPX500R 1990 AUSTRIA
prices are in EUR
ref
part #
description
quantity
130
130G1250
ref: 130
BOLT-FLANGED
130G1250
€ 4.00
39007
390071126
ref: 39007
ARM-SUSP,UNI TRAK
390071126
€ 111.50
39111
391111092
ref: 39111
ROD-TIE,SUSPENSION
€ 120.50
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
420361076
€ 12.00
42036A
420361102
ref: 42036A
SLEEVE,12.1X20X74
420361102
€ 19.50
42036B
420361108
ref: 42036B
SLEEVE,12.1X20X40
420361108
€ 14.00
42036C
420361111
ref: 42036C
SLEEVE,12.5X20X50
420361111
€ 15.00
49001
490011051
ref: 49001
NIPPLE-GREASE,ROD BOL
490011051
€ 2.00
92002
920011939
ref: 92002
BOLT,12X45
920011939
€ 5.50
92002A
920021463
ref: 92002A
BOLT,FLANGED,12X85
920021463
€ 12.50
92002B
920021464
ref: 92002B
BOLT,FLANGED,12X60
920021464
€ 8.50
92002C
920021490
ref: 92002C
BOLT,SUSPENSION ARM
920021490
€ 19.50
92015
920151190
ref: 92015
NUT,LOCK,12MM,BLACK
920151190
€ 4.50
92015A
920151375
ref: 92015A
NUT,12MM
€ 4.50
92028
920281202
ref: 92028
BUSHING,20X23X15L
920281202
€ 18.00
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
920461110
€ 22.50
92046A
920461112
ref: 92046A
BEARING-NEEDLE,BM2027
920461112
€ 21.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
920551215
€ 2.50
