OIL PAN

ZX500B3 GPX500R 1990 AUSTRIA

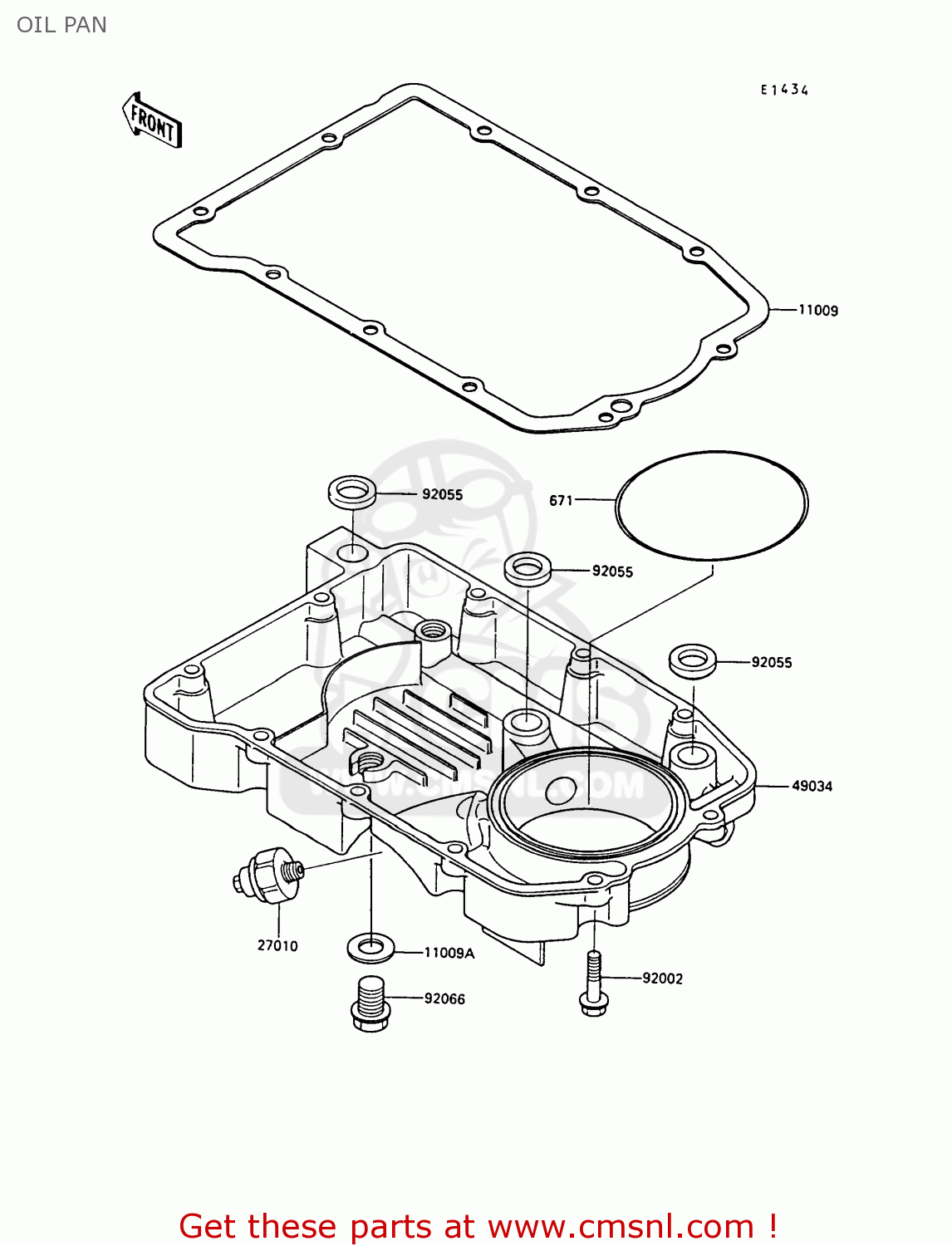

Oil pan diagram ZX500B3 GPX500R 1990 AUSTRIA

OIL PAN ZX500B3 GPX500R 1990 AUSTRIA
OIL PAN ZX500B3 GPX500R 1990 AUSTRIA
OIL PAN ZX500B3 GPX500R 1990 AUSTRIA
prices are in EUR
ref
part #
description
quantity
671
671B2590
ref: 671
O RING,90MM
671B2590
€ 6.50
11009
110091501
ref: 11009
GASKET,OIL PAN (MCA)
110091501
€ 19.00
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
92065097
€ 1.00
27010
270101115
ref: 27010
SWITCH,OIL PRESSURE
€ 0.00
49034
490341060
ref: 49034
PAN-OIL
490341060
€ 132.00
92002
920021089
ref: 92002
BOLT,6X25
920021089
€ 2.00
92055
92055077
ref: 92055
O RING
92055077
€ 4.00
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
920661174
€ 4.00
