CRANKCASE BOLT PATTERN

ZX500B3 GPX500R 1990 AUSTRIA

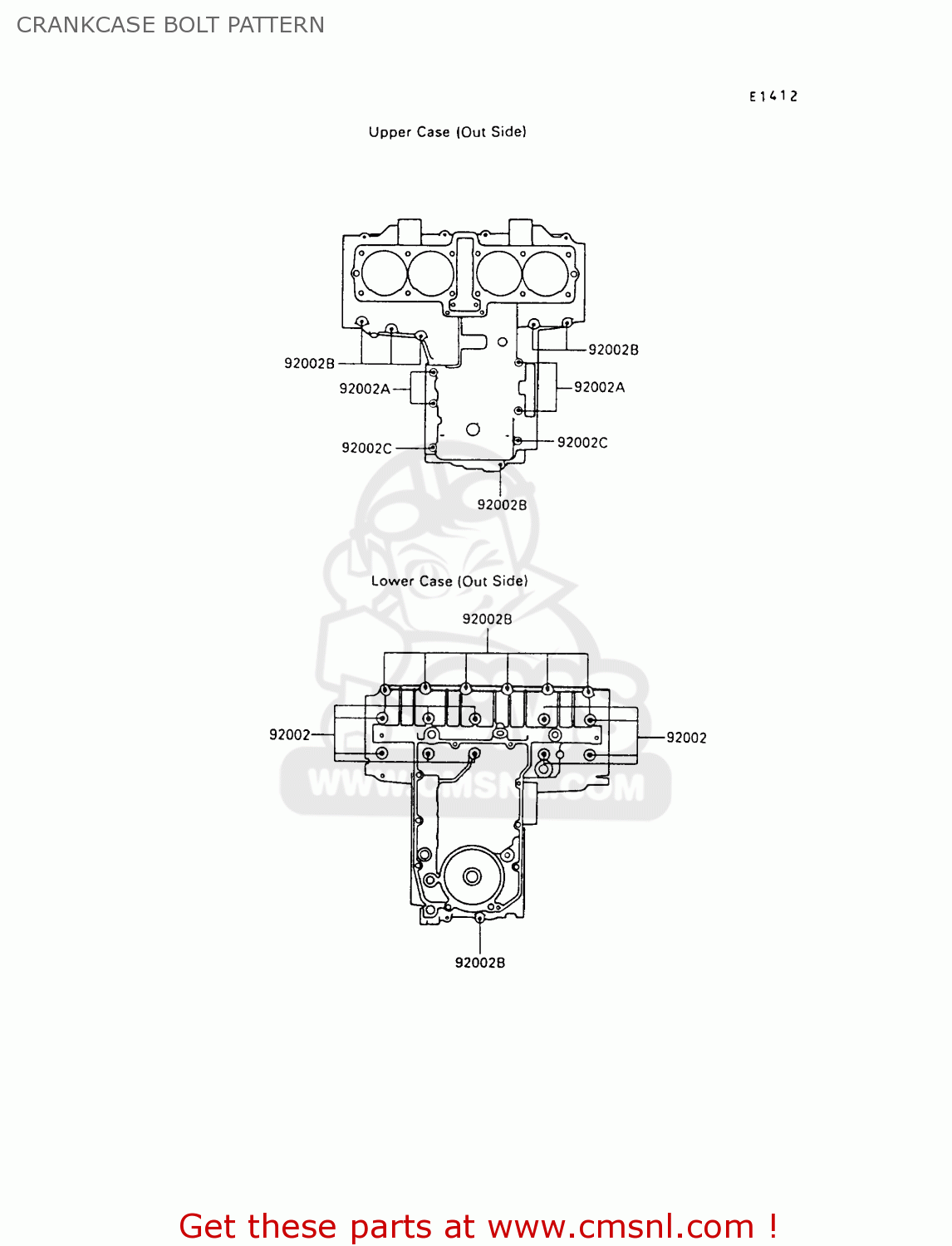

Crankcase bolt pattern diagram ZX500B3 GPX500R 1990 AUSTRIA

CRANKCASE BOLT PATTERN ZX500B3 GPX500R 1990 AUSTRIA
CRANKCASE BOLT PATTERN ZX500B3 GPX500R 1990 AUSTRIA
CRANKCASE BOLT PATTERN ZX500B3 GPX500R 1990 AUSTRIA
prices are in EUR
ref
part #
description
quantity
92002
920021077
ref: 92002
BOLT,8X95
920021077
€ 7.50
92002A
920021078
ref: 92002A
BOLT,6X95
€ 2.50
92002B
920021080
ref: 92002B
BOLT,6X40
920021080
€ 3.50
92002C
920021483
ref: 92002C
BOLT,6X75
920021483
€ 3.00
