IGNITION SYSTEM

ZX500B3 GPX500R 1990 AUSTRIA

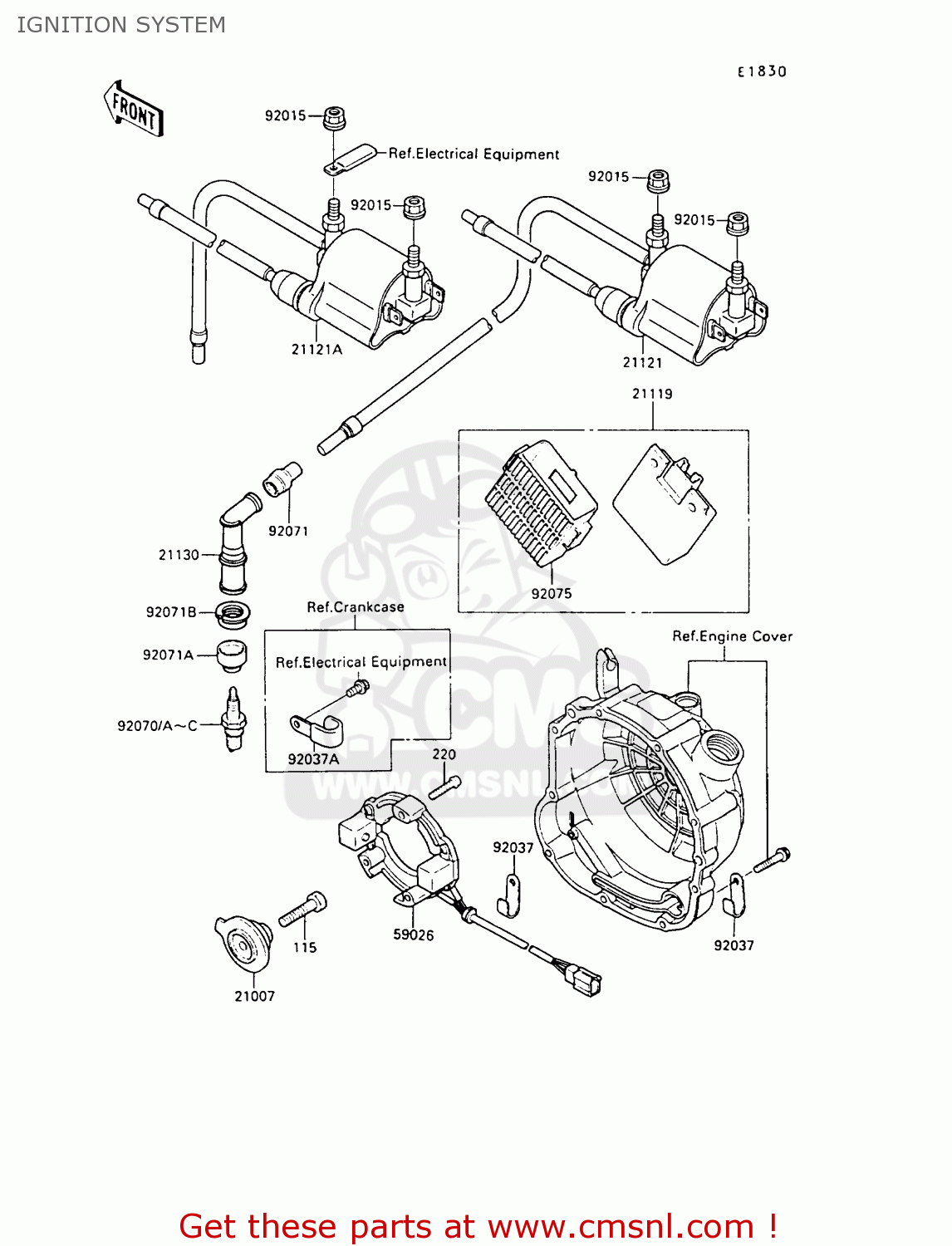

Ignition system diagram ZX500B3 GPX500R 1990 AUSTRIA

IGNITION SYSTEM ZX500B3 GPX500R 1990 AUSTRIA
IGNITION SYSTEM ZX500B3 GPX500R 1990 AUSTRIA
IGNITION SYSTEM ZX500B3 GPX500R 1990 AUSTRIA
prices are in EUR
ref
part #
description
quantity
115
115G0835
ref: 115
BOLT HEX,HEAD,8X35
115G0835
€ 3.00
220
220B0525
ref: 220
SCREW-PAN-CROS,5X25
220B0525
€ 2.50
21007
210071159
ref: 21007
ROTOR
€ 39.00
21119
211191167
ref: 21119
IGNITER
211191167
€ 476.50
21121
211211157
ref: 21121
COIL-IGNITION,#1&#4
€ 113.00
21121A
211211158
ref: 21121A
COIL-IGNITION,#2&#3
€ 113.00
21130
211301057
ref: 21130
CAP-SPARK PLUG
€ 28.00
59026
590261078
ref: 59026
COIL-PULSING
590261078
€ 135.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92037
21126008
ref: 92037
CLAMP,WIRING HARNESS
21126008
€ 3.00
92037A
920371539
ref: 92037A
CLAMP,L=45
920371539
€ 3.00
92070

ref: 92070
92070A
920701019
ref: 92070A
DR8ES (NGK SPARKPLUG)
€ 4.00
92070B

ref: 92070B
92070C
920701116
ref: 92070C
DR8ES-L (NGK SPARKPLU
€ 4.00
92071
21131005
ref: 92071
GROMMET,TENSION,ITALY
21131005
€ 4.00
92071A
920711124
ref: 92071A
GROMMET,PLUG CAP
920711124
€ 6.50
92071B
920711144
ref: 92071B
GROMMET
920711144
€ 5.50
92075
920751504
ref: 92075
DAMPER,IGNITER
920751504
€ 23.50
