CLUTCH

ZX500B3 GPX500R 1990 AUSTRIA

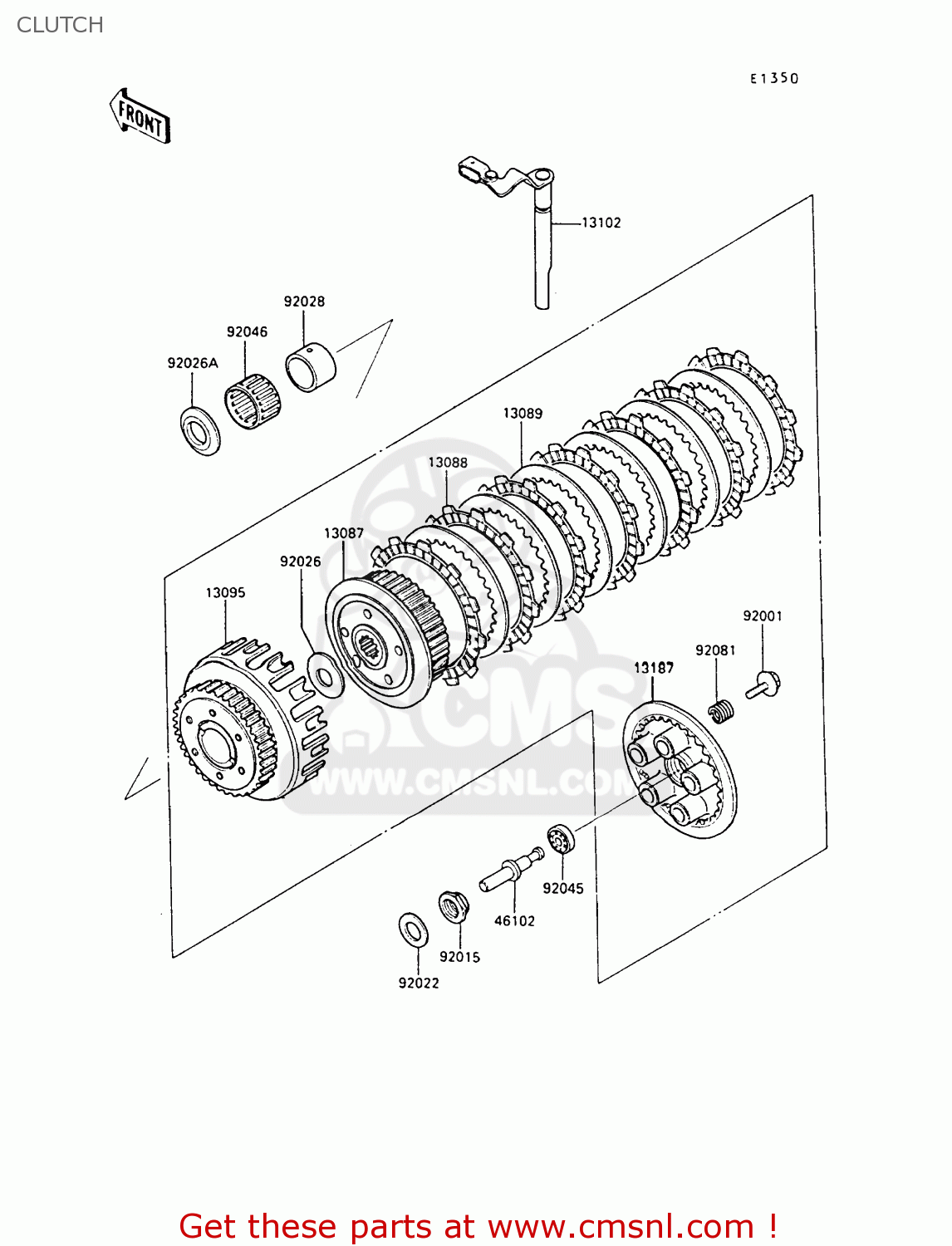

Clutch diagram ZX500B3 GPX500R 1990 AUSTRIA

CLUTCH ZX500B3 GPX500R 1990 AUSTRIA
CLUTCH ZX500B3 GPX500R 1990 AUSTRIA
CLUTCH ZX500B3 GPX500R 1990 AUSTRIA
prices are in EUR
ref
part #
description
quantity
13087
130871052
ref: 13087
HUB-CLUTCH
130871052
€ 96.00
13088
13088040
ref: 13088
PLATE,CLUTCH FRICTION (NAS)
13088040
€ 12.50
13089
13089026
ref: 13089
PLATE,CLUTCH STEEL (NAS)
13089026
€ 6.50
13095
130951128
ref: 13095
HOUSING-COMP-CLUTCH
130951128
€ 348.00
13102
131021089
ref: 13102
RELEASE-COMP-CLUTCH
131021089
€ 33.50
13187
131871012
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
131871012
€ 61.00
46102
461021030
ref: 46102
ROD,CLUTCH
461021030
€ 22.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
920011066
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
920151555
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
920221116
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
92026022
€ 6.50
92026A
92026116
ref: 92026A
SPACER,THRUST,T=5.5MM
92026116
€ 12.00
92028
92028178
ref: 92028
BUSHING,CLUTCH
92028178
€ 17.00
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
920451235
€ 15.50
92046
92046028
ref: 92046
BEARING-NEEDLE,KTV323
92046028
€ 20.50
92081
92081139
ref: 92081
SPRING,CLUTCH
92081139
€ 5.50
