FUEL TANK
ZX500B3 GPX500R 1990 AUSTRIA

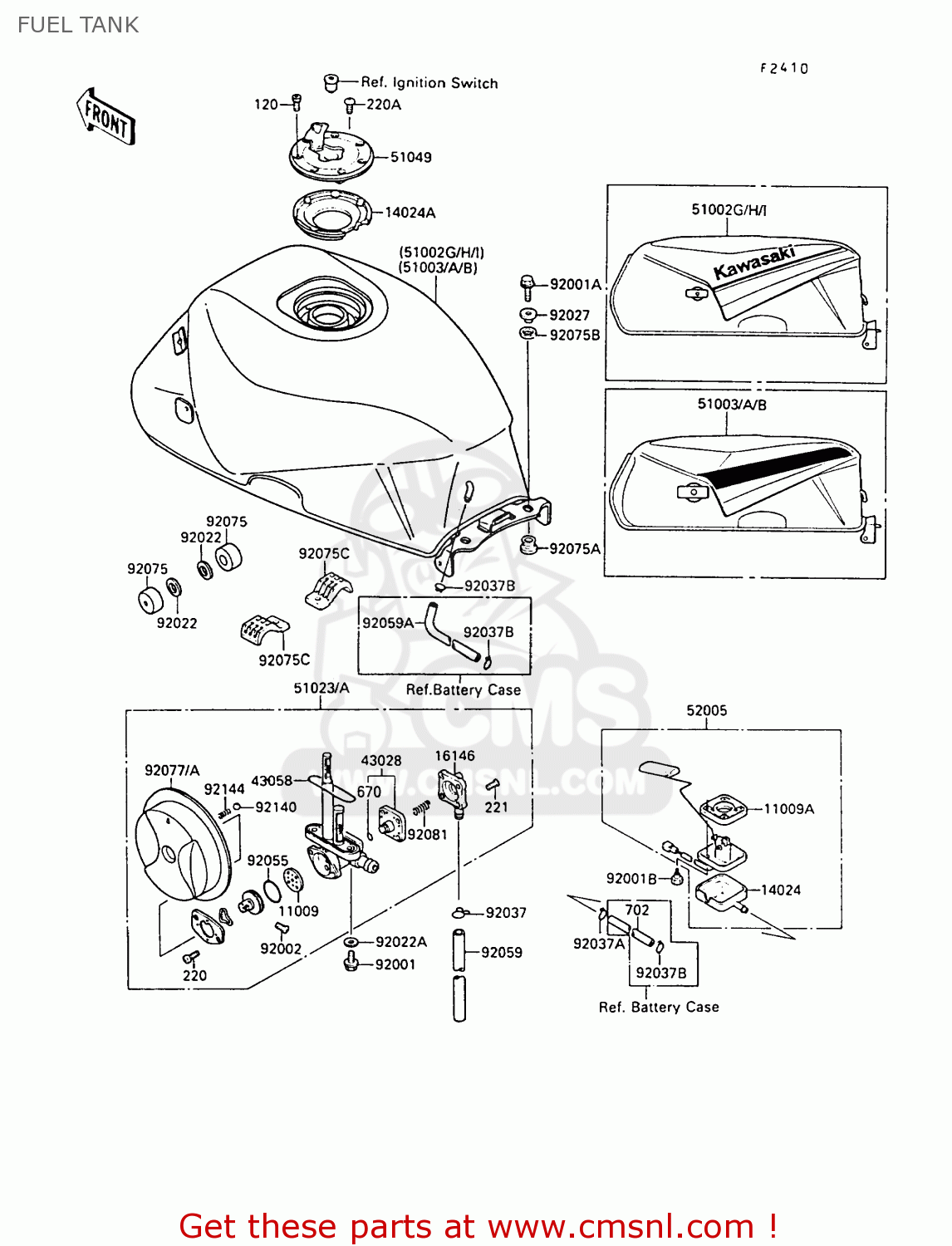

Fuel tank diagram ZX500B3 GPX500R 1990 AUSTRIA
FUEL TANK ZX500B3 GPX500R 1990 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
€ 4.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
€ 14.50
14024
140251536
ref: 14024
COVER,FUEL GAGE
€ 11.50
14024A
140251913
ref: 14024A
COVER,TANK CAP
€ 13.50
16146
161461061
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 15.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
43058
51039003
ref: 43058
'O' RING
€ 4.00
51003
510035030B1
ref: 51003
TANK-COMP-FUEL,F.RED
€ 734.00
51003A
510035031H8
ref: 51003A
TANK-COMP-FUEL,EBONY
€ 734.00
51003B
510035032M4
ref: 51003B
TANK-COMP-FUEL,L.P.BL
€ 734.00
51023A
510231158BK
ref: 51023A
TAP-ASSY,FUEL,BLACK
€ 91.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
€ 106.50
52005
520051089
ref: 52005
GAUGE,FUEL
€ 90.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011352
ref: 92001A
BOLT,FLANGED,6X22
€ 2.50
92001B
920011705
ref: 92001B
BOLT,FUEL GAGE
€ 2.50
92002
920021996
ref: 92002
BOLT
€ 2.50
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
€ 2.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0418
ref: 221
SCREW-CSK-CROS
€ 2.00
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92059
920591890
ref: 92059
TUBE,5X9X470
€ 4.50
92059A
920591958
ref: 92059A
TUBE
€ 7.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
92075174
ref: 92075A
DAMPER,MALE
€ 3.00
92075B
92075175
ref: 92075B
DAMPER,FEMALE
€ 2.50
92075C
920751932
ref: 92075C
DAMPER,FUEL TANK,CNT
€ 4.50
92077A
920771089BK
ref: 92077A
KNOB,FUEL TAP,BLACK
€ 19.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
92140
921401051
ref: 92140
BALL,STAINLESS,5/32
€ 3.00
92144
921441212
ref: 92144
SPRING,FUEL TAP KNOB
€ 2.50
