FRAME

ZX500B3 GPX500R 1990 AUSTRIA

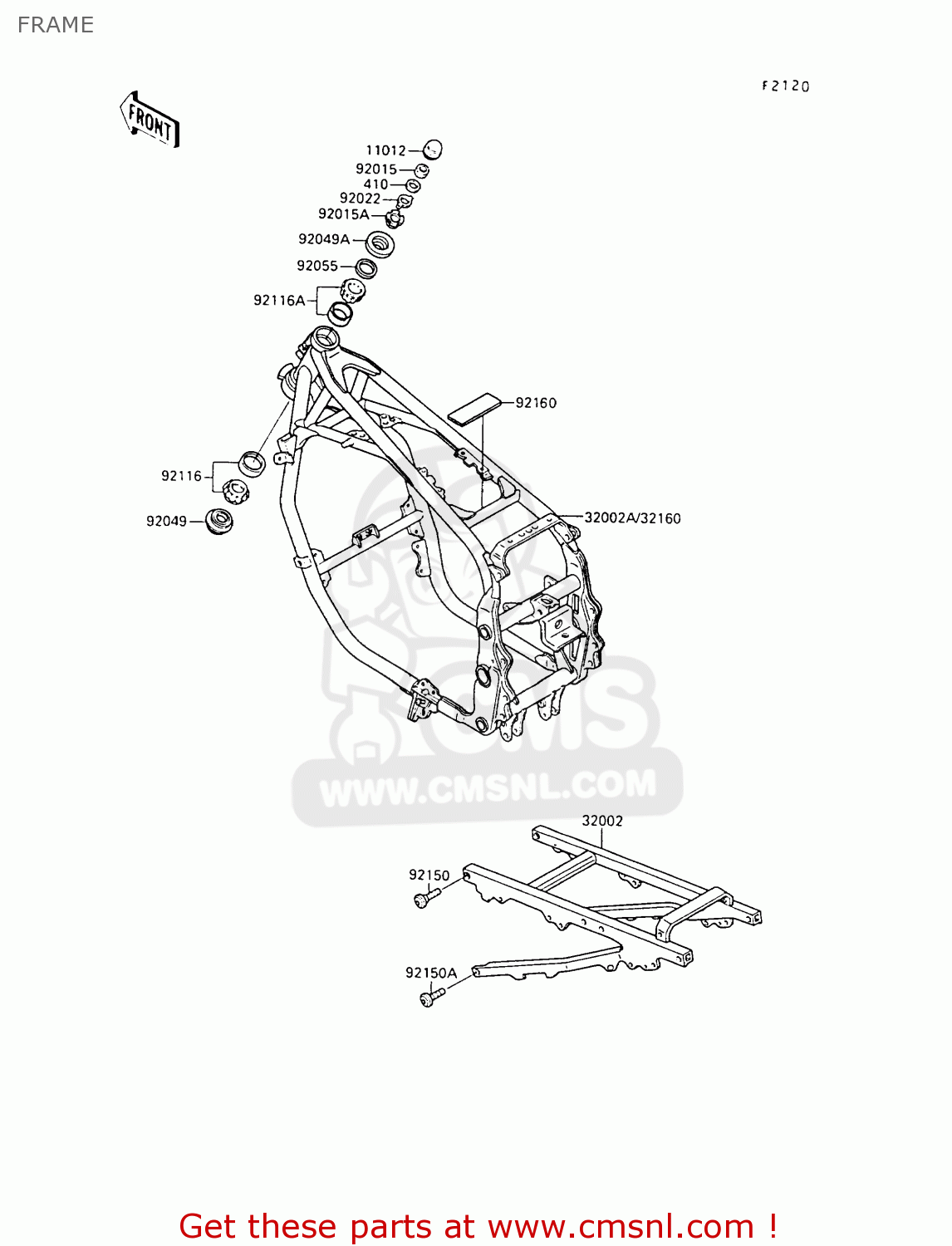

Frame diagram ZX500B3 GPX500R 1990 AUSTRIA

FRAME ZX500B3 GPX500R 1990 AUSTRIA

FRAME ZX500B3 GPX500R 1990 AUSTRIA

prices are in EUR

ref

part #

description

quantity

410

410F1800
ref: 410

W-PLAIN-S

€ 3.00

11012

110121442
ref: 11012

CAP,STEERING STEM

€ 5.00

32002

320021938
ref: 32002

FRAME-COMP,AL,RR

€ 548.00

32160

321601005
ref: 32160

FRAME-COMP,FR

€ 831.50

92015

920151404
ref: 92015

NUT,18MM

€ 15.50

92015A

920151546
ref: 92015A

NUT,25MM,T=12

€ 14.50

92022

920221555
ref: 92022

WASHER,CLAW,18.5X30X2

€ 4.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92049A

920491214
ref: 92049A

SEAL-OIL,STEERING STE

€ 11.00

92055

920551459
ref: 92055

RING-O,ID=24.5

€ 3.00

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92116A

921161056
ref: 92116A

BEARING-ROLLER

€ 48.50

92150

920021927
ref: 92150

BOLT,SOCKET,8X32

€ 3.50

92150A

920021928
ref: 92150A

BOLT,SOCKET,10X25

€ 5.00

92160

921601075
ref: 92160

DAMPER

€ 4.00
