TURN SIGNAL
ZX500A2 1986 EUROPE NR / KPH

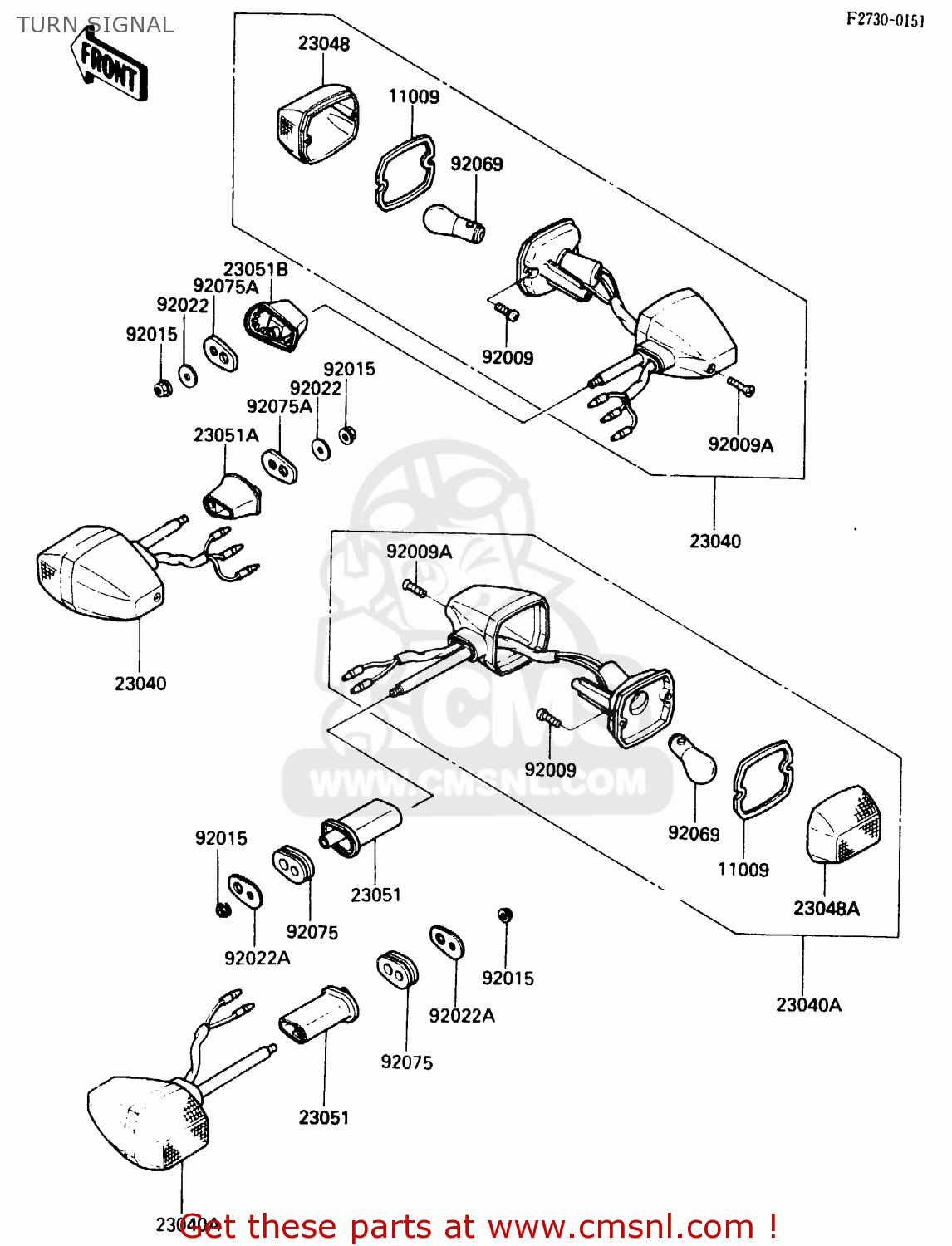

Turn signal diagram ZX500A2 1986 EUROPE NR / KPH
TURN SIGNAL ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091402
ref: 11009
GASKET,SIGNAL LAMP (NAS)
€ 3.50
23040
230401109
ref: 23040
LAMP-SIGNAL,FR
€ 36.50
23040A
230401110
ref: 23040A
LAMP-SIGNAL,RR
€ 38.50
23048
230481054
ref: 23048
LENS-SIGNAL LAMP
€ 12.00
23048A
230481055
ref: 23048A
LENS-SIGNAL LAMP
€ 12.00
23051
230511165
ref: 23051
BRACKET-SIGNAL LAMP,R
€ 17.00
23051A
230511172
ref: 23051A
BRACKET-SIGNAL LAMP,F
€ 12.50
23051B
230511173
ref: 23051B
BRACKET-SIGNAL LAMP,F
€ 13.00
92009
920091115
ref: 92009
SCREW,TAPPING,3X16
€ 2.00
92009A
920091304
ref: 92009A
SCREW,4X20
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221672
ref: 92022A
WASHER,SIGNAL LAMP
€ 3.50
92069
ref: 92069
(LOCAL PROCUREMENT I
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
€ 6.00
92075A
920751749
ref: 92075A
DAMPER,SIGNAL LAMP
€ 4.50
