IGNITION COIL
ZX500A2 1986 EUROPE NR / KPH

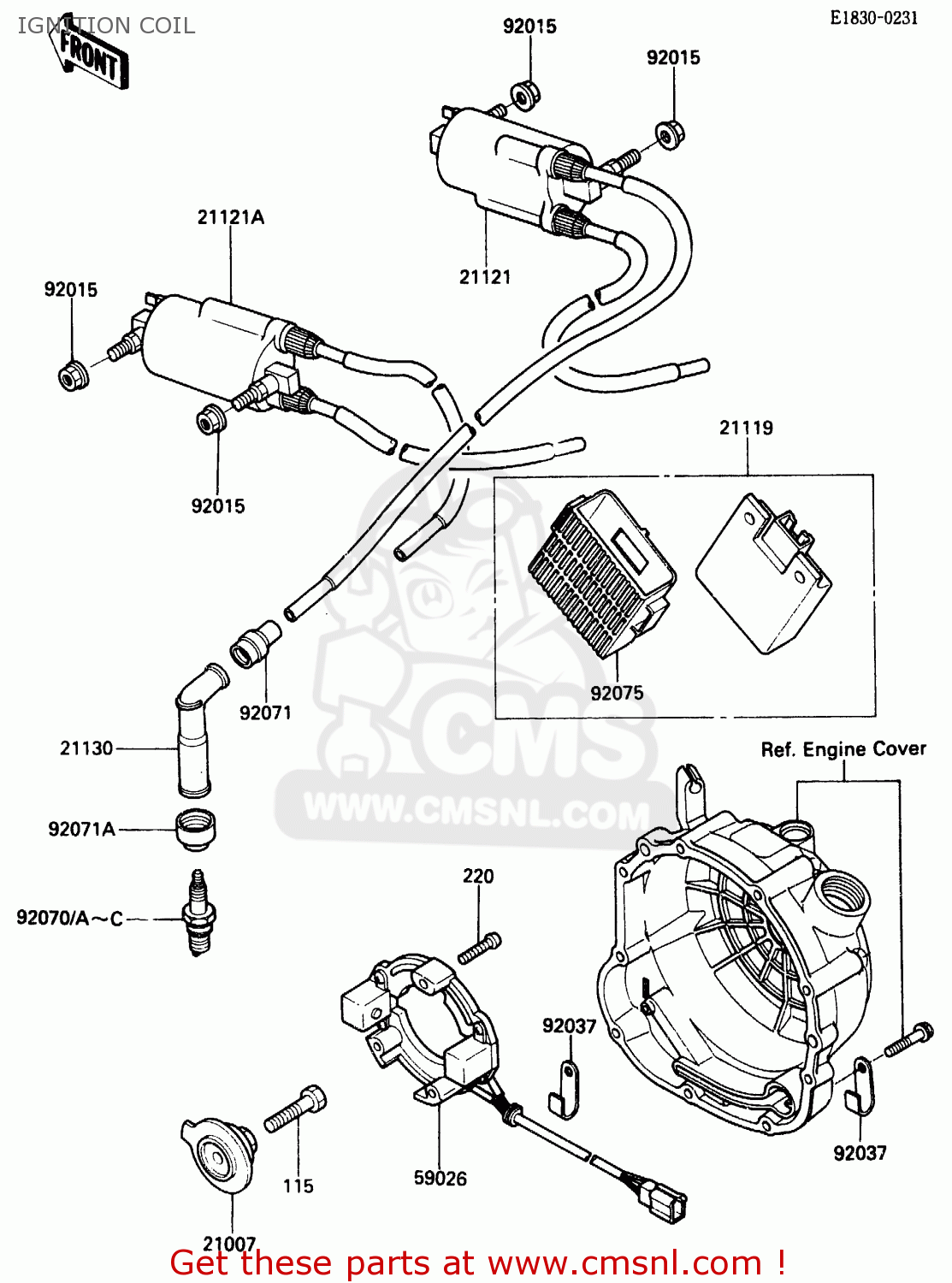

Ignition coil diagram ZX500A2 1986 EUROPE NR / KPH
IGNITION COIL ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
21007
210071130
ref: 21007
ROTOR,PULSING COIL
€ 12.50
21119
211191167
ref: 21119
IGNITER
€ 476.50
21121
211211132
ref: 21121
COIL-IGNITION,#1
€ 110.50
21121A
211211133
ref: 21121A
COIL-IGNITION,#2
€ 118.50
21130
211301002
ref: 21130
CAP,SPARK PLUG
€ 38.50
59026
590261068
ref: 59026
COIL-PULSING
€ 160.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92037
21126008
ref: 92037
CLAMP,WIRING HARNESS
€ 3.00
92070
ref: 92070
(LOCAL PROCUREMENT I
92070A
920701019
ref: 92070A
DR8ES (NGK SPARKPLUG)
€ 4.00
92070B
ref: 92070B
(LOCAL PROCUREMENT I
92070C
920701116
ref: 92070C
(OPTION)
DR8ES-L (NGK SPARKPLU
€ 4.00
92071
21131005
ref: 92071
GROMMET,TENSION,ITALY
€ 4.00
92071A
920711124
ref: 92071A
GROMMET,PLUG CAP
€ 6.50
92075
920751504
ref: 92075
DAMPER,IGNITER
€ 23.50
115
115G0835
ref: 115
BOLT HEX,HEAD,8X35
€ 3.00
220
220B0525
ref: 220
SCREW-PAN-CROS,5X25
€ 2.50
