SEAT (ZX500-A2)
ZX500A2 1986 EUROPE NR / KPH

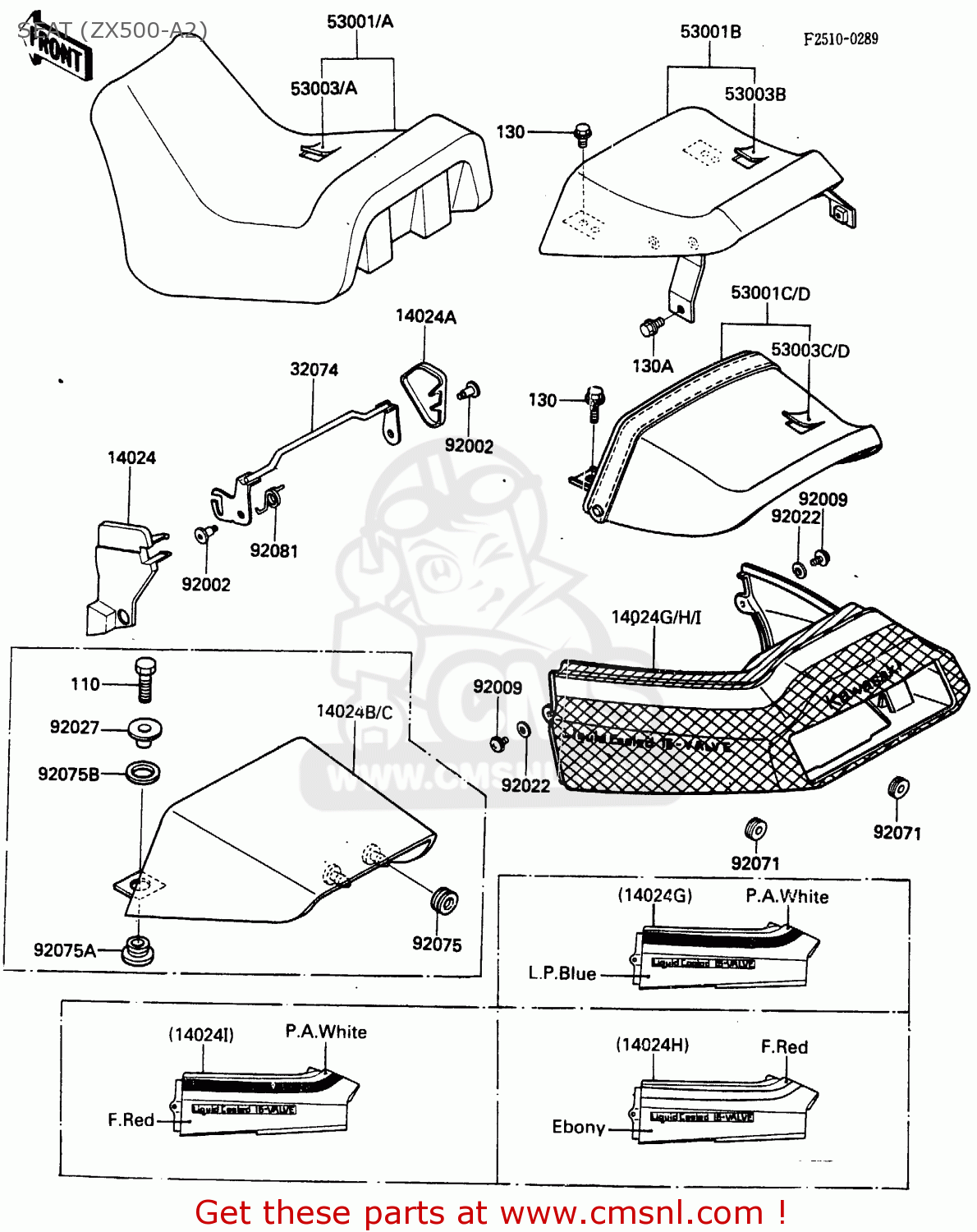

Seat (zx500-a2) diagram ZX500A2 1986 EUROPE NR / KPH
SEAT (ZX500-A2) ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
14024
140241051
ref: 14024
COVER,SEAT LOCK,LH
€ 8.50
14024A
140241052
ref: 14024A
COVER,SEAT LOCK,RH
€ 5.00
14024B
140241081B1
ref: 14024B
EU (OPTION)
COVER,SEAT,F.RED
€ 164.00
14024C
140241081R1
ref: 14024C
(OPTION)
COVER,FRONT SEAT,P.A.
€ 126.00
14024G
140255232S3
ref: 14024G
COVER,SEAT,L.P.BLUE/P
€ 263.50
14024H
140255237J3
ref: 14024H
EU
COVER,SEAT,EBONY/F.RE
€ 258.50
14024I
140255243P9
ref: 14024I
COVER,SEAT,F.RED/P.A.
€ 220.50
32074
320741113
ref: 32074
BRACKET-LOCK,SEAT
€ 27.00
53001
530011415N3
ref: 53001
SEAT-ASSY,FR,BLACK
€ 164.00
53001A
530011415N4
ref: 53001A
EU
SEAT-ASSY,FR,RED
€ 177.00
53001B
530011416N3
ref: 53001B
NR
SEAT-ASSY,RR,BLACK
€ 127.00
53001C
530011423N3
ref: 53001C
EU
SEAT-ASSY,RR,W/BAND,B
€ 182.00
53001D
530011423N4
ref: 53001D
EU
SEAT-ASSY,RR,W/BAND,R
€ 182.00
53003
530031130N3
ref: 53003
LEATHER,FRONT SEAT,BL
€ 91.50
53003A
530031130N4
ref: 53003A
EU
LEATHER,FRONT SEAT,RE
€ 79.00
53003B
530031131N3
ref: 53003B
NR
LEATHER,REAR SEAT,BLA
€ 69.50
53003C
530031137N3
ref: 53003C
EU
LEATHER,REAR SEAT,BLA
€ 74.50
53003D
530031137N4
ref: 53003D
EU
LEATHER,REAR SEAT,RED
€ 53.50
92002
920021616
ref: 92002
BOLT
€ 8.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92022
920221654
ref: 92022
WASHER,6.5X16X1.0
€ 2.50
92027
92027251
ref: 92027
(OPTION)
COLLAR,L=13.1
€ 1.00
92071
92071056
ref: 92071
GROMMET
€ 2.50
92075
920751629
ref: 92075
(OPTION)
DAMPER,SEAT COVER KIT
€ 3.00
92075A
92075174
ref: 92075A
(OPTION)
DAMPER,MALE
€ 3.00
92075B
92075175
ref: 92075B
(OPTION)
DAMPER,FEMALE
€ 2.50
92081
920811843
ref: 92081
SPRING,SEAT LOCK
€ 3.50
110
110B0620
ref: 110
(OPTION)
BOLT-HEX HEAD,6X20
€ 1.00
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130B0814
ref: 130A
NR
BOLT-FLANGED,8X14
€ 0.50
