ENGINE COVER
ZX500A2 1986 EUROPE NR / KPH

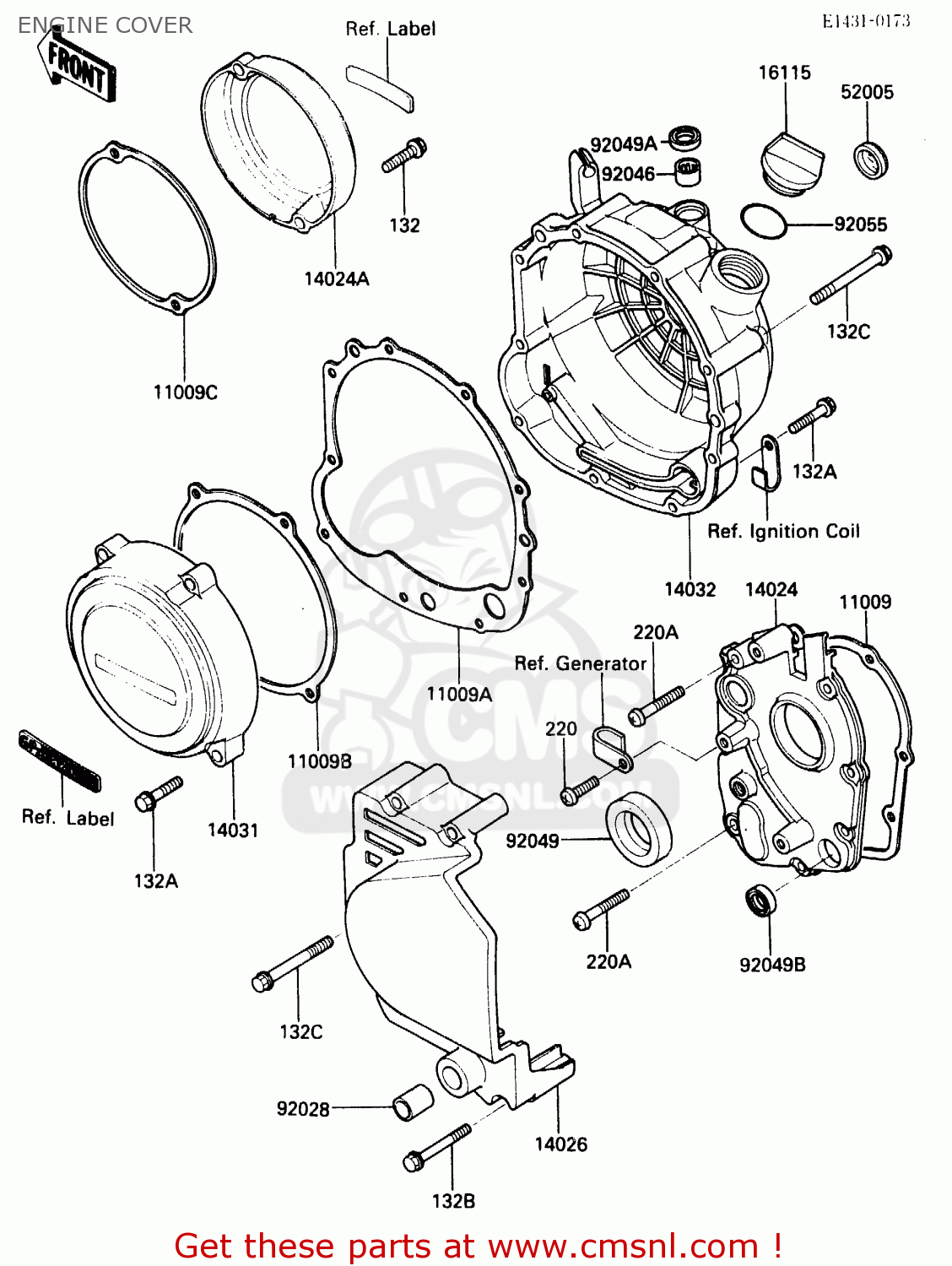

Engine cover diagram ZX500A2 1986 EUROPE NR / KPH
ENGINE COVER ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091285
ref: 11009
GASKET,MISSION COVER (MCA)
€ 8.50
11009A
110091500
ref: 11009A
GASKET,CLUTCH COVER (MCA)
€ 19.00
11009B
110091502
ref: 11009B
GASKET,GENERATOR (MCA)
€ 9.00
11009C
110091503
ref: 11009C
GASKET,PULSING COIL C (MCA)
€ 5.50
14024
140251700
ref: 14024
COVER,TRANSMISSION
€ 47.50
14024A
140251709
ref: 14024A
COVER,PULSING COIL
€ 50.00
14026
140261117
ref: 14026
COVER-CHAIN
€ 96.00
14031
140311178
ref: 14031
COVER-GENERATOR
€ 82.00
14032
140321193
ref: 14032
COVER-CLUTCH
€ 162.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92028
920281251
ref: 92028
BUSHING,13X15X20
€ 8.00
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
92050024
ref: 92049
OIL SEAL SC325210
€ 5.00
92049A
92051004
ref: 92049A
OIL SEAL,TB12205.5
€ 7.00
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
132
132W0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0630
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132W0650
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132W0660
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
220A
220B0640
ref: 220A
SCREW-PAN HEAD,6X40
€ 2.00
