RADIATOR
ZX500A2 1986 EUROPE NR / KPH

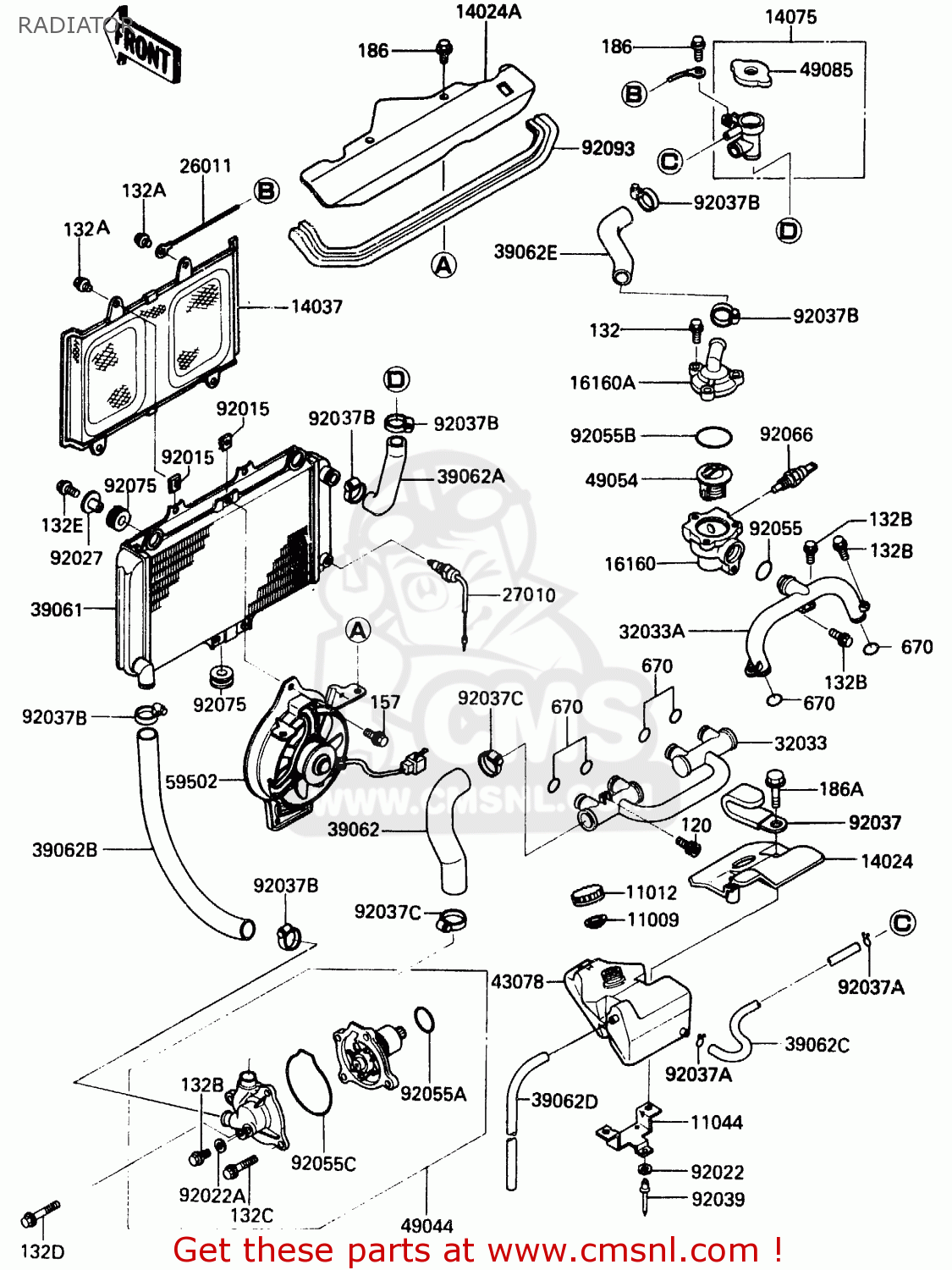

Radiator diagram ZX500A2 1986 EUROPE NR / KPH
RADIATOR ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
11044
110441170
ref: 11044
BRACKET,RESERVOIR
€ 7.50
14024
140241090
ref: 14024
COVER,RESERVOIR
€ 8.50
14024A
140241137
ref: 14024A
COVER,RADIATOR
€ 15.50
14037
140371069
ref: 14037
SCREEN,RADIATOR
€ 56.50
14075
140751061
ref: 14075
CAP-ASSY
€ 128.00
16160
161601092
ref: 16160
BODY,THERMOSTAT,LWR
€ 45.50
16160A
161601093
ref: 16160A
BODY,THERMOSTAT,UPP
€ 39.00
26011
260111328
ref: 26011
WIRE-LEAD
€ 2.50
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
32033
320331593
ref: 32033
PIPE
€ 91.50
32033A
320331594
ref: 32033A
PIPE
€ 72.00
39061
390611071
ref: 39061
RADIATOR-ASSY
€ 671.50
39062
390621111
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 21.00
39062A
390621113
ref: 39062A
HOSE-COOLING
€ 13.00
39062B
390621114
ref: 39062B
HOSE-COOLING
€ 24.50
39062C
390621115
ref: 39062C
HOSE-COOLING
€ 18.00
39062D
390621116
ref: 39062D
HOSE-COOLING
€ 18.00
39062E
390621130
ref: 39062E
HOSE-COOLING
€ 12.00
43078
430781062
ref: 43078
RESERVOIR
€ 32.50
49044
490441054
ref: 49044
PUMP-WATER
€ 288.50
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
59502
595021057
ref: 59502
FAN-ASSY
€ 417.00
92015
920151487
ref: 92015
NUT
€ 3.00
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
€ 2.50
92022A
920221627
ref: 92022A
WASHER,6MM
€ 4.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371599
ref: 92037B
CLAMP,COOLING HOSE
€ 14.00
92037C
920371600
ref: 92037C
CLAMP,COOLING HOSE
€ 4.00
92039
920391038
ref: 92039
RIVET
€ 2.00
92055
920551081
ref: 92055
RING-O,FORK TOP
€ 3.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
€ 12.00
92055B
920551279
ref: 92055B
RING-O,45MM
€ 4.50
92055C
920551315
ref: 92055C
RING-O,WATER PUMP
€ 8.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92075
920751569
ref: 92075
DAMPER,HEAD LAMP FITT
€ 3.50
