FRONT HUB
ZX500A2 1986 EUROPE NR / KPH

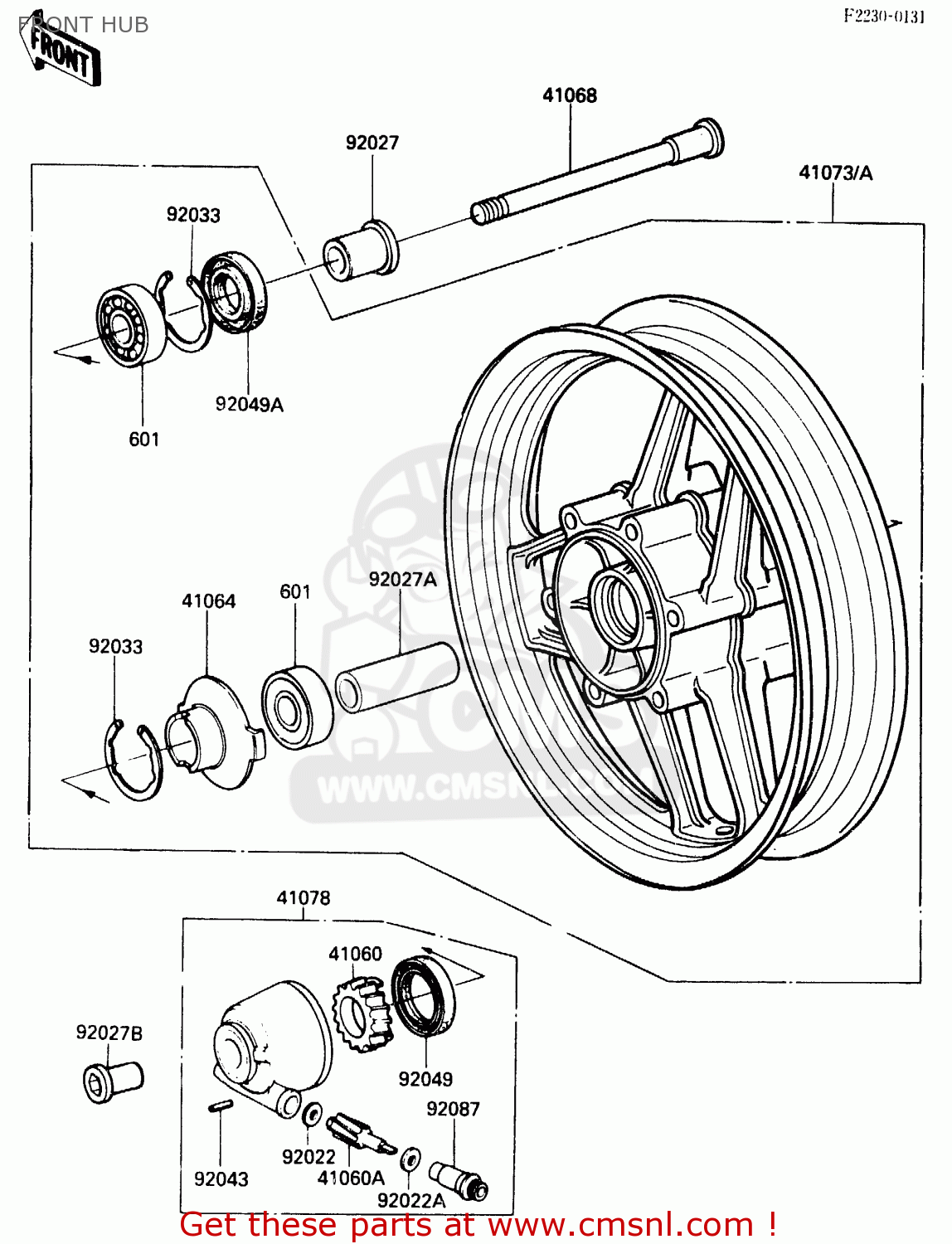

Front hub diagram ZX500A2 1986 EUROPE NR / KPH
FRONT HUB ZX500A2 1986 EUROPE NR / KPH
×
prices are in EUR
ref
part #
description
quantity
41060
410601025
ref: 41060
GEAR,SPEEDOMETER
€ 18.50
41060A
410601035
ref: 41060A
GEAR-METER SCREW,9T
€ 18.50
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681164
ref: 41068
AXLE,FR
€ 45.00
41073A
410731340R2
ref: 41073A
WHEEL-ASSY,FR,BLACK
€ 487.50
41078
410781057
ref: 41078
CASE-ASSY-METER GEAR
€ 124.00
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92022A
920221062
ref: 92022A
WASHER,PLAIN
€ 3.00
92027
920271225
ref: 92027
COLLAR,FR AXLE L=30MM
€ 11.50
92027A
920271725
ref: 92027A
COLLAR,L=71
€ 9.00
92027B
920271726
ref: 92027B
COLLAR,FR AXLE,L=36.5
€ 17.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
601
601B6302U
ref: 601
BEARING-BALL
€ 29.00
