TRANSMISSION
ZX1100G3 ZZR1100 1999 FG

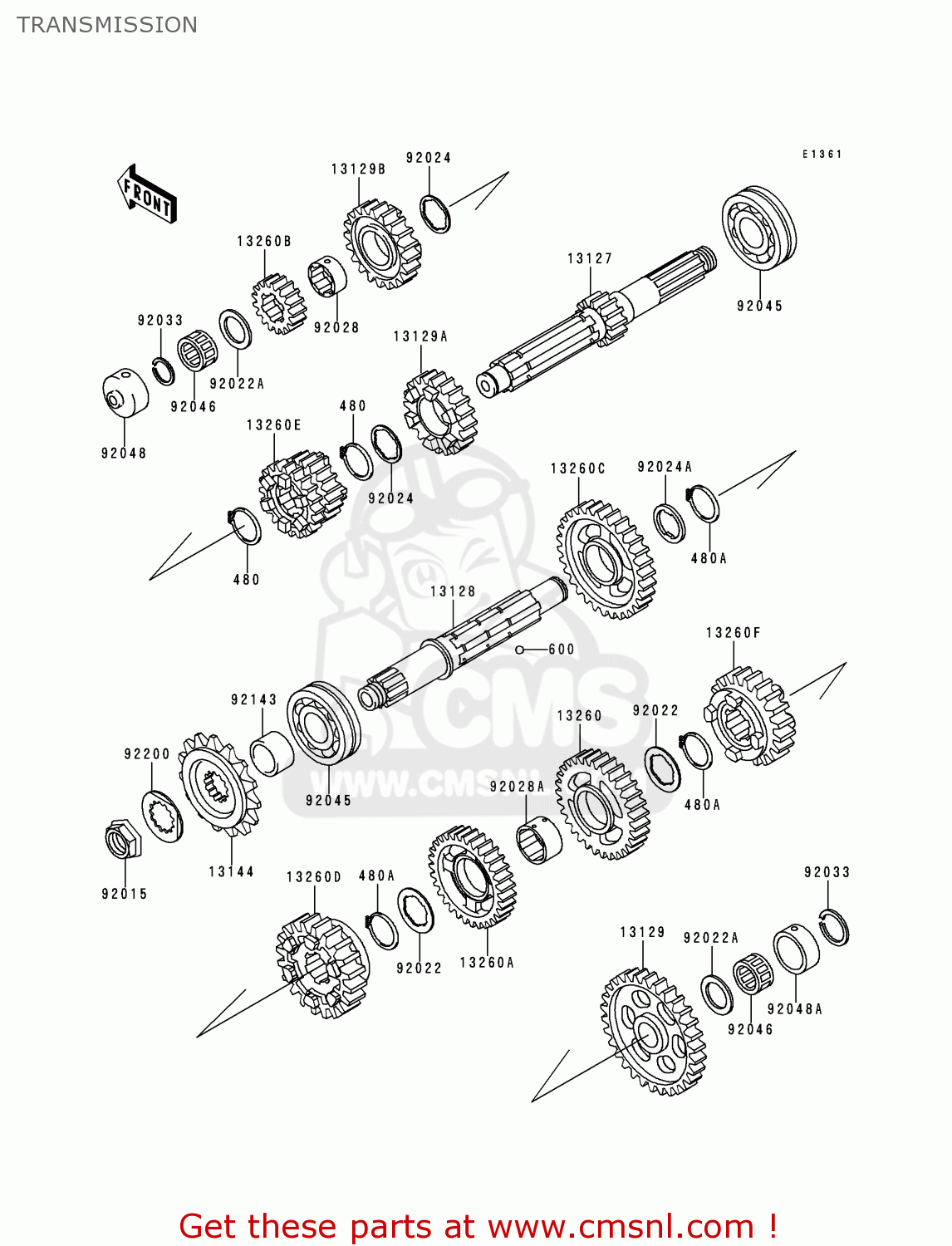

Transmission diagram ZX1100G3 ZZR1100 1999 FG
TRANSMISSION ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J2900
ref: 480A
CIRCLIP
€ 3.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271196
ref: 13127
SHAFT-TRANSMISSION IN
€ 209.00
13128
131281205
ref: 13128
SHAFT-TRANSMISSION OU
€ 212.00
13129
131291534
ref: 13129
GEAR,OUTPUT LOW,42T
€ 170.00
13129A
131291665
ref: 13129A
GEAR,INPUT 5TH,26T
€ 154.50
13129B
131291666
ref: 13129B
GEAR,INPUT TOP,28T
€ 128.00
13144
131441224
ref: 13144
SPROCKET-OUTPUT,17T
€ 42.50
13260
132601138
ref: 13260
GEAR,OUTPUT 3RD,35T
€ 130.00
13260A
132601139
ref: 13260A
GEAR,OUTPUT 4TH,32T
€ 180.00
13260B
132601298
ref: 13260B
GEAR,INPUT 2ND,18T
€ 117.00
13260C
132601299
ref: 13260C
GEAR,OUTPUT 2ND,37T
€ 161.50
13260D
132601300
ref: 13260D
GEAR,OUTPUT TOP,29T
€ 172.00
13260E
132601301
ref: 13260E
GEAR,INPUT 3RD&4TH,22
€ 179.50
13260F
132601302
ref: 13260F
GEAR,OUTPUT 5TH,30T
€ 142.50
92015
920151210
ref: 92015
NUT,20MM
€ 12.00
92022
920221728
ref: 92022
WASHER,TOOTHED,28X40X
€ 8.00
92022A
92022212
ref: 92022A
WASHER-PLAIN,22MM
€ 6.50
92024
92024042
ref: 92024
WASHER,TOOTHED,26X35.
€ 7.50
92024A
92024069
ref: 92024A
WASHER,TOOTHED,30.5X3
€ 3.50
92028
920281124
ref: 92028
BUSHING,TOP GEAR
€ 31.00
92028A
920281363
ref: 92028A
BUSHING,OUTPUT 3RD&4T
€ 30.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92045
920451186
ref: 92045
BEARING-BALL
€ 73.00
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481052
ref: 92048
RACE,INPUT SHAFT
€ 59.50
92048A
920481053
ref: 92048A
RACE,30X38X15
€ 27.50
92143
921431649
ref: 92143
COLLAR,SPROCKET
€ 16.00
92200
922001234
ref: 92200
WASHER,TOOTHED,23.9X4
€ 4.00
