COWLING
ZX1100G3 ZZR1100 1999 FG

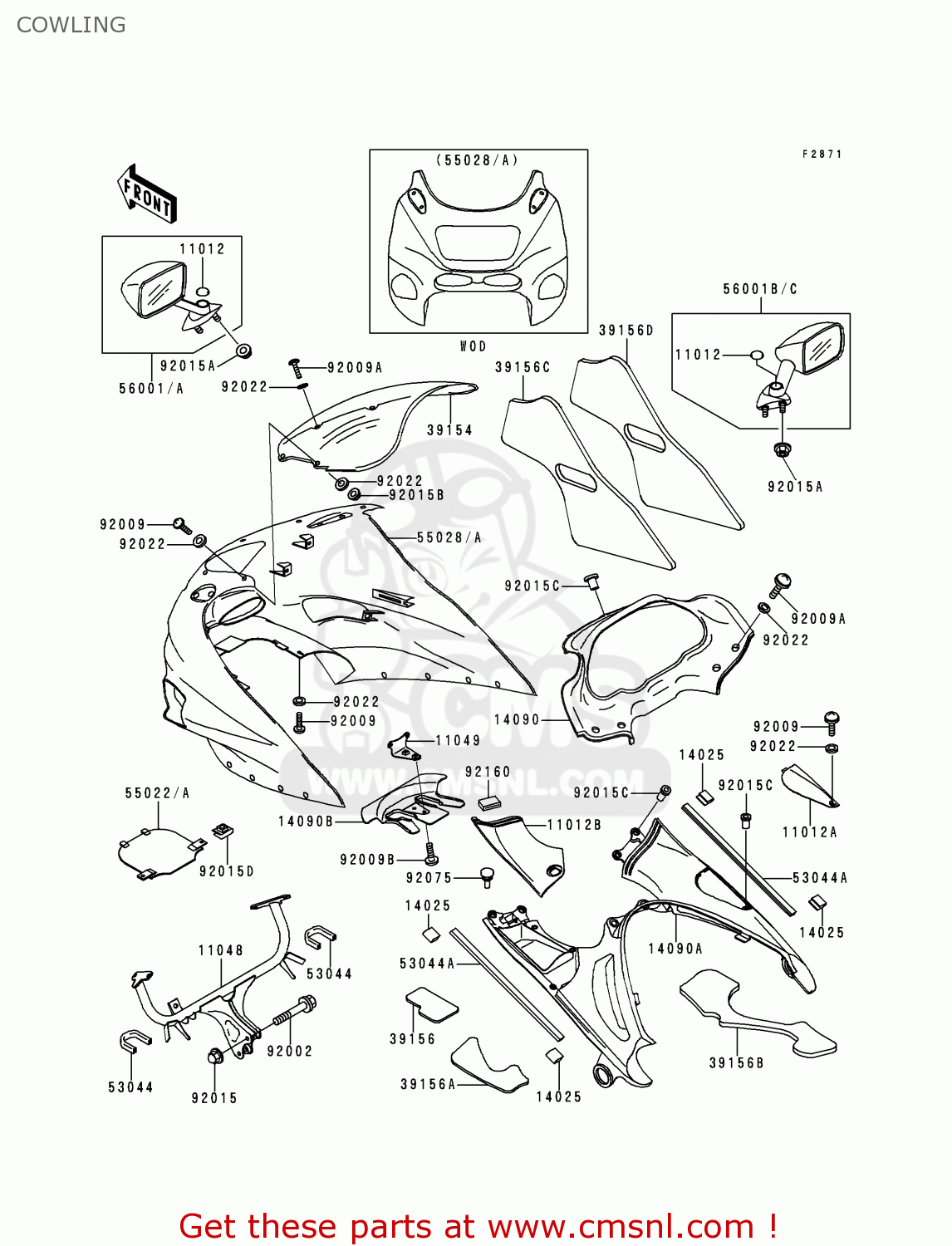

Cowling diagram ZX1100G3 ZZR1100 1999 FG
COWLING ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
11012
1101217516Z
ref: 11012
CAP,MIRROR,BLACK
€ 2.50
11012A
11012187611
ref: 11012A
CAP,INNER COWLING,RH,
€ 42.00
11012B
11012187711
ref: 11012B
CAP,INNER COWLING,LH,
€ 42.00
11048
110481884
ref: 11048
BRACKET,UPP COWLING
€ 243.50
11049
110491070
ref: 11049
BRACKET
€ 22.50
14025
140251756
ref: 14025
COVER,TRIM END
€ 4.50
14090
14090141811
ref: 14090
COVER,INNER COWLING,F
€ 108.50
14090A
14090142711
ref: 14090A
COVER,INNER COWLING,R
€ 113.00
14090B
140901565
ref: 14090B
COVER,HOSE&CABLE
€ 16.50
39154
391541122
ref: 39154
WINDSHIELD
€ 184.50
39156
391561329
ref: 39156
PAD,INNER COWLING,LH,
€ 6.00
39156A
391561330
ref: 39156A
PAD,INNER COWLING,LH,
€ 8.00
39156B
391561331
ref: 39156B
PAD,INNER COWLING,RH
€ 8.00
39156C
391561451
ref: 39156C
PAD,UPP COWLING,LH
€ 12.00
39156D
391561452
ref: 39156D
PAD,UPP COWLING,RH
€ 12.00
53044
530441200
ref: 53044
TRIM-HEADLAMP COVER
€ 5.00
53044A
530441255
ref: 53044A
TRIM,L=385
€ 16.50
55022
550221074H3
ref: 55022
COVER-HEAD LAMP,C.W.R
€ 108.00
55022A
550221074H8
ref: 55022A
COVER-HEAD LAMP,EBONY
€ 101.50
55028
550281300H3
ref: 55028
COWLING,UPP,C.W.RED
€ 345.00
55028A
550281300H8
ref: 55028A
COWLING,UPP,EBONY
€ 472.00
56001
560011390H3
ref: 56001
MIRROR-ASSY,LH,C.W.RE
€ 130.00
56001A
560011390H8
ref: 56001A
MIRROR-ASSY,LH,EBONY
€ 130.00
56001B
560011391H3
ref: 56001B
MIRROR-ASSY,RH,C.W.RE
€ 136.00
56001C
560011391H8
ref: 56001C
MIRROR-ASSY,RH,EBONY
€ 136.00
92002
920021198
ref: 92002
BOLT,8X35
€ 3.00
92009
920091654
ref: 92009
SCREW
€ 0.50
92009A
920091657
ref: 92009A
SCREW
€ 2.50
92009B
920091661
ref: 92009B
SCREW
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
€ 3.50
92015B
920151263
ref: 92015B
NUT,LOCK 5MM
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
€ 5.00
92015D
920151798
ref: 92015D
NUT
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92075
920751808
ref: 92075
DAMPER,6X10X15
€ 1.50
92160
921601190
ref: 92160
DAMPER
€ 2.50
