MUFFLER(S)
ZX1100G3 ZZR1100 1999 FG

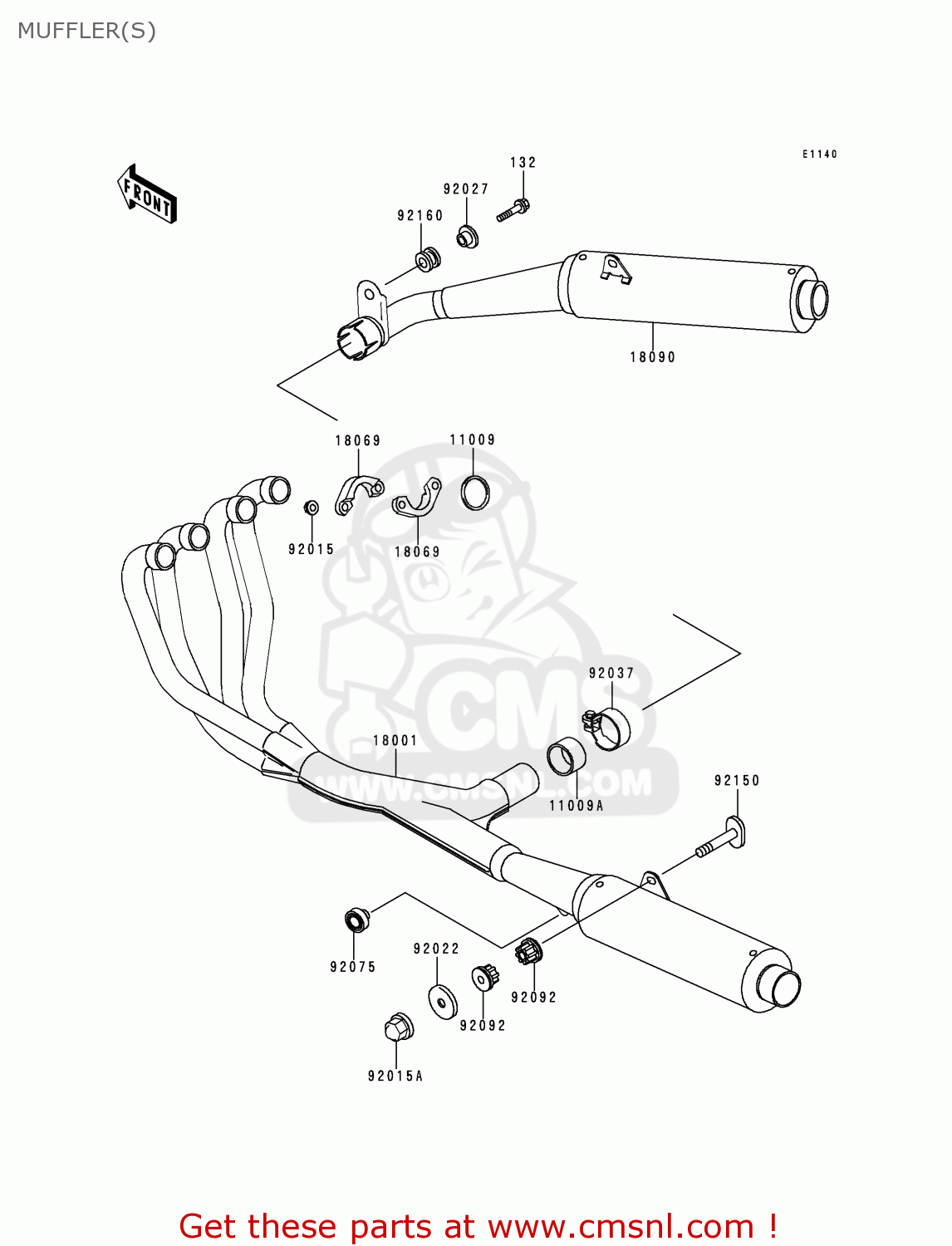

Muffler(s) diagram ZX1100G3 ZZR1100 1999 FG
MUFFLER(S) ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
132
132G0835
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
11009
110091840
ref: 11009
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
11009A
110091888
ref: 11009A
GASKET,MUFFLER CONNEC (NAS)
€ 27.00
18001
180011953
ref: 18001
MUFFLER,LH
€ 1,496.00
18069
180691122
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
18090
180901568
ref: 18090
BODY-COMP-MUFFLER,RH
€ 853.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151649
ref: 92015A
NUT,10MM
€ 3.50
92022
92022289
ref: 92022
WASHER,PLAIN
€ 11.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371537
ref: 92037
CLAMP,POWER CHAMBER
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
92150
921501792
ref: 92150
BOLT,10X55
€ 5.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
