FRONT FORK
ZX1100G3 ZZR1100 1999 FG

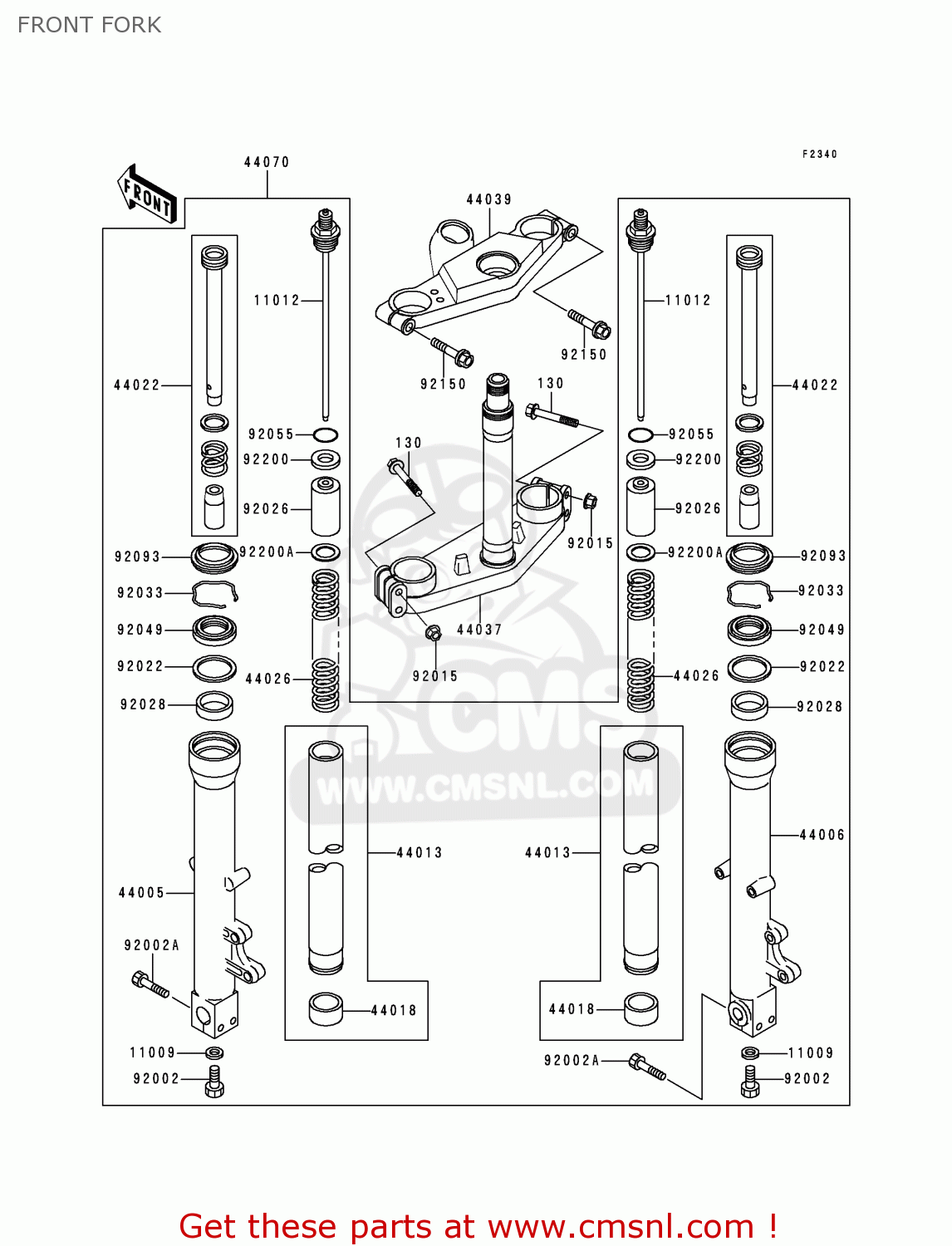

Front fork diagram ZX1100G3 ZZR1100 1999 FG
FRONT FORK ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11012
110121848
ref: 11012
CAP,FORK
€ 209.00
44005
440051378EZ
ref: 44005
PIPE-LEFT FORK OUTER,
€ 375.50
44006
440061377EZ
ref: 44006
PIPE-RIGHT FORK OUTER
€ 375.50
44013
440131384
ref: 44013
PIPE-FORK INNER
€ 259.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
€ 19.00
44022
440221287
ref: 44022
CYLINDER-FORK
€ 132.50
44026
440261579
ref: 44026
SPRING-FRONT FORK
€ 71.50
44037
440371312
ref: 44037
HOLDER-FORK UNDER
€ 376.50
44039
440391237EZ
ref: 44039
HOLDER-FORK UPPER,C.G
€ 225.00
44070
440701588EZ
ref: 44070
DAMPER-ASSY,FORK SET,
€ 1,820.50
92002
920021650
ref: 92002
BOLT,FORK DRAIN
€ 10.00
92002A
920021847
ref: 92002A
BOLT,SOCKET,8X45
€ 3.00
92015
920151485
ref: 92015
NUT,FLANGED,8MM
€ 3.50
92022
920221299
ref: 92022
WASHER
€ 5.50
92026
920261421
ref: 92026
SPACER,FORK,L=125
€ 6.00
92028
920281581
ref: 92028
BUSHING
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
€ 3.00
92049
920491392
ref: 92049
SEAL-OIL,FORK OUTER T
€ 15.00
92055
920551123
ref: 92055
RING-O
€ 4.00
92093
920931330
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.50
92150
921501210
ref: 92150
BOLT,FLANGED,10X45
€ 6.00
92200
922001023
ref: 92200
WASHER
€ 6.00
92200A
922001253
ref: 92200A
WASHER
€ 4.50
