CARBURETOR
ZX1100G3 ZZR1100 1999 FG

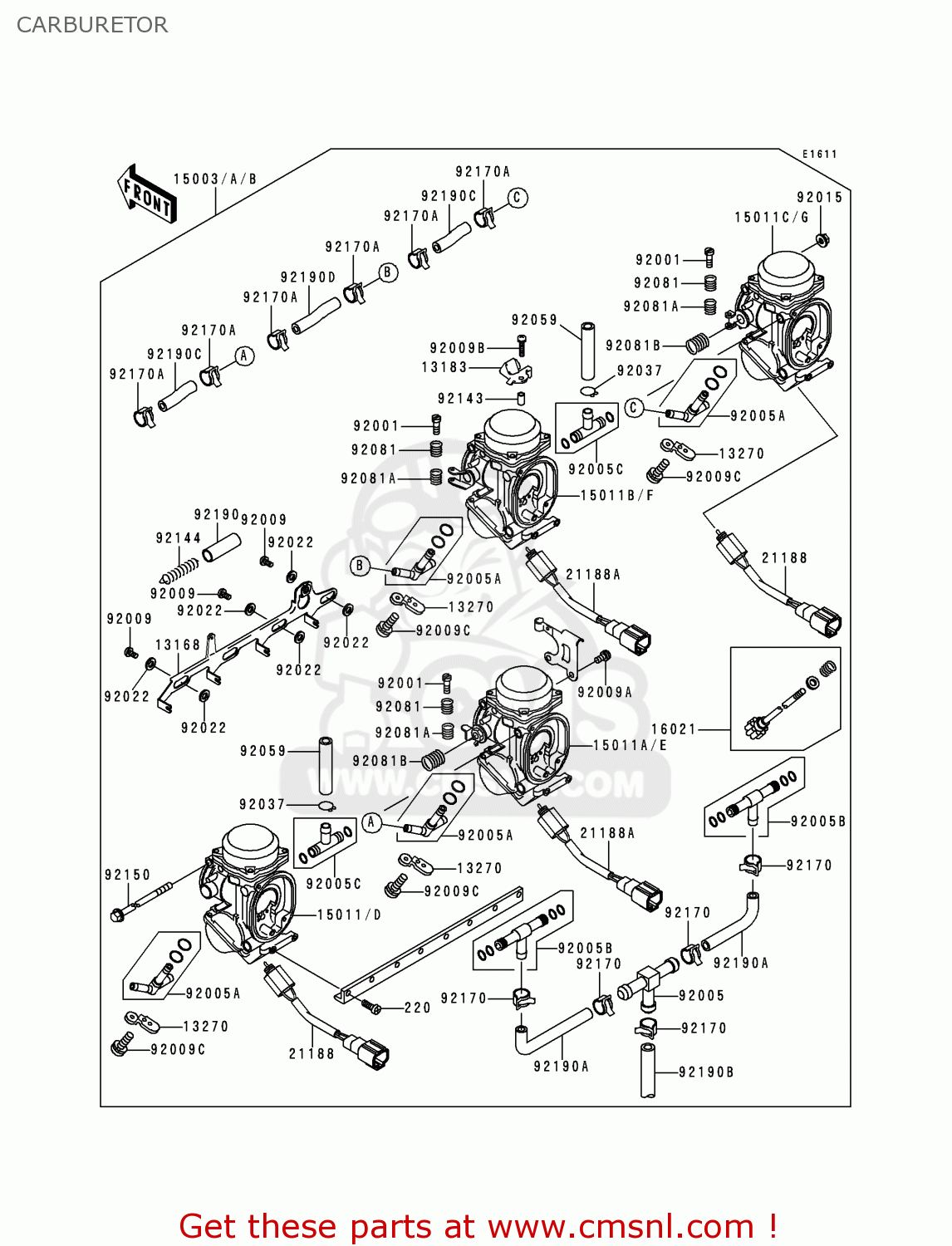

Carburetor diagram ZX1100G3 ZZR1100 1999 FG
CARBURETOR ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
€ 26.00
13270
132701080
ref: 13270
PLATE,FITTING STAY
€ 4.50
15003A
150031310
ref: 15003A
CARBURETOR-ASSY
€ 1,675.00
15003B
150031496
ref: 15003B
CARBURETOR-ASSY
€ 2,190.50
15011D
150111611
ref: 15011D
CARBURETOR,LH,OUTSIDE
€ 1,030.00
15011E
150111612
ref: 15011E
CARBURETOR,LH,INSIDE
€ 1,030.00
15011F
150111613
ref: 15011F
CARBURETOR,RH,INSIDE
€ 1,030.00
15011G
150111614
ref: 15011G
CARBURETOR,RH,OUTSIDE
€ 1,030.00
16021
160211190
ref: 16021
SCREW-THROTTLE STOP
€ 81.00
21188
211881002
ref: 21188
SOLENOID,#1
€ 133.00
21188A
211881003
ref: 21188A
SOLENOID,#2
€ 140.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051291
ref: 92005A
FITTING
€ 26.50
92005B
920051294
ref: 92005B
FITTING
€ 22.00
92005C
920051338
ref: 92005C
FITTING
€ 17.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091632
ref: 92009B
SCREW
€ 4.00
92009C
920091704
ref: 92009C
SCREW
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
€ 3.50
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
€ 3.00
92144
921441518
ref: 92144
SPRING,STARTER LEVER
€ 14.50
92150
921501211
ref: 92150
BOLT,5X305
€ 17.50
92170
921701051
ref: 92170
CLAMP,TUBE
€ 5.50
92170A
921701504
ref: 92170A
CLAMP
€ 3.00
92190
921901157
ref: 92190
TUBE,STARTER SPRING
€ 4.50
92190A
921901165
ref: 92190A
TUBE,L=110
€ 25.00
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
92190B
921901466
ref: 92190B
TUBE 7.3X12.5X70+27
€ 19.50
92190C
921901530
ref: 92190C
TUBE,WATER
€ 7.50
92190D
921901531
ref: 92190D
TUBE,WATER
€ 7.50
