TAILLIGHT(S)
ZX1100G3 ZZR1100 1999 FG

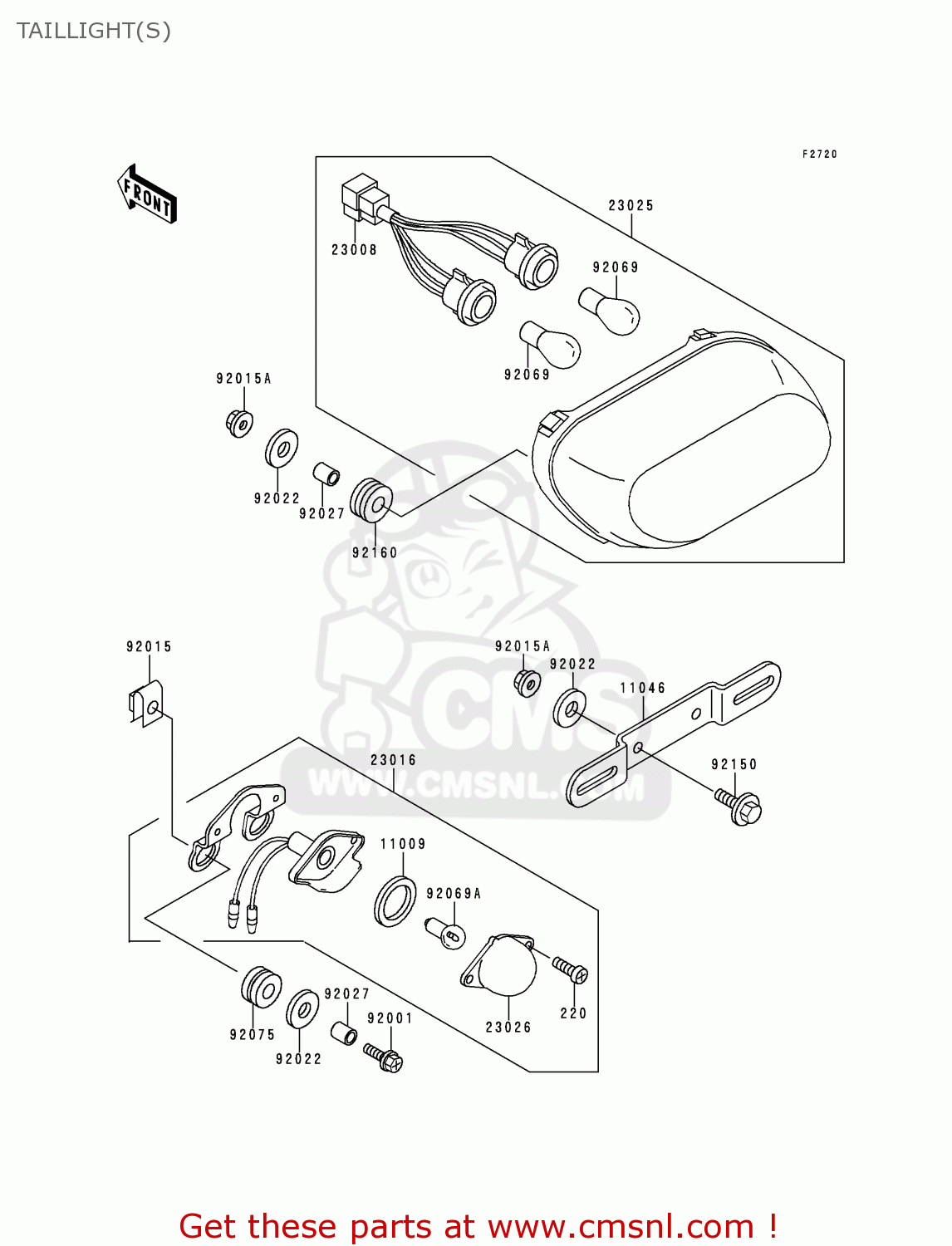

Taillight(s) diagram ZX1100G3 ZZR1100 1999 FG
TAILLIGHT(S) ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11046
110461109
ref: 11046
BRACKET,LICENSE PLATE
€ 13.00
23008
230081364
ref: 23008
SOCKET-ASSY,TAIL LAMP
€ 32.50
23016
230161127
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 44.00
23025
230251234
ref: 23025
LAMP-TAIL
€ 174.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
92001
920011524
ref: 92001
BOLT, 6X25
€ 1.50
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
92075209
ref: 92075
DAMPER RUBBER
€ 3.00
92150
921501909
ref: 92150
BOLT
€ 3.00
92160
921601162
ref: 92160
DAMPER
€ 3.00
