OIL COOLER
ZX1100G3 ZZR1100 1999 FG

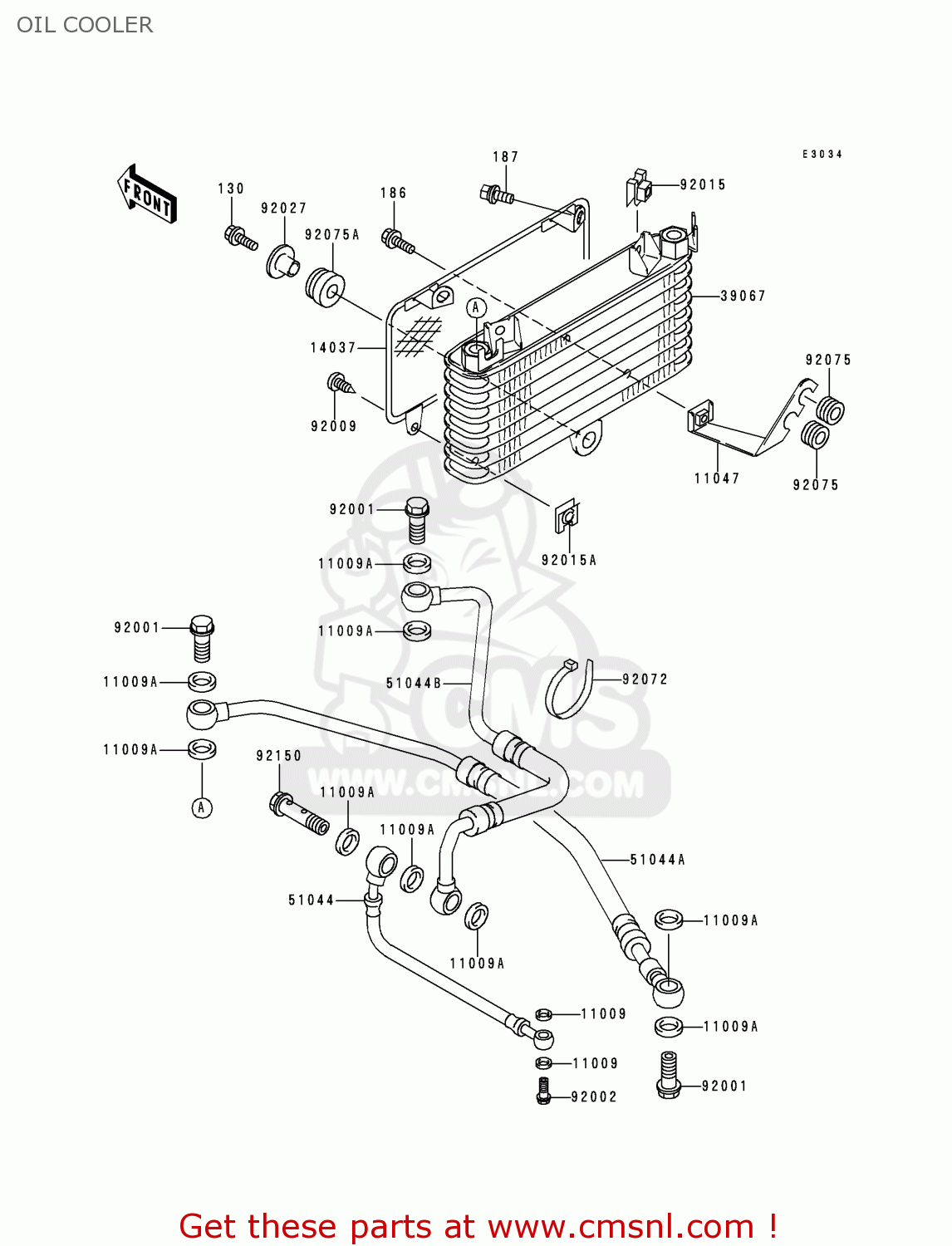

Oil cooler diagram ZX1100G3 ZZR1100 1999 FG
OIL COOLER ZX1100G3 ZZR1100 1999 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
186
186G0612
ref: 186
BOLT-UPSET-WP
€ 1.50
187
187G0616
ref: 187
BOLT-UPSET-WSP
€ 1.50
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11009A
110091461
ref: 11009A
GASKET,14X19.5X1.4 (NAS)
€ 3.50
11047
110471888
ref: 11047
BRACKET,OIL TUBE
€ 13.50
14037
140371173
ref: 14037
SCREEN,OIL COOLER
€ 45.00
39067
390671060
ref: 39067
COOLER-OIL
€ 555.00
51044
510441130
ref: 51044
TUBE-ASSY,OIL
€ 155.00
51044A
510441152
ref: 51044A
TUBE-ASSY,LH
€ 216.00
51044B
510441153
ref: 51044B
TUBE-ASSY,RH
€ 179.50
92001
920011930
ref: 92001
BOLT,14X28.5
€ 6.50
92002
920021429
ref: 92002
BOLT,8X20
€ 7.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92027
920271651
ref: 92027
COLLAR
€ 2.50
92072
920721237
ref: 92072
BAND,L=250
€ 2.00
92075
920751942
ref: 92075
DAMPER,OIL COOLER
€ 3.50
92075A
92075277
ref: 92075A
DAMPER
€ 1.00
92150
921501324
ref: 92150
BOLT
€ 15.00
