MUFFLER
ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

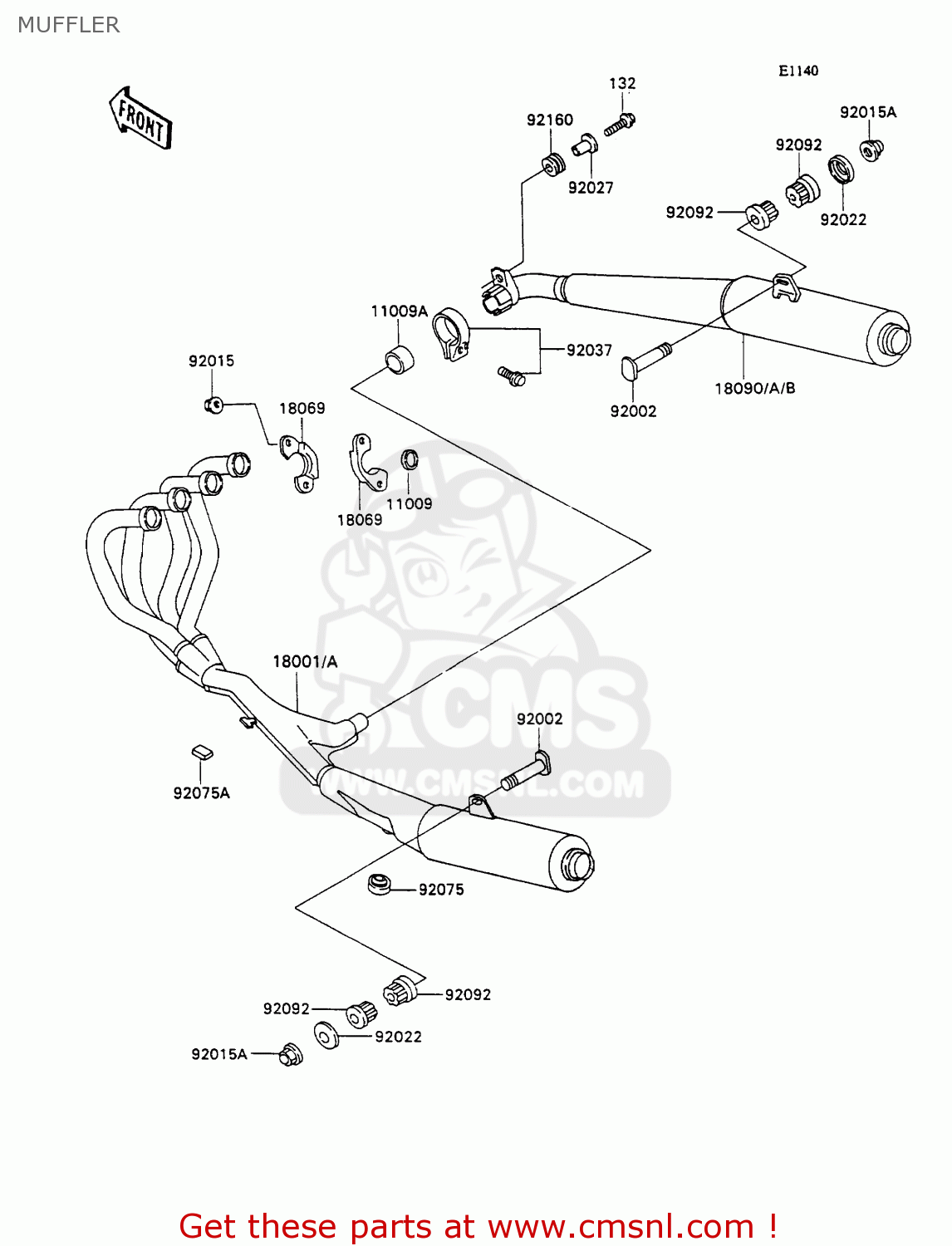

Muffler diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
MUFFLER ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
132
132G0835
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
11009
110091840
ref: 11009
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
11009A
110091888
ref: 11009A
GASKET,MUFFLER CONNEC (NAS)
€ 27.00
18001
180011788
ref: 18001
MUFFLER,LH
€ 847.00
18069
180691054
ref: 18069
HOLDER-EXHAUST PIPE
€ 16.50
18090
180021942
ref: 18090
UK
BODY-COMP-MUFFLER,RH
€ 471.50
18090B
180901070
ref: 18090B
FG
BODY-COMP-MUFFLER,RH
€ 393.00
92002
920021939
ref: 92002
BOLT,10X55
€ 5.50
92015
920151380
ref: 92015
NUT,LOCK,8MM
€ 3.00
92015A
920151749
ref: 92015A
NUT,CAP,10MM
€ 2.50
92022
920221355
ref: 92022
WASHER
€ 3.50
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371537
ref: 92037
CLAMP,POWER CHAMBER
€ 14.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
920751446
ref: 92075A
DAMPER,SIDE COVER
€ 3.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
