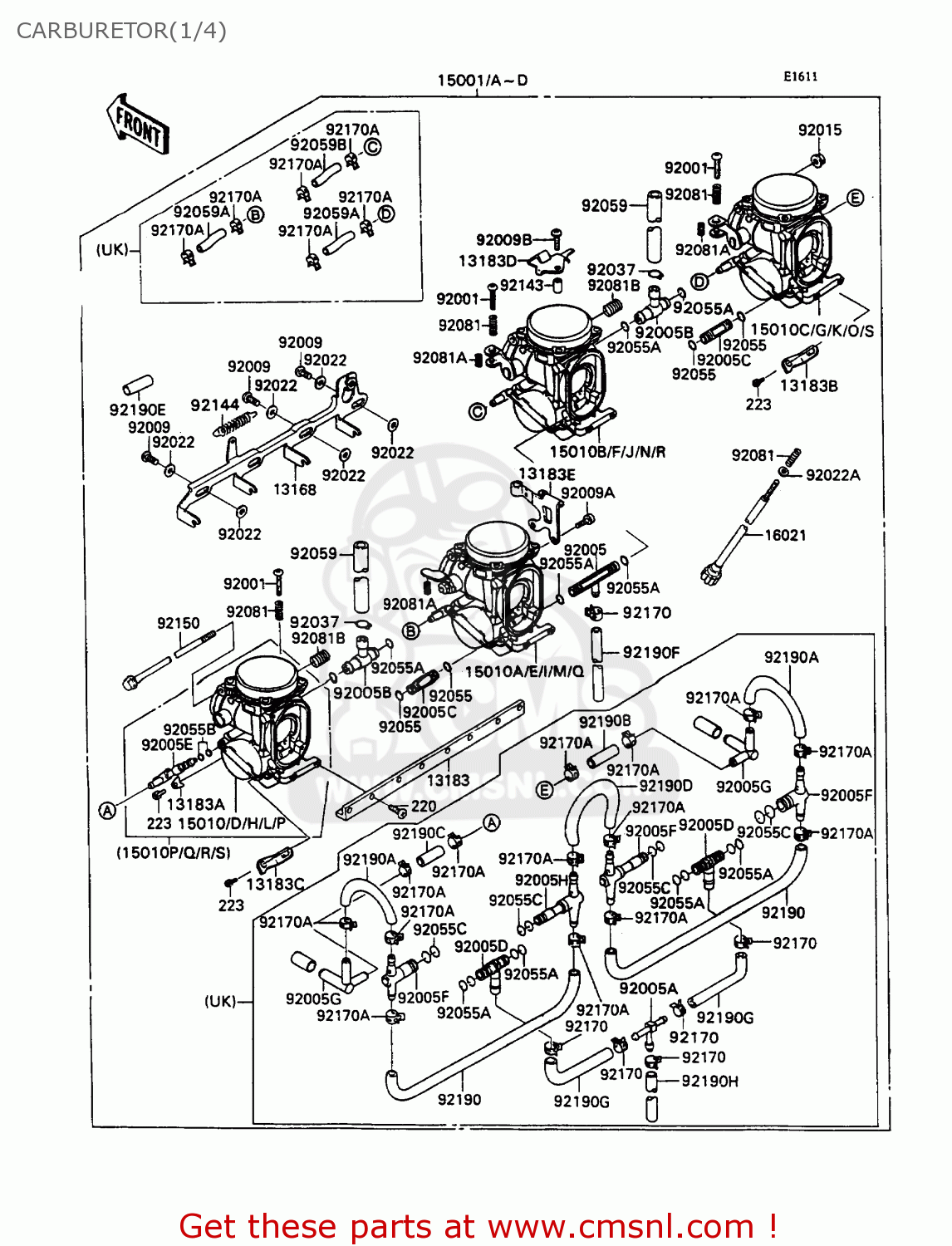

CARBURETOR(1/4)

ref

part #

description

quantity

13168

131681405
ref: 13168

LEVER,STARTER

€ 87.00

13183

131831321
ref: 13183

PLATE,CARBURETOR,STAY

€ 59.50

13183A

131831323
ref: 13183A
UK

PLATE,FITTING

€ 7.50

13183B

131831452
ref: 13183B
UK

PLATE,RH

€ 9.50

13183C

131831453
ref: 13183C
UK

PLATE,LH

€ 9.50

13183D

131831592
ref: 13183D

PLATE,STARTER CABLE

€ 26.00

13183E

131831606
ref: 13183E

PLATE,THROTTLE CABLE

€ 36.00

15001A

150011580
ref: 15001A
UK

CARBURETOR-ASSY

€ 2,038.50

15001B

150011582
ref: 15001B
FG

CARBURETOR-ASSY

€ 2,038.50

15010

150101087
ref: 15010
FG

CARBURETOR,LH,OUTSIDE

€ 487.00

15010A

150101088
ref: 15010A
FG

CARBURETOR,LH,INSIDE

€ 615.50

15010B

150101089
ref: 15010B
FG

CARBURETOR,RH,INSIDE

€ 487.00

15010C

150101090
ref: 15010C
FG

CARBURETOR,RH,OUTSIDE

€ 487.00

15010P

150101107
ref: 15010P
UK

CARBURETOR,LH,OUTSIDE

€ 487.00

15010Q

150101108
ref: 15010Q
UK

CARBURETOR,LH,INSIDE

€ 487.00

15010R

150101109
ref: 15010R
UK

CARBURETOR,RH,INSIDE

€ 487.00

15010S

150101110
ref: 15010S
UK

CARBURETOR,RH,OUTSIDE

€ 615.50

16021

160211131
ref: 16021

SCREW-THROTTLE STOP

€ 77.50

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92005

920051108
ref: 92005
FG

FITTING,FUEL,T-TYPE

€ 16.50

92005A

920051119
ref: 92005A
UK

FITTING,T-TYPE

€ 17.50

92005B

920051125
ref: 92005B

FITTING,T-TYPE

€ 18.00

92005C

920051157
ref: 92005C
FG

FITTING

€ 25.00

92005D

920051179
ref: 92005D
UK

FITTING,T-TYPE

€ 21.00

92005E

920051191
ref: 92005E
UK

FITTING,T-TYPE

€ 17.50

92005F

920051192
ref: 92005F
UK

FITTING,T-TYPE

€ 17.50

92005G

920051193
ref: 92005G
UK

FITTING

€ 12.00

92005H

920051200
ref: 92005H
UK

FITTING

€ 18.50

92009

920091262
ref: 92009

SCREW

€ 4.00

92009A

920091365
ref: 92009A

SCREW

€ 4.50

92009B

920091632
ref: 92009B

SCREW

€ 4.00

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50

92022

920221199
ref: 92022

WASHER,6.1X11X0.8,POL

€ 3.00

92022A

920221480
ref: 92022A

WASHER,PLAIN,STOP SPR

€ 3.00

92037

920371194
ref: 92037

CLAMP,TUBE,TAP DIAPRM

€ 4.00

92055

920551004
ref: 92055
FG

O RING

€ 2.50

92055A

920551223
ref: 92055A
FG

RING-O,FUEL FITTING

€ 3.50

92055A

920551223
ref: 92055A
UK

RING-O,FUEL FITTING

€ 3.50

92055B

920551427
ref: 92055B
UK

RING-O,4.5X1.5

€ 3.00

92055C

920551454
ref: 92055C
UK

RING-O

€ 4.00

92059

920591738
ref: 92059

TUBE,7X11X45

€ 17.00

92059A

920591976
ref: 92059A
UK

TUBE,4X10X59

€ 9.00

92059B

920591977
ref: 92059B
UK

TUBE,4X10X70

€ 9.00

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92081A

920811621
ref: 92081A

SPRING,THROTTLE ADJUS

€ 3.00

92081B

920811622
ref: 92081B

SPRING,THROTTLE ADJUS

€ 6.50

92143

921431265
ref: 92143

COLLAR,4X5.2X9.6

€ 3.00

92144

921441518
ref: 92144

SPRING,STARTER LEVER

€ 14.50

92150

921501211
ref: 92150

BOLT,5X305

€ 17.50

220

220D0514
ref: 220

SCREW-PAN-CROS

€ 2.50

223

223C0414
ref: 223
UK

SCREW-PAN-WS-CROS

€ 2.50

92170

921701051
ref: 92170
FG

CLAMP,TUBE

€ 5.50

92170

921701051
ref: 92170
UK

CLAMP,TUBE

€ 5.50

92170A

921701054
ref: 92170A
UK

CLAMP,TUBE

€ 5.00

92190

921901030
ref: 92190
UK

TUBE,L=200

€ 9.00

92190A

921901031
ref: 92190A
UK

TUBE,L=125

€ 9.00

92190B

921901032
ref: 92190B
UK

TUBE,L=40

€ 3.50

92190C

921901033
ref: 92190C
UK

TUBE,L=25

€ 9.00

92190D

921901043
ref: 92190D
UK

TUBE

€ 13.00

92190E

921901157
ref: 92190E

TUBE,STARTER SPRING

€ 4.50

92190F

921901161
ref: 92190F
FG

TUBE,7.3X12.5X127

€ 19.50

92190G

921901165
ref: 92190G
UK

TUBE,L=110

€ 25.00

92190H

921901167
ref: 92190H
UK

TUBE,7.3X12.5X67

€ 19.50

all assemblies
