FENDER
ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

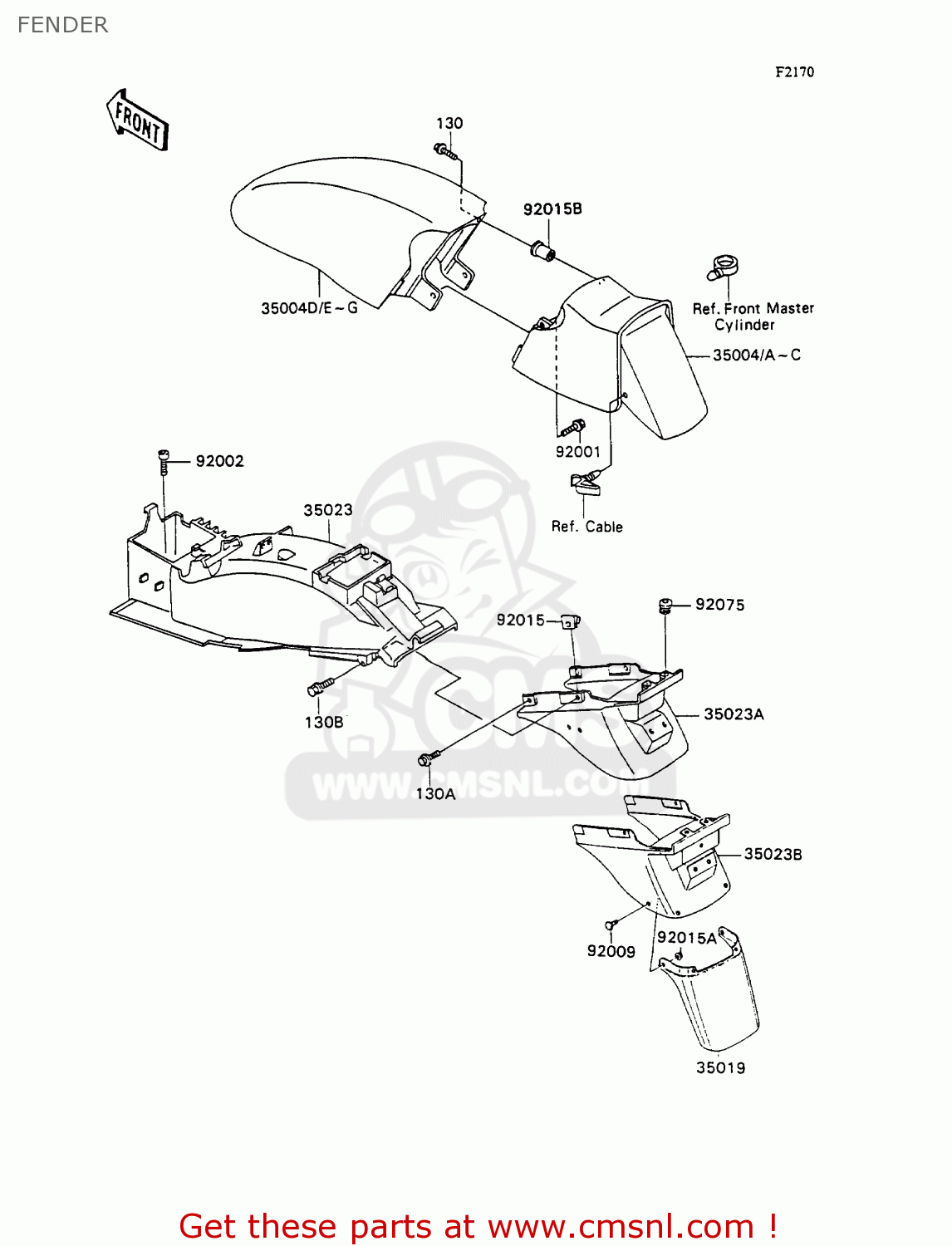

Fender diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
FENDER ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0520
ref: 130
BOLT-FLANGED
€ 2.00
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
130B
130J0635
ref: 130B
BOLT-FLANGED,6X35
€ 3.00
35004A
350041255H8
ref: 35004A
FENDER-FRONT,RR,EBONY
€ 131.00
35004C
350041255KL
ref: 35004C
FENDER-FRONT,RR,VIOLE
€ 94.00
35004E
350041275H8
ref: 35004E
FENDER-FRONT,FR,EBONY
€ 176.00
35004G
350041275KL
ref: 35004G
FENDER-FRONT,FR,VIOLE
€ 111.50
35019
350191259
ref: 35019
FG
FLAP,REAR FENDER
€ 12.00
35023
350231257
ref: 35023
FENDER-REAR,FR
€ 97.50
35023A
350231262
ref: 35023A
UK
FENDER-REAR,RR
€ 77.00
35023B
350231263
ref: 35023B
FG
FENDER-REAR,RR
€ 68.50
92001
920011763
ref: 92001
BOLT,W/SP,6X16
€ 3.00
92002
920021884
ref: 92002
BOLT,6X12
€ 2.50
92009
920091182
ref: 92009
FG
SCREW,5X12,BLACK
€ 1.50
92015
920151094
ref: 92015
NUT,MUFFLER
€ 5.50
92015A
920151328
ref: 92015A
FG
NUT,FLANGED,5MM
€ 2.00
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92075
920751011
ref: 92075
DAMPER,6X16X7
€ 5.00
