FRAME

ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

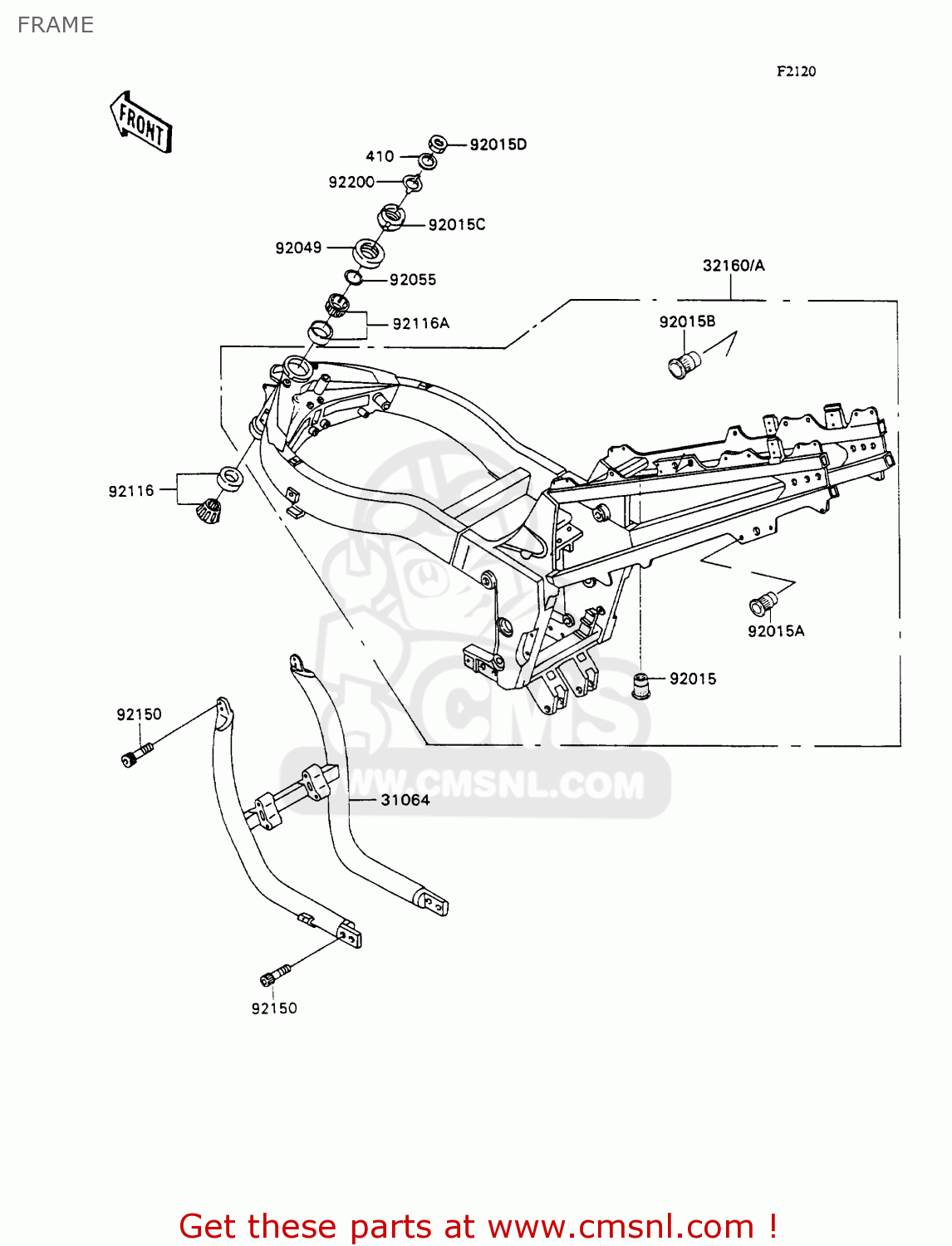

Frame diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

prices are in EUR

ref

part #

description

quantity

410

410F2000
ref: 410

W-PLAIN-S,20MM

€ 2.50

31064

310641114GD
ref: 31064

PIPE-COMP,SIDE FRAME

€ 531.00

32160

321601108GD
ref: 32160

FRAME-COMP,G.GRAY

€ 1,813.00

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92015A

920151792
ref: 92015A

NUT,POP,6MM,L=16.5

€ 3.00

92015B

920151794
ref: 92015B

NUT,POP,8MM

€ 3.00

92015C

920151813
ref: 92015C

NUT,28MM

€ 11.00

92015D

92016028
ref: 92015D

NUT

€ 9.50

92049

920491351
ref: 92049

SEAL-OIL,XMH36X70X6.4

€ 9.50

92055

920551470
ref: 92055

RING-O,27.5X2

€ 2.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00

92116A

921161067
ref: 92116A

BEARING-ROLLER,HR320/

€ 76.50

92150

921501405
ref: 92150

BOLT,SOCKET,10X30

€ 4.00

92200

922001041
ref: 92200

WASHER,CLAW,20.5X32X2

€ 3.00
