AIR FILTER
ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

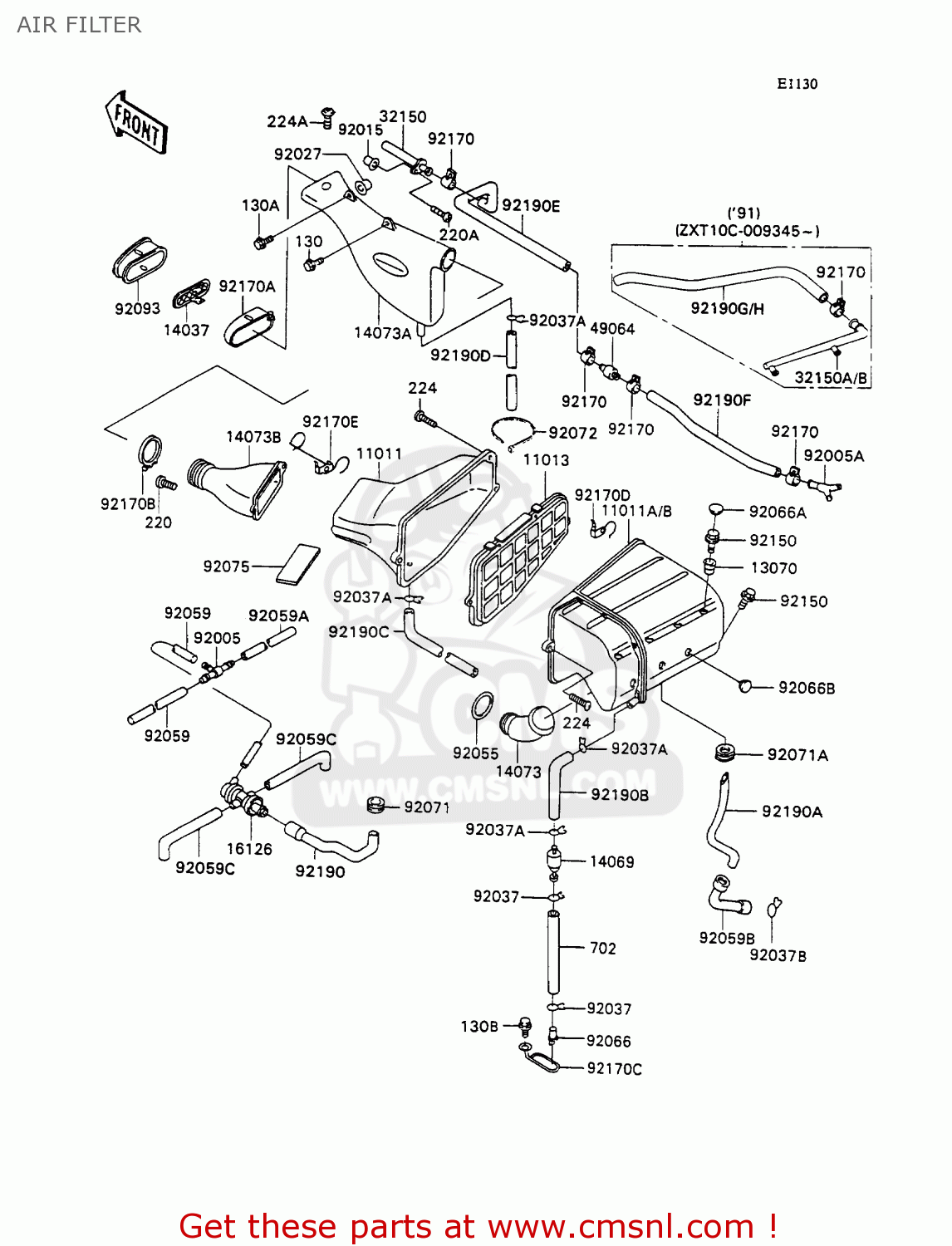

Air filter diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
AIR FILTER ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11011
110111318
ref: 11011
CASE-AIR FILTER,DIRT
€ 85.00
11011B
110111326
ref: 11011B
CASE-AIR FILTER,CLEAN
€ 121.00
11013
110131188
ref: 11013
ELEMENT-AIR FILTER
€ 43.00
13070
130701230
ref: 13070
GUIDE,AIR FILTER
€ 3.00
14037
140371130
ref: 14037
SCREEN,AIR DUCT
€ 3.50
14069
140691051
ref: 14069
BREATHER
€ 6.50
14073
140731419
ref: 14073
DUCT,CARBURETOR
€ 22.50
14073A
140731420
ref: 14073A
DUCT,AIR INTAKE
€ 30.50
14073B
140731421
ref: 14073B
DUCT,AIR FILTER
€ 42.00
32150
321501568
ref: 32150
PIPE
€ 7.00
32150A
321501820
ref: 32150A
PIPE
€ 64.50
49064
490641055
ref: 49064
FILTER-AIR
€ 11.50
92015
920151640
ref: 92015
NUT
€ 5.00
92027
920271166
ref: 92027
COLLAR,FRONT FENDER
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371972
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
92037213
ref: 92037B
CLAMP, BREATHER TUBE
€ 2.50
92055
920551434
ref: 92055
RING-O,67.7X3.1
€ 6.50
92059B
920591551
ref: 92059B
TUBE
€ 13.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
€ 0.50
130A
130G0620
ref: 130A
BOLT,FLANGED,6X20
€ 2.50
130B
130J0610
ref: 130B
BOLT-FLANGED
€ 1.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
220A
220C0520
ref: 220A
SCREW-PAN-CROS
€ 0.50
224
224B0630
ref: 224
SCREW-PAN-WP-CROS
€ 2.00
224A
224C0514
ref: 224A
SCREW-PAN-WP-CROS,5X1
€ 0.50
702
702A07325
ref: 702
TUBE-RUBBER
€ 6.50
92066
920661211
ref: 92066
PLUG
€ 5.50
92066A
920661306
ref: 92066A
PLUG
€ 3.50
92066B
920661324
ref: 92066B
PLUG
€ 2.50
92071A
920711165
ref: 92071A
GROMMET
€ 6.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92075
920751903
ref: 92075
DAMPER,BATTERY BAND
€ 2.50
92093
920931310
ref: 92093
SEAL,AIR DUCT
€ 10.00
92150
921501363
ref: 92150
BOLT
€ 2.50
92170
921701060
ref: 92170
CLAMP
€ 6.00
92170A
921701148
ref: 92170A
CLAMP
€ 16.50
92170B
921701149
ref: 92170B
CLAMP
€ 7.50
92170C
921701191
ref: 92170C
CLAMP
€ 7.00
92170D
921701221
ref: 92170D
CLAMP,AIR FILTER
€ 5.50
92170E
921701246
ref: 92170E
CLAMP,AIR FILTER
€ 7.00
92190A
921901077
ref: 92190A
TUBE,BLOWBY
€ 14.50
92190B
921901100
ref: 92190B
TUBE,CLEAN SIDE
€ 9.00
92190C
921901101
ref: 92190C
TUBE,DIRT SIDE
€ 10.50
92190D
921901103
ref: 92190D
TUBE,8X12X650
€ 8.00
92190E
921901120
ref: 92190E
TUBE,15X20X1000
€ 19.50
92190G
921901189
ref: 92190G
TUBE,AIR FILTER
€ 10.00
