CARBURETOR PARTS

ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

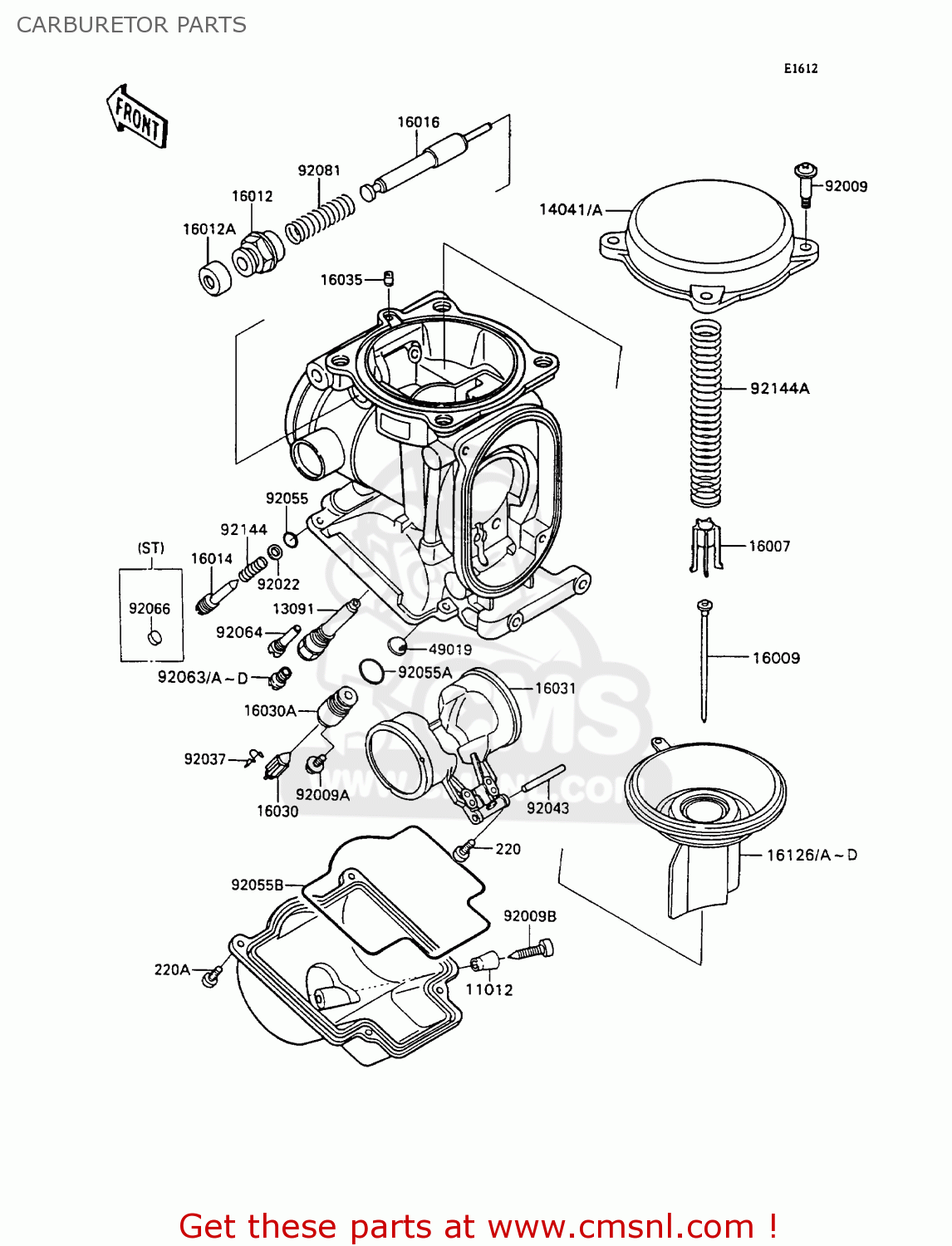

Carburetor parts diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

CARBURETOR PARTS ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
CARBURETOR PARTS ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
CARBURETOR PARTS ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
prices are in EUR
ref
part #
description
quantity
11012
110121675
ref: 11012
CAP,DRAIN SCREW
110121675
€ 6.00
13091
130911698
ref: 13091
HOLDER,NEEDLE JET
130911698
€ 27.50
14041
140411100
ref: 14041
FG
COVER-COMP,MIXING
140411100
€ 61.50
14041A
140411102
ref: 14041A
UK
COVER-COMP,MIXING
140411102
€ 48.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
160071117
€ 16.50
16009
160091621
ref: 16009
NEEDLE-JET,N60U
160091621
€ 26.50
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141064
ref: 16014
SCREW-PILOT AIR
160141064
€ 17.00
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16030A
160301069
ref: 16030A
SEAT VALVE,FLOAT
160301069
€ 38.00
16031
160311070
ref: 16031
FLOAT
160311070
€ 40.50
16035
160351055
ref: 16035
JET-AIR,LEAK
160351055
€ 10.00
16126
161261237
ref: 16126
UK
VALVE,VACUUM
161261237
€ 185.50
16126B
161261249
ref: 16126B
FG
VALVE,VACUUM
161261249
€ 145.50
49019
490193707
ref: 49019
FILTER-FUEL,STRAINER
490193707
€ 7.00
92009
920091549
ref: 92009
SCREW,4X4.4
920091549
€ 3.00
92009A
920091550
ref: 92009A
SCREW,4X8
920091550
€ 2.50
92009B
920091551
ref: 92009B
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92037
16044007
ref: 92037
CLIP, FLOAT VALVE
16044007
€ 4.00
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551425
ref: 92055A
RING-O,VALVE SEAT
920551425
€ 4.50
92055B
920551426
ref: 92055B
RING-O,FLOAT CHAMBER
920551426
€ 13.00
92063
920631330
ref: 92063
JET-MAIN,#150
920631330
€ 9.00
220
220D0408
ref: 220
SCREW-PAN-CROS
220D0408
€ 0.50
220A
220D0410
ref: 220A
UK
SCREW-PAN-CROS
220D0410
€ 2.00
220A
220D0410
ref: 220A
FG
SCREW-PAN-CROS
220D0410
€ 2.00
92063A
920631331
ref: 92063A
JET-MAIN,#152
920631331
€ 9.50
92063B
920631332
ref: 92063B
JET-MAIN,#155
920631332
€ 9.50
92063C
920631344
ref: 92063C
JET-MAIN,#158
920631344
€ 9.50
92063D
920631345
ref: 92063D
JET-MAIN,#160
920631345
€ 9.50
92064
920641119
ref: 92064
JET-PILOT,#38
920641119
€ 12.00
92081
920811761
ref: 92081
SPRING,STARTER PLUNGE
920811761
€ 6.00
92144
921441349
ref: 92144
SPRING,PILOT AIR SCRE
921441349
€ 6.00
92144A
921441535
ref: 92144A
SPRING,THROTTLE VALVE
921441535
€ 13.00
