FRONT HUB
ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG

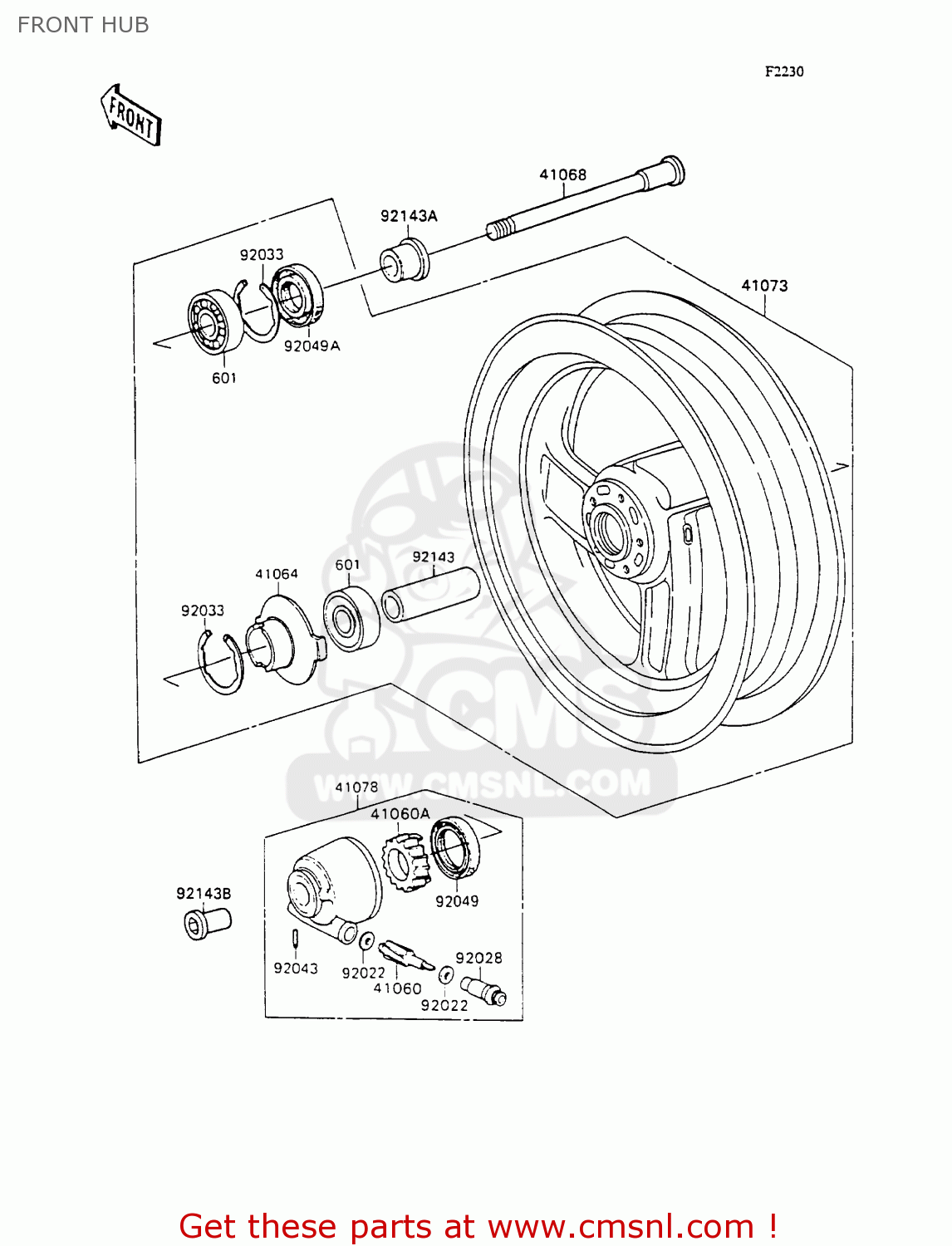

Front hub diagram ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
FRONT HUB ZX1100C2A ZZR1100 1991 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
€ 28.00
41060
410601123
ref: 41060
GEAR-METER SCREW,9T
€ 19.50
41060A
410601135
ref: 41060A
GEAR-METER SCREW,24T
€ 22.00
41064
410641054
ref: 41064
RECEIVER-SPEEDOMETER
€ 8.00
41068
410681311
ref: 41068
AXLE,FR
€ 56.50
41073
410731463GE
ref: 41073
WHEEL-ASSY,FR,G.GRAY
€ 756.50
41078
410781075
ref: 41078
CASE-ASSY-METER GEAR
€ 110.00
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92028
920281066
ref: 92028
BUSHING,SPEEDOMET CAB
€ 7.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491337
ref: 92049A
SEAL-OIL
€ 7.00
92143
921431199
ref: 92143
COLLAR,20.2X29X89
€ 20.00
92143A
921431300
ref: 92143A
COLLAR,FR AXLE,L=19
€ 16.00
92143B
921431301
ref: 92143B
COLLAR,FR AXLE,L=43.5
€ 15.50
