SWING ARM
ZX1100A2 1984 EUROPE UK FR GR IT NR SD

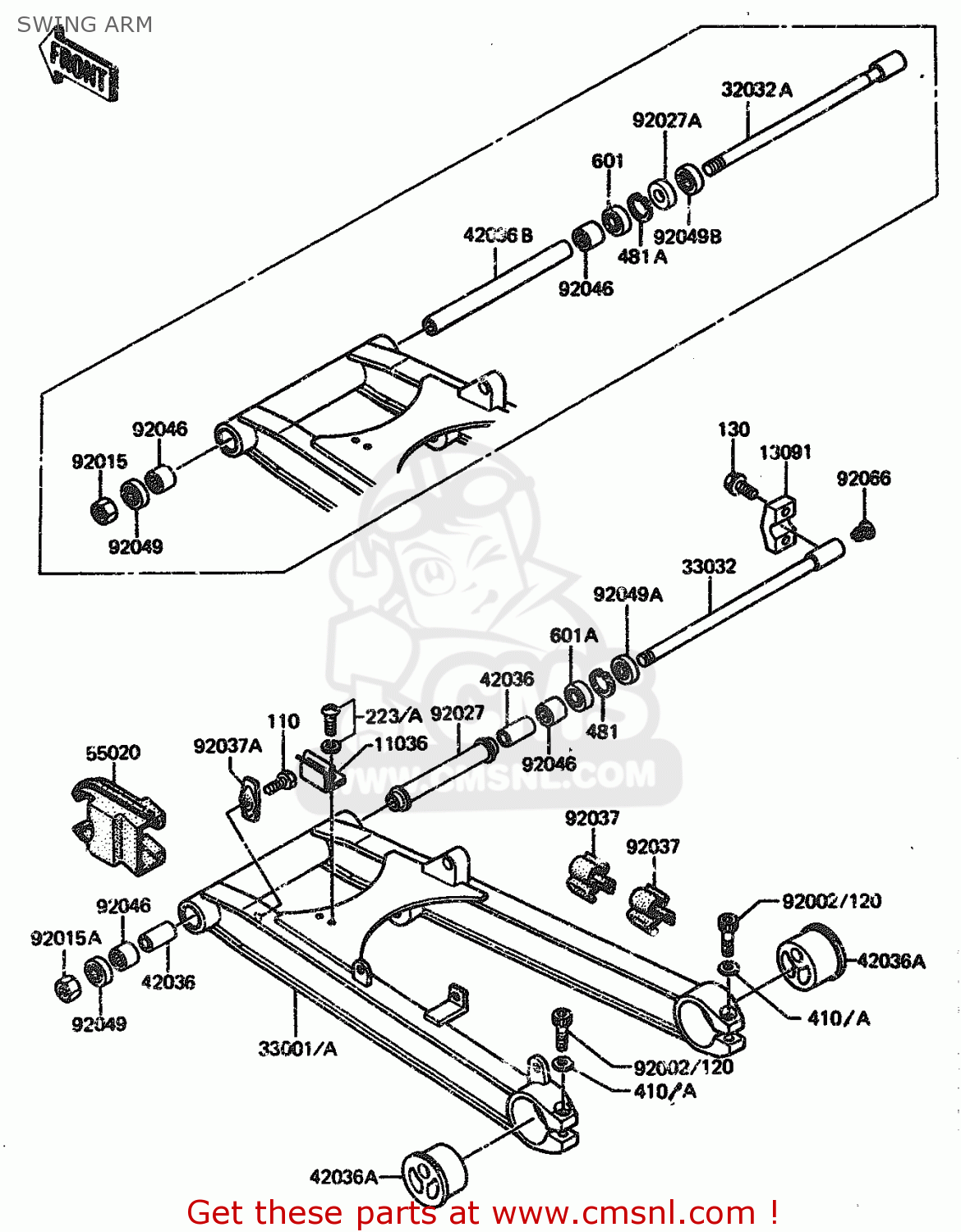

Swing arm diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD
SWING ARM ZX1100A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11036
110361868
ref: 11036
BRACKET-A,CHAIN CASE
€ 1.50
13061
130911180
ref: 13061
HOLDER,SWING ARM SHAF
€ 23.00
33001A
330011213F2
ref: 33001A
ARM-COMP-SWING,G.SILV
€ 848.00
33032A
330321106
ref: 33032A
SHAFT-SWING ARM
€ 45.00
42036A
420361074
ref: 42036A
SLEEVE,SWING ARM
€ 62.50
42036B
420361116
ref: 42036B
SLEEVE,17.1X25X231
€ 47.00
55020
550201100
ref: 55020
GUARD,CHAIN
€ 32.50
92002
920021452
ref: 92002
BOLT
€ 4.00
92015
920151207
ref: 92015
NUT,LOCK,16MM,BLACK
€ 7.50
92027A
920271737
ref: 92027A
COLLAR
€ 7.50
92037
920371392
ref: 92037
CLAMP,BRAKE HOSE
€ 3.50
92037A
920371415
ref: 92037A
CLAMP,CHAIN GARD
€ 2.50
92046
920461035
ref: 92046
920461035
92049
920491060
ref: 92049
920491060
92049B
920491110
ref: 92049B
SEAL-OIL,AG1258A0
€ 6.50
92066
920661125
ref: 92066
PLUG,SWING ARM SHAFT
€ 4.50
110
110B0508
ref: 110
BOLT
€ 0.50
130
130S1030
ref: 130
BOLT-FLANGED,10X30,BL
€ 3.50
223A
223X0508
ref: 223A
SCREW-PAN-WS-CROS
€ 1.50
410A
410E1000
ref: 410A
W-PLAIN-S
€ 0.50
481A
481J4000
ref: 481A
CIRCLIP,40MM
€ 4.00
601
601A6203
ref: 601
BEARING-BALL,#6203
€ 10.50
