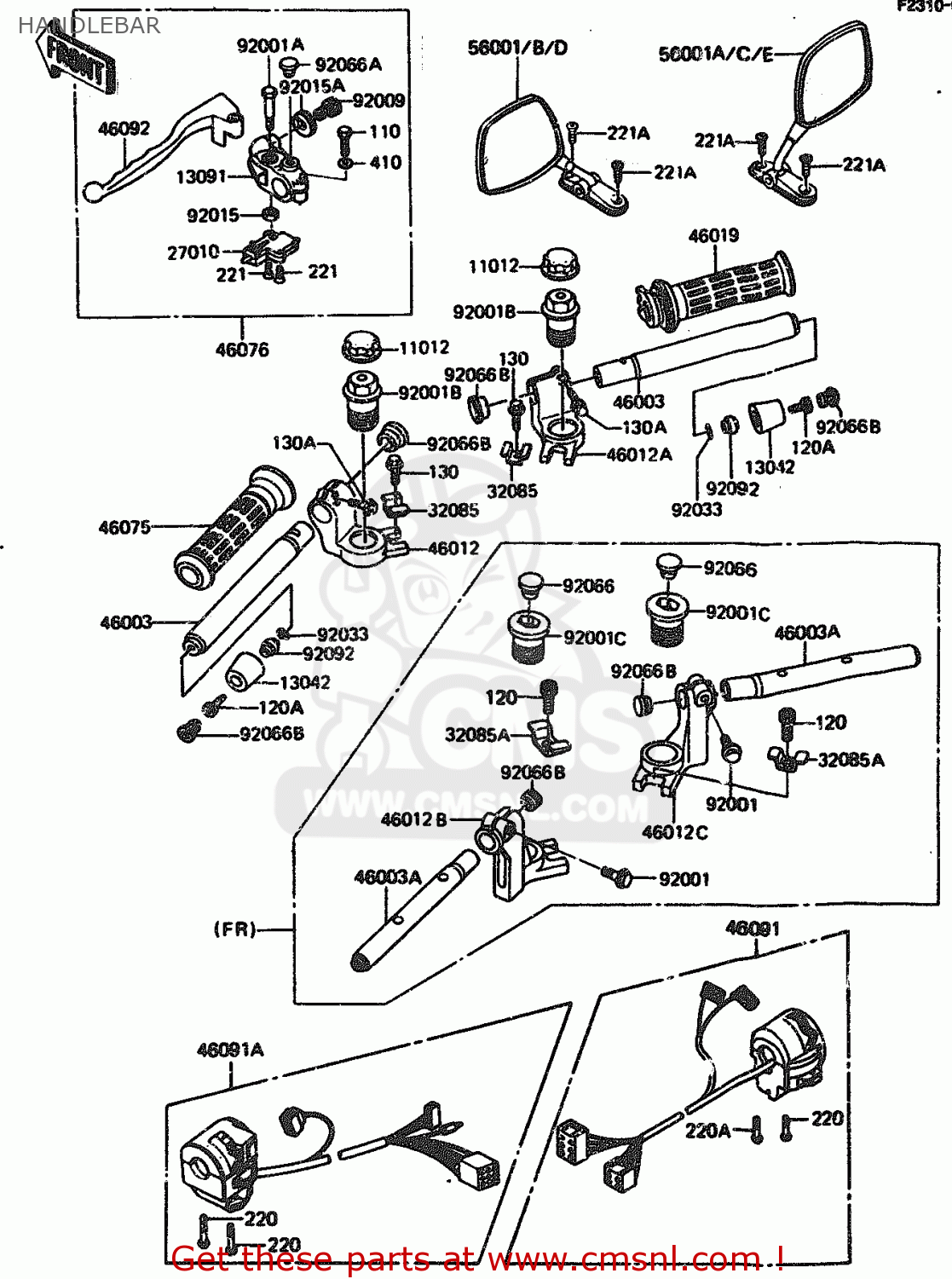

HANDLEBAR

ref

part #

description

quantity

11012

110121250
ref: 11012
EU, GR, IT, NR, SD,

CAP,BOLT,PP,BLACK

€ 9.50

13042

130421006
ref: 13042

WEIGHT,HANDLE

€ 40.50

13091

130911185
ref: 13091

HOLDER,CLUTCH LEVER,F

€ 37.50

27010

270101094
ref: 27010

SWITCH,CLUTCH

€ 20.50

32085

320851092
ref: 32085
EU, GR, IT, NR, SD,

STOPPER,HANDLE HOLDER

€ 9.50

32085A

320851182
ref: 32085A
FR

STOPPER,HANDLE HOLDER

€ 11.50

46003

460031130
ref: 46003
EU, GR, IT, NR, SD,

HANDLE

€ 33.50

46003A

460031158
ref: 46003A
FR

HANDLE

€ 46.50

46012

460121037
ref: 46012
EU, GR, IT, NR, SD,

HOLDER-HANDLE,LH

€ 73.00

46012A

460121038
ref: 46012A
EU, GR, IT, NR, SD,

HOLDER-HANDLE,RH

€ 59.50

46012B

460121103
ref: 46012B
FR

HOLDER-HANDLE,LH

€ 96.50

46012C

460121104
ref: 46012C
FR

HOLDER-HANDLE,RH

€ 93.00

46019

460191021
ref: 46019

GRIP-ASSY,THROTTLE

€ 24.00

46075

460751028
ref: 46075

GRIP,LH

€ 9.00

46076

460761041
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 73.50

46091

460911215
ref: 46091

HOUSING-ASSY-CNTRL,RH

€ 134.00

46091A

460911271
ref: 46091A

HOUSING-ASSY-CONTROL

€ 148.50

46092

460921050
ref: 46092

LEVER-GRIP,CLUTCH,BLA

€ 13.50

56001

560011142
ref: 56001
FR, UK

MIRROR-ASSY,LH

€ 58.50

56001A

560011143
ref: 56001A
FR, UK

MIRROR-ASSY,RH

€ 61.50

56001B

560011144
ref: 56001B
EU, GR, NR, SD, ST,

MIRROR-ASSY,LH

€ 58.50

56001C

560011145
ref: 56001C
EU, GR, NR, SD, ST,

MIRROR-ASSY,RH

€ 61.50

56001D

560011146
ref: 56001D
IT

MIRROR-ASSY,LH

€ 61.50

56001E

560011147
ref: 56001E
IT

MIRROR-ASSY,RH

€ 58.50

92001

920011508
ref: 92001
FR

BOLT,FLANGED,8X28,BLA

€ 3.00

92001A

920011548
ref: 92001A

BOLT,CLUTCH LEVER,BLA

€ 5.50

92001B

920011845
ref: 92001B

BOLT,FLANGED,32X35,BL

€ 33.50

92001C

920011912
ref: 92001C
FR

BOLT,HANDLE HOLDER,BL

€ 29.50

92009

920091134
ref: 92009

SCREW,CBL ADJUST,8MM

€ 10.50

92015

920151191
ref: 92015

NUT,LOCK,6MM,BLACK

€ 2.00

92015A

920151197
ref: 92015A

NUT,CABLE ADJUST LOCK

€ 6.50

92033

920331102
ref: 92033

RING-SNAP,OD=22.2

€ 2.50

92066

920661018
ref: 92066
FR

PLUG,END,17.5MM

€ 2.50

92066A

920661077
ref: 92066A

CAP,REAR VIEW MIRROR

€ 3.00

92066B

920661124
ref: 92066B

PLUG,HANDLE

€ 4.00

92092

920921018
ref: 92092

BUSHING-RUBBER,HANDLE

€ 10.50

110

110C0622
ref: 110

BOLT,6X22,BLACK

€ 3.00

120

120P0616
ref: 120
FR

BOLT,SOCKET,6X16

€ 1.50

120A

120P0825
ref: 120A

BOLT,SOCKET,8X25

€ 1.50

130

130J0616
ref: 130
EU, GR, IT, NR, SD,

BOLT-FLANGED,6X16

€ 1.50

130A

130S0825
ref: 130A
EU, GR, IT, NR, SD,

BOLT-FLANGED,8X25,BLA

€ 2.00

220

220B0535
ref: 220

SCREW-PAN-CROS

€ 2.00

220A

220B0540
ref: 220A

SCREW-PAN-CROS

€ 2.00

221

221C0316
ref: 221

SCREW-CSK-CROS

€ 2.50

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00

410

410F0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50

all assemblies
