ENGINE COVER
ZX1100A2 1984 EUROPE UK FR GR IT NR SD

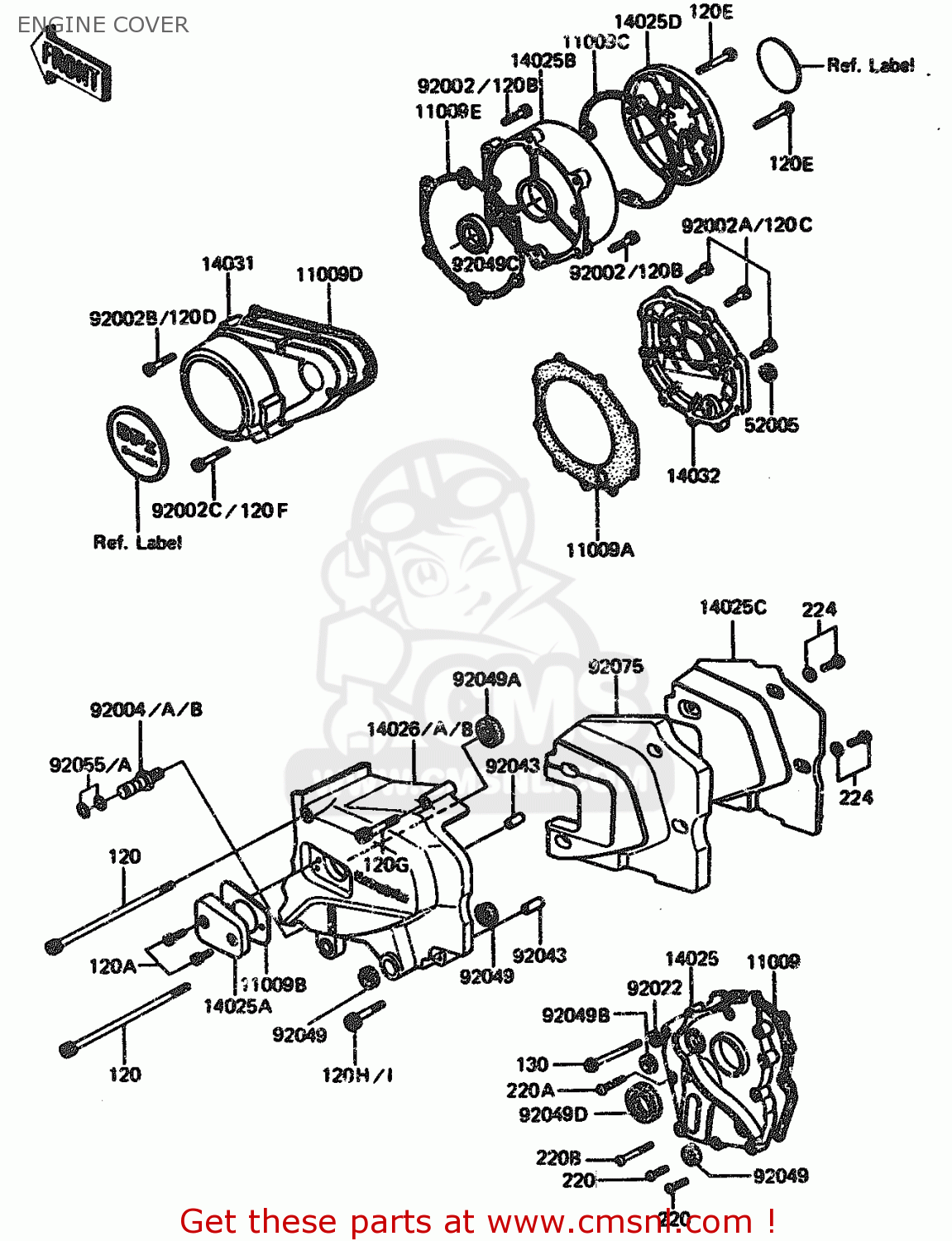

Engine cover diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD
ENGINE COVER ZX1100A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091163
ref: 11009
GASKET,MISSION COV (MCA)
€ 12.00
11009A
110091210
ref: 11009A
GASKET,CLUTCH COVER (MCA)
€ 20.50
11009B
110091211
ref: 11009B
GASKET,CLUTCH ADJ COV (MCA)
€ 3.50
11009C
110091220
ref: 11009C
GASKET,PULSING COIL C (MCA)
€ 9.00
11009D
14045014
ref: 11009D
GASKET-L.H ENG COVER (MCA)
€ 15.00
11009E
14046023
ref: 11009E
GASKET R.H ENG COVER (MCA)
€ 10.50
14025
140251240
ref: 14025
TRANSMISSION COVER
€ 103.50
14025A
140251409
ref: 14025A
COVER,CLUTCH RELEASE,
€ 19.50
14025B
140251609
ref: 14025B
COVER,ENGINE,RH,BLACK
€ 98.00
14025C
140251638
ref: 14025C
COVER,SOUND ARRESTER
€ 12.00
14025D
140251671
ref: 14025D
COVER,PULSING COIL,BL
€ 50.00
14026A
140261105
ref: 14026A
COVER-CHAIN,BLACK
€ 150.00
14031
140311117
ref: 14031
COVER-GENERATOR,BLACK
€ 193.00
14032
140321112
ref: 14032
COVER-CLUTCH,BLACK
€ 145.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92002
920021092
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021093
ref: 92002A
BOLT,6X25
€ 3.00
92002B
920021095
ref: 92002B
BOLT,6X30
€ 2.50
92002C
920021097
ref: 92002C
BOLT,6X40
€ 1.00
92004B
920041123
ref: 92004B
STUD,CHANGE PEDAL PIV
€ 10.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92049004
ref: 92049
OIL SEAL SB12205
€ 6.00
92049A
920491003
ref: 92049A
OIL SEAL,CLUTCH
€ 8.00
92049B
920491017
ref: 92049B
SEAL-OIL,SD-8187
€ 6.50
92049C
920491033
ref: 92049C
OIL SEAL,SC32487
€ 12.00
92049D
920491070
ref: 92049D
SEAL-OIL,AE2343F0
€ 11.50
92055
92055099
ref: 92055
O RING, 8.8MM
€ 3.00
92075
920751444
ref: 92075
DAMPER,SOUND
€ 22.00
120
120S06125
ref: 120
BOLT-SOCKET,6X125,BLA
€ 9.50
120A
120S0614
ref: 120A
BOLT-SOCKET,6X14,BLAC
€ 2.50
120E
120S0635
ref: 120E
BOLT-SOCKET
€ 1.00
120G
120S0670
ref: 120G
BOLT-SOCKET,6X70,BLAC
€ 3.50
120H
120S0680
ref: 120H
BOLT-SOCKET,6X80,BLAC
€ 2.50
130
130G0635
ref: 130
BOLT, FLANGED, 6X35
€ 0.50
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
220A
220B0628
ref: 220A
SCREW-PAN HEAD,6X28
€ 2.50
220B
220B0640
ref: 220B
SCREW-PAN HEAD,6X40
€ 2.00
224
224B0612
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
