BATTERY CASE
ZX1100A2 1984 EUROPE UK FR GR IT NR SD

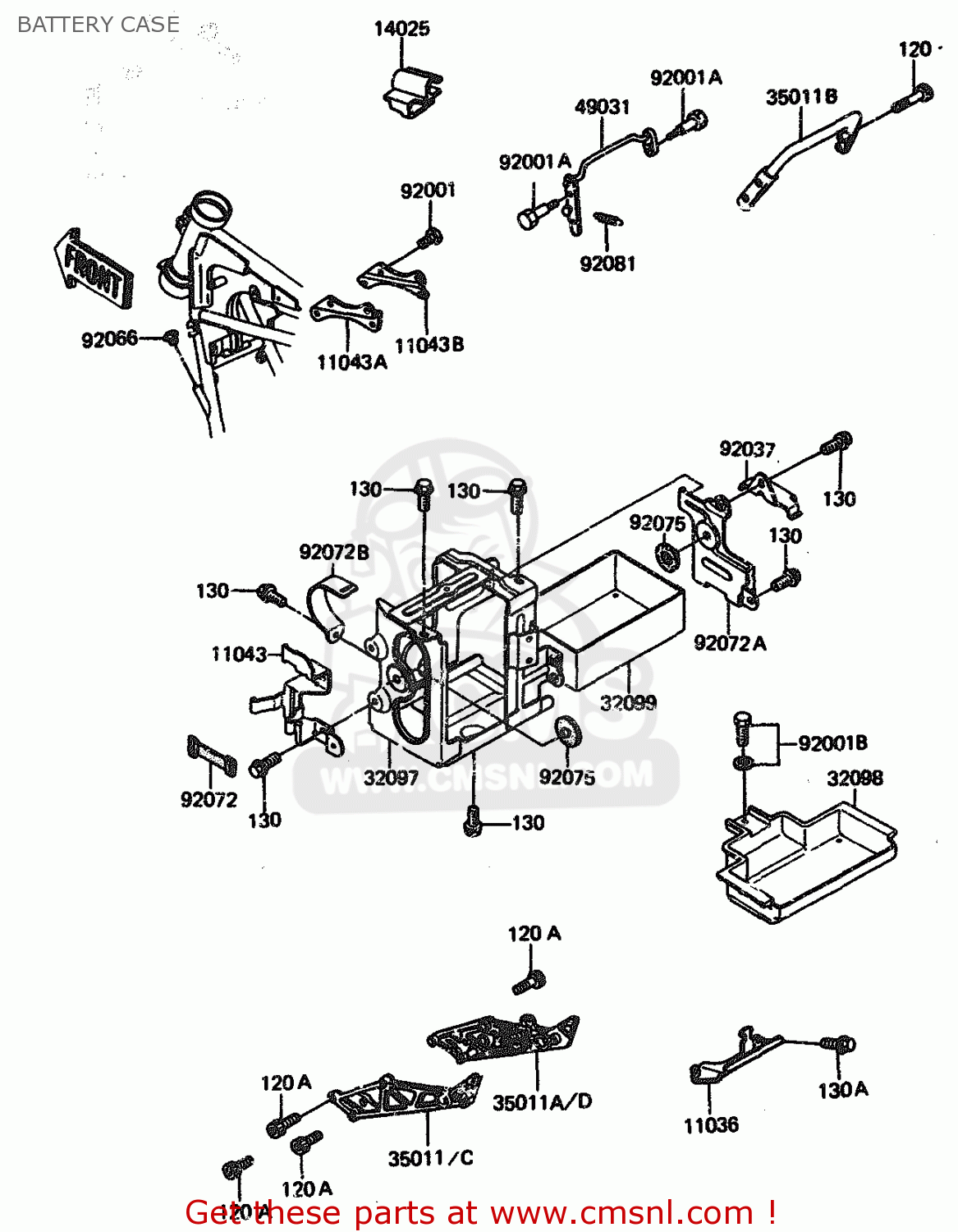

Battery case diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD
BATTERY CASE ZX1100A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11036
110361972
ref: 11036
BRACKET-A,FENDER
€ 16.00
11043
110431034
ref: 11043
BRACKET-B,FUEL FILTER
€ 13.00
11043A
110431160
ref: 11043A
BRACKET-B,COIL,LH
€ 4.50
11043B
110431161
ref: 11043B
BRACKET-B,COIL,RH
€ 4.00
14025
140251762
ref: 14025
COVER,BATTERY
€ 7.50
32097
320971067
ref: 32097
CASE-BATTERY
€ 53.50
32098
320981025
ref: 32098
CASE-TOOL
€ 24.00
32099
320991009
ref: 32099
CASE
€ 10.50
35011B
350111201
ref: 35011B
STAY,GRAB RAIL
€ 134.50
35011C
350111212
ref: 35011C
STAY,MUFFLER,LH
€ 241.50
35011D
350111213
ref: 35011D
STAY,MUFFLER,RH
€ 205.50
49031
490311007
ref: 49031
LATCH, SEAT LOCK
€ 9.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92001A
920011406
ref: 92001A
BOLT
€ 5.50
92001B
920011774
ref: 92001B
BOLT,6X22
€ 2.00
92037
920371398
ref: 92037
CLAMP,IGNITER
€ 4.00
92066
920661077
ref: 92066
CAP,REAR VIEW MIRROR
€ 3.00
92072
920721017
ref: 92072
BAND,L=45
€ 7.50
92072A
920721101
ref: 92072A
BAND,BATTERY
€ 13.00
92072B
920721102
ref: 92072B
BAND,FUEL PUMP
€ 3.00
92075
92075078
ref: 92075
DAMPER,RUBBER
€ 2.50
92081
920811544
ref: 92081
SPRING,SEAT LOCK
€ 3.50
120
120S0645
ref: 120
BOLT-SOCKET,6X45,BLAC
€ 2.50
120A
120S0830
ref: 120A
BOLT-SOCKET,8X30,BLAC
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
€ 0.50
130A
130B0812
ref: 130A
BOLT,FLANGED,8X12
€ 0.50
