CHANGE DRUM/SHIFT FORK

ZX1100A2 1984 EUROPE UK FR GR IT NR SD

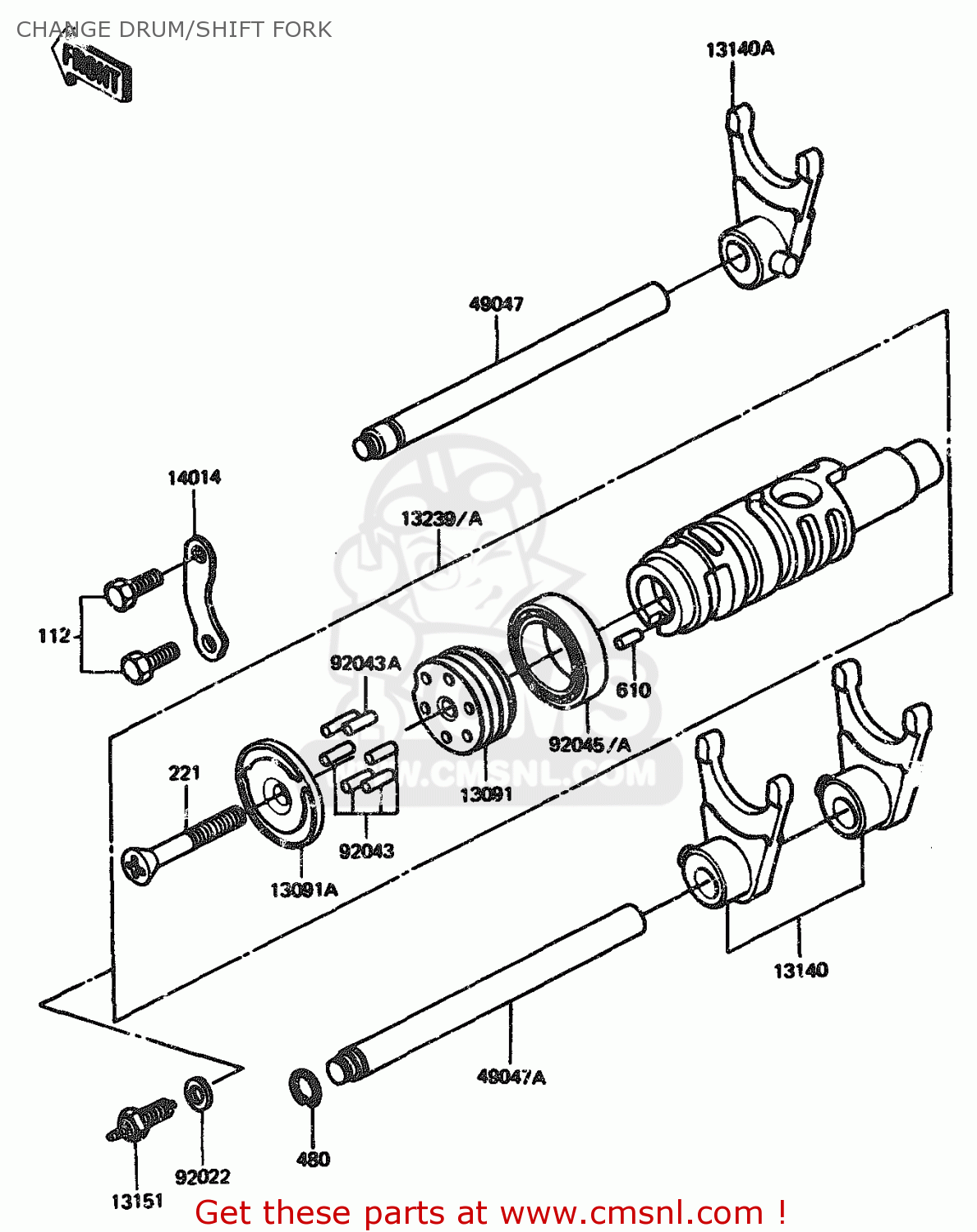

Change drum/shift fork diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

13091

130911087
ref: 13091

HOLDER,CHANGE DRUM PI

€ 36.00

13091A

130911088
ref: 13091A

HOLDER,CHANGE DRUM PI

€ 18.50

13140

131401045
ref: 13140

FORK-SHIFT

€ 88.00

13140A

131401046
ref: 13140A

FORK-SHIFT

€ 67.50

13151

131511010
ref: 13151

SWITCH-COMP,NEUTRAL

€ 17.50

13239A

132391107
ref: 13239A

DRUM-ASSY-CHANGE

€ 160.50

14014

140141015
ref: 14014

PLATE-POSITION

€ 3.50

49047

490471014
ref: 49047

ROD-SHIFT

€ 23.50

49047A

490471019
ref: 49047A

ROD-SHIFT

€ 27.50

92022

920221211
ref: 92022

WASHER,12X18X1.0

€ 2.50

92042

92042014
ref: 92042

PIN-GEAR CHANGE DRUM

€ 0.50

92043A

92042020
ref: 92043A

PIN-GEAR CHANGE DRUM

€ 3.00

92045A

920451152
ref: 92045A

BEARING-BALL,6806

€ 47.00

112

112G0616
ref: 112

BOLT UPSET,6X16

€ 1.00

221

221B0645
ref: 221

SCREW-CSK-CROS,6X45

€ 2.50

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

610

610A0410
ref: 610

ROLLER,4X10

€ 2.50

CHANGE DRUM/SHIFT FORK

all assemblies
