STARTER MOTOR
ZX1100A2 1984 EUROPE UK FR GR IT NR SD

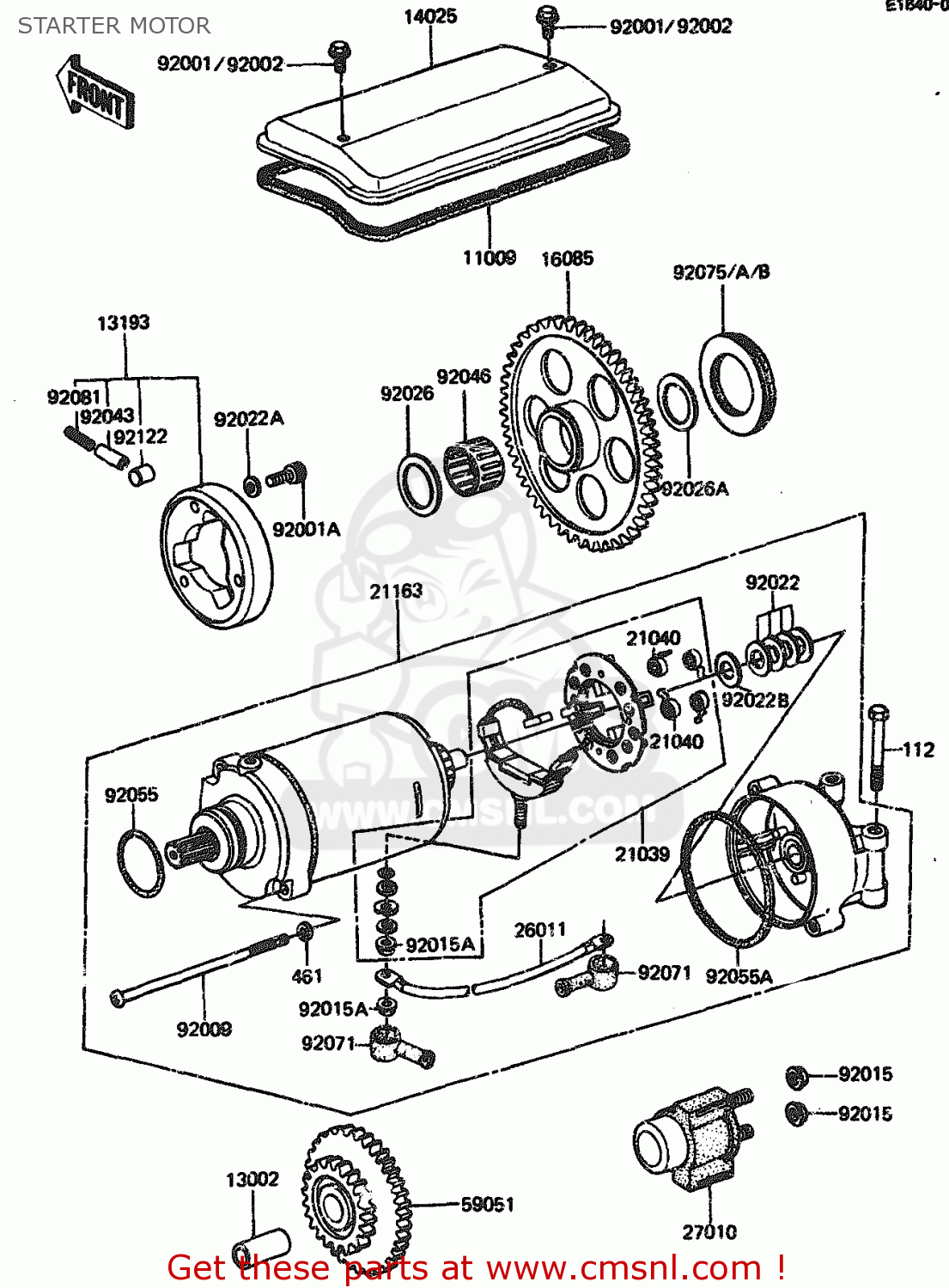

Starter motor diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD
STARTER MOTOR ZX1100A2 1984 EUROPE UK FR GR IT NR SD
×
prices are in EUR
ref
part #
description
quantity
11009
21166001
ref: 11009
GASKET,STARTER COVER (NAS)
€ 23.50
13002
13002007
ref: 13002
PIN
€ 13.00
13193
131931011
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 122.00
14025
140251378
ref: 14025
COVER,STARTER,BLACK
€ 27.00
16085
160851012
ref: 16085
GEAR,STARTER CLUTCH
€ 180.50
21039
210391006
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21163
211631031
ref: 21163
STARTER-ELECTRIC
€ 427.50
26011
260111251
ref: 26011
WIRE-LEAD,STARTER MOT
€ 55.50
27010
270101075
ref: 27010
SWITCH STARTER
€ 51.50
59051
21167002
ref: 59051
GEAR-STARTING MOTOR
€ 89.00
92001A
92003104
ref: 92001A
BOLT-HEX HEAD,8X16
€ 2.50
92002
920021098
ref: 92002
BOLT,6X10
€ 2.00
92009
21015005
ref: 92009
SCREW-PAN HEAD,6X110
€ 5.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151195
ref: 92015A
NUT,FLANGED,6MM
€ 1.50
92024
21025011
ref: 92024
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221108
ref: 92022A
WASHER,8.5X13.5X2
€ 2.50
92022B
920221132
ref: 92022B
WASHER,9.1X18X0.8
€ 4.00
92026
920261031
ref: 92026
SPACER,(I=25,O=38)
€ 7.00
23026A
920261033
ref: 23026A
SPACER,25X34X2.0
€ 4.50
92043
92043087
ref: 92043
PIN
€ 8.00
92046
920461022
ref: 92046
BEARING-NEEDLE,K25302
€ 24.50
92055
21027004
ref: 92055
ORING-STARTING MOTR
€ 6.50
92055A
920551086
ref: 92055A
O RING,64MM
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
920751129
ref: 92075
DAMPER,T=6.3
€ 18.00
92075A
920751130
ref: 92075A
DAMPER,T=7.3
€ 15.00
92075B
920751131
ref: 92075B
DAMPER,T=8.3
€ 13.50
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122001
ref: 92122
ROLLER,15X14.4
€ 7.50
112
112B0655
ref: 112
BOLT-UPSET,6X55
€ 3.00
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
