FRAME

ZX1100A2 1984 EUROPE UK FR GR IT NR SD

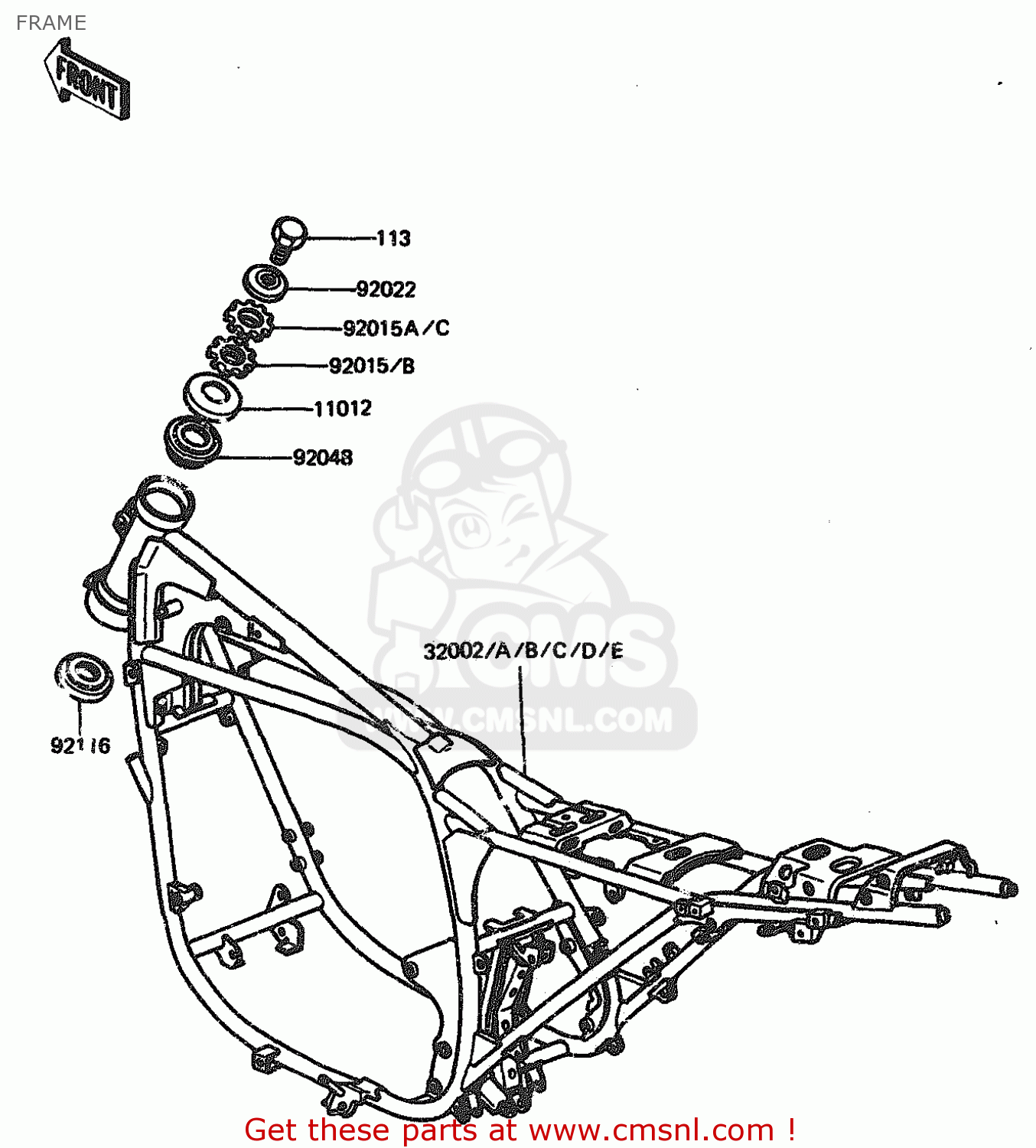

Frame diagram ZX1100A2 1984 EUROPE UK FR GR IT NR SD

prices are in EUR

ref

part #

description

quantity

11012

46098017
ref: 11012

CAP,STEERING STEM

€ 4.00

32002C

320021744
ref: 32002C
EU, FR, GR, IT, NR,

FRAME-COMP

€ 1,316.50

32002D

320021746
ref: 32002D
WG

FRAME-COMP

€ 1,301.00

32002E

320021747
ref: 32002E
SD

FRAME-COMP

€ 1,301.00

92015B

920151377
ref: 92015B

NUT,25MM,T=10

€ 18.50

92015C

920151378
ref: 92015C

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50
