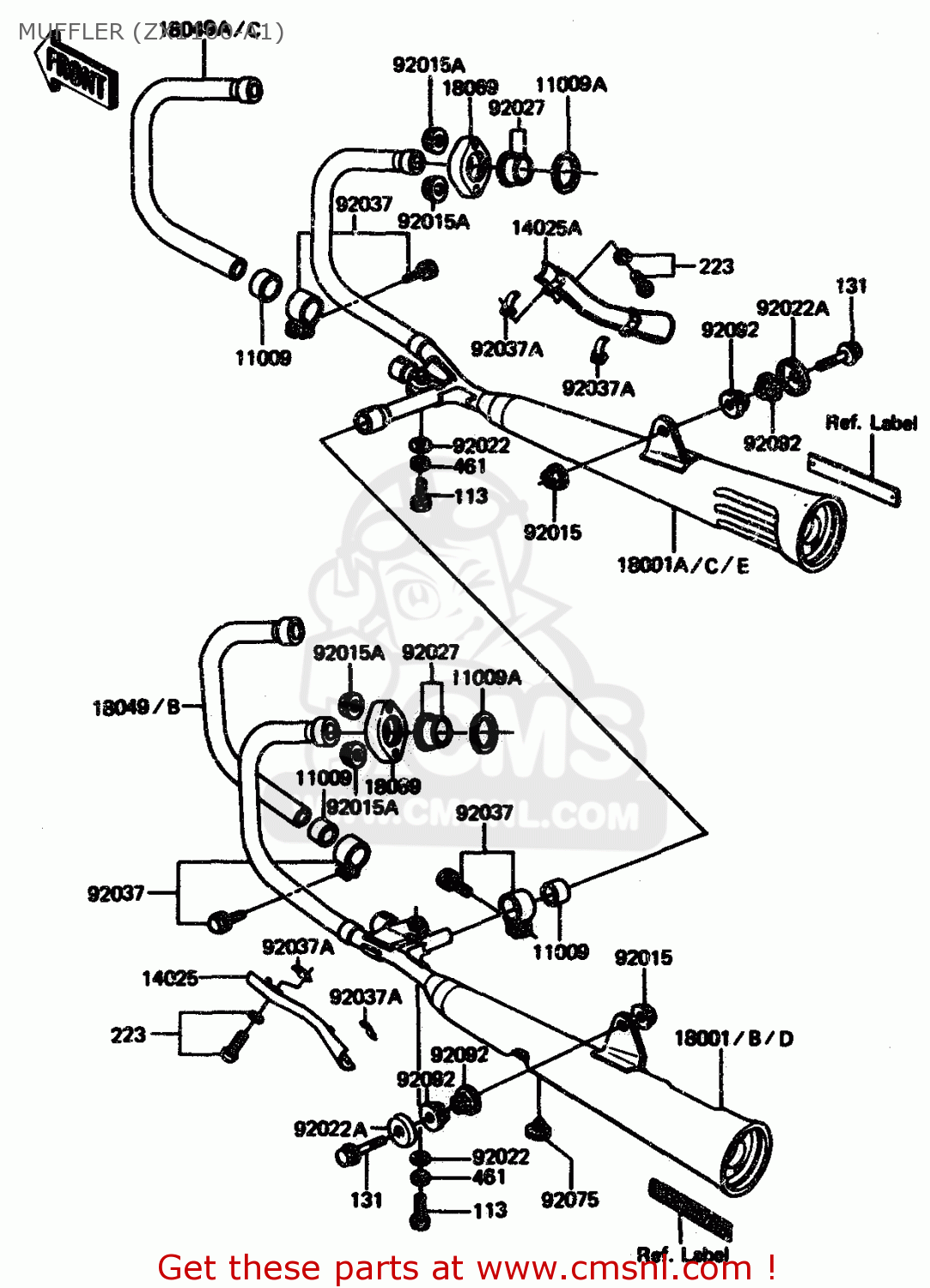

MUFFLER (ZX1100-A1)

ref

part #

description

quantity

11009

110091002
ref: 11009

GASKET,EXH PIPE CONT (MCA)

€ 20.50

11009A

18067018
ref: 11009A

GASKET-EXHAUST PIPE

€ 7.00

14025

140251647
ref: 14025

COVER,MUFFLER,LH,BLAC

€ 29.00

14025A

140251648
ref: 14025A

COVER,MUFFLER,RH,BLAC

€ 71.00

18001

180015105
ref: 18001
EU FR, IT, NR, UK, W

MUFFLER,LH,BLACK,W/MA

€ 745.50

18001A

180015106
ref: 18001A
EU, FR, IT, NR, UK,

MUFFLER,RH,BLACK,W/MA

€ 745.50

18001B

180015107
ref: 18001B
SD

MUFFLER,LH,BLACK,W/MA

€ 303.00

18001C

180015108
ref: 18001C
SD

MUFFLER,RH,BLACK,W/MA

€ 307.00

18001D

180015109
ref: 18001D
ST

MUFFLER,LH,BLACK.W/M

€ 518.50

18001E

180015110
ref: 18001E
ST

MUFFLER,RH,BLACK,W/M

€ 274.50

18049

180491210
ref: 18049
EU, FR, IT, NR, SD,

PIPE-EXHAUST,#2,BLACK

€ 152.00

18049A

180491224
ref: 18049A
EU, FR, IT, NR, SD,

PIPE-EXHAUST,#3,BLACK

€ 152.00

18049B

180491269
ref: 18049B
ST

PIPE,EXHAUST,2,BLACK

€ 59.00

18049C

180491270
ref: 18049C
ST

PIPE-EXHAUST,3,BLACK

€ 59.00

18069

180691019
ref: 18069

HOLDER-EXHAUST PIPE,B

€ 20.50

92015

920151172
ref: 92015

NUT,FLANGED,10MM

€ 3.00

12015A

920151302
ref: 12015A

NUT,8MM

€ 2.50

92022

920221022
ref: 92022

WASHER,10.5X22X4.5

€ 3.00

92022A

920221355
ref: 92022A

WASHER

€ 3.50

92027

920271457
ref: 92027

COLLAR,EXHAUST PIPE,B

€ 3.50

92037

920371270
ref: 92037

CLAMP,MUFFLER,BLACK

€ 13.50

92037A

920371319
ref: 92037A

CLAMP,MUFFLER COVER

€ 7.50

92075

92075013
ref: 92075

DAMPER

€ 3.00

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

113

113B1070
ref: 113

BOLT-HEX HEAD

€ 7.00

131

131J1055
ref: 131

BOLT-FLANGED,10X55,BL

€ 4.00

223

223C0620
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50
